Page 12

Rosen Aviation Displays

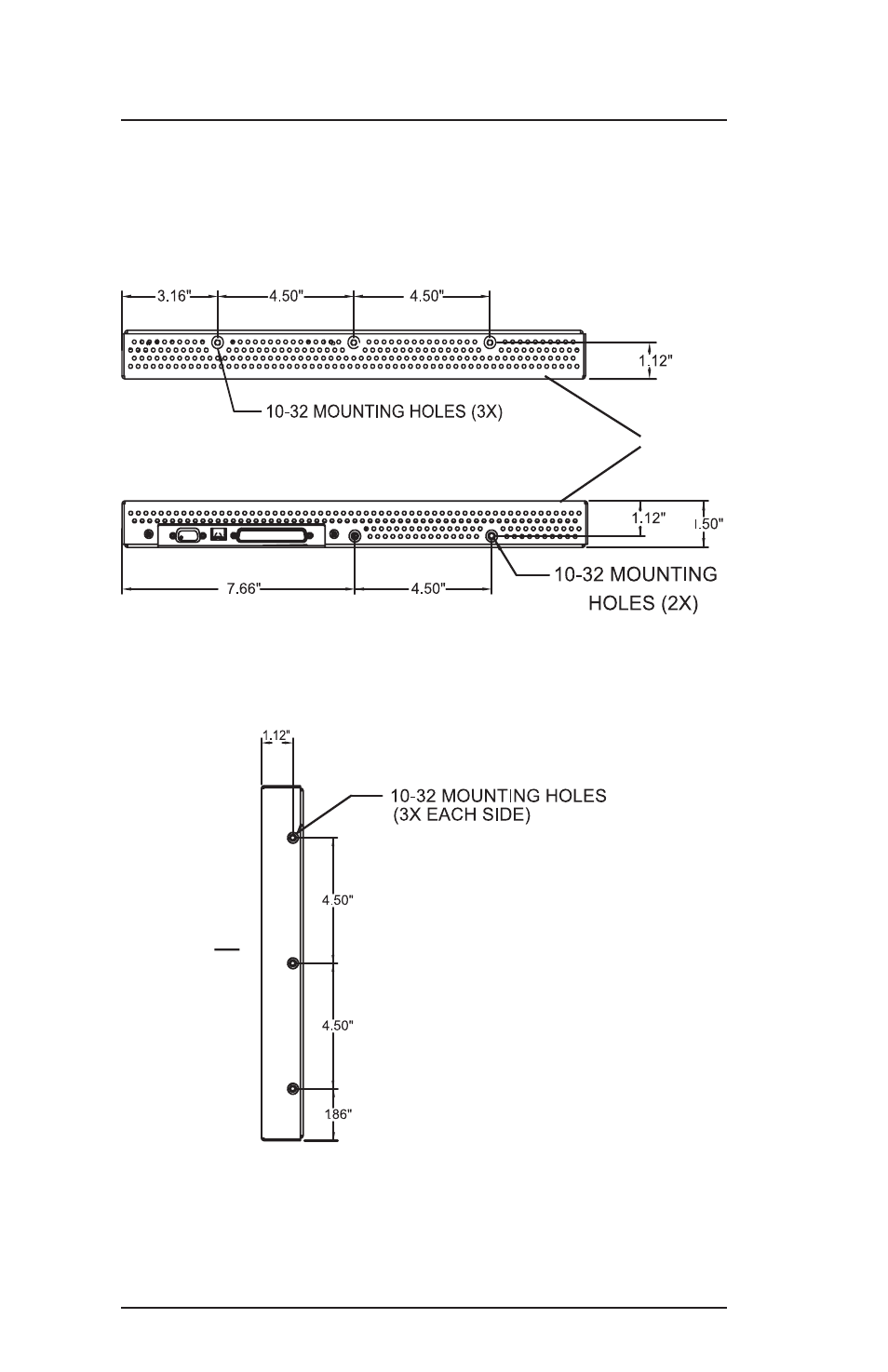

Installation Guidelines

Installation Guidelines

The monitor can be mounted from any combination of two

sides.

Display Sides

Display Bottom

Display Top

FRONT

FRONT

( Dimensions in inches)
