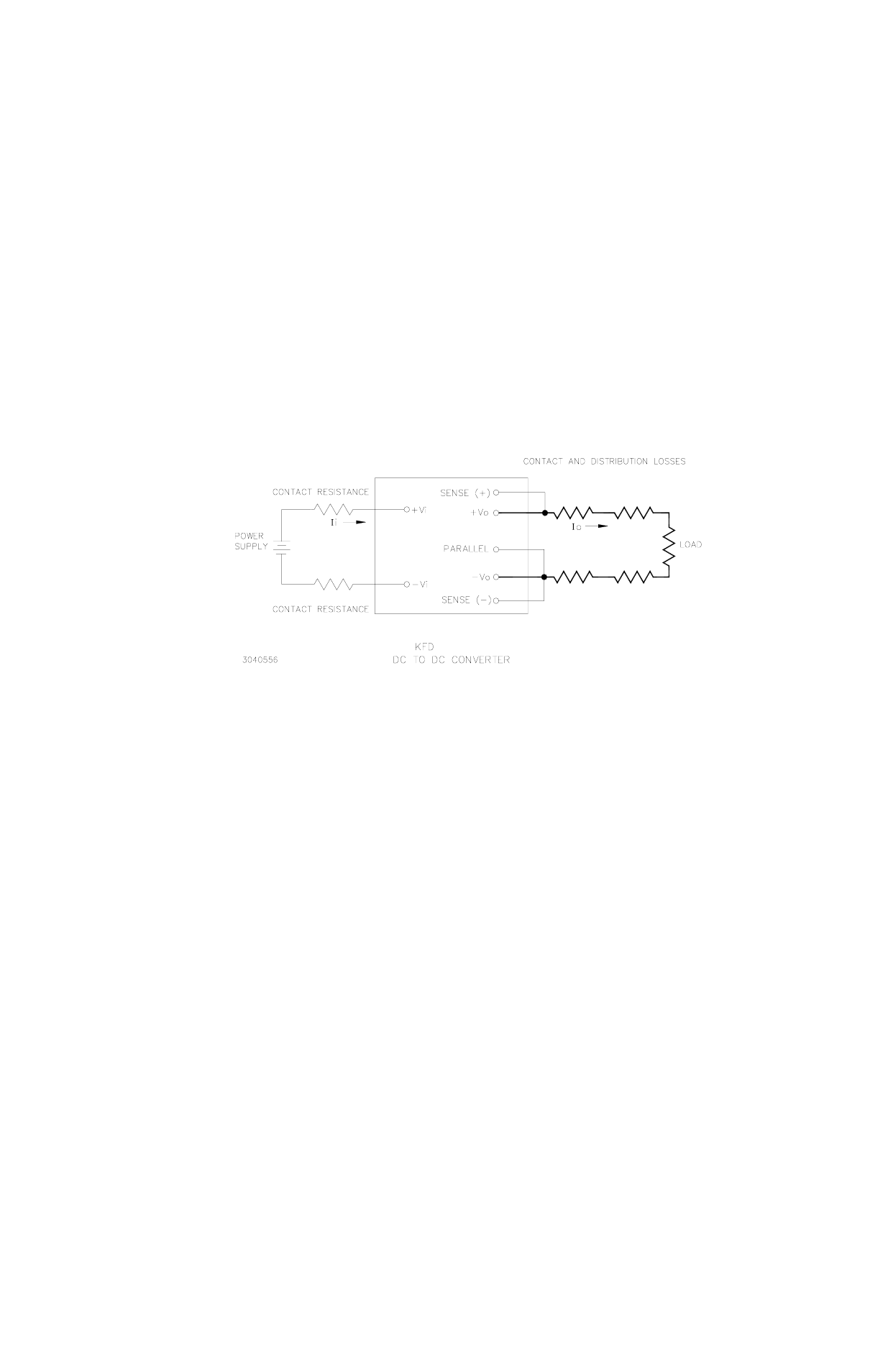

FIGURE 1 TEST SETUP FOR OUTPUT VOLTAGE AND EFFICIENCY
MEASUREMENTS FOR THE DC TO DC CONVERTER
NOTE: WHEN PLACING THE POWER MODULE INTO A PRINTED CIRCUIT BOARD
SOCKET, USE KELVIN CONNECTIONS AT THE POWER MODULE INPUT
AND OUTPUT TERMINALS TO AVOID MEASUREMENT ERRORS DUE TO
SOCKET CONTACT RESISTANCE.
