supply output to be programmed to the settings stored in the Trigger Voltage and Trigger Cur-
rent displays. .

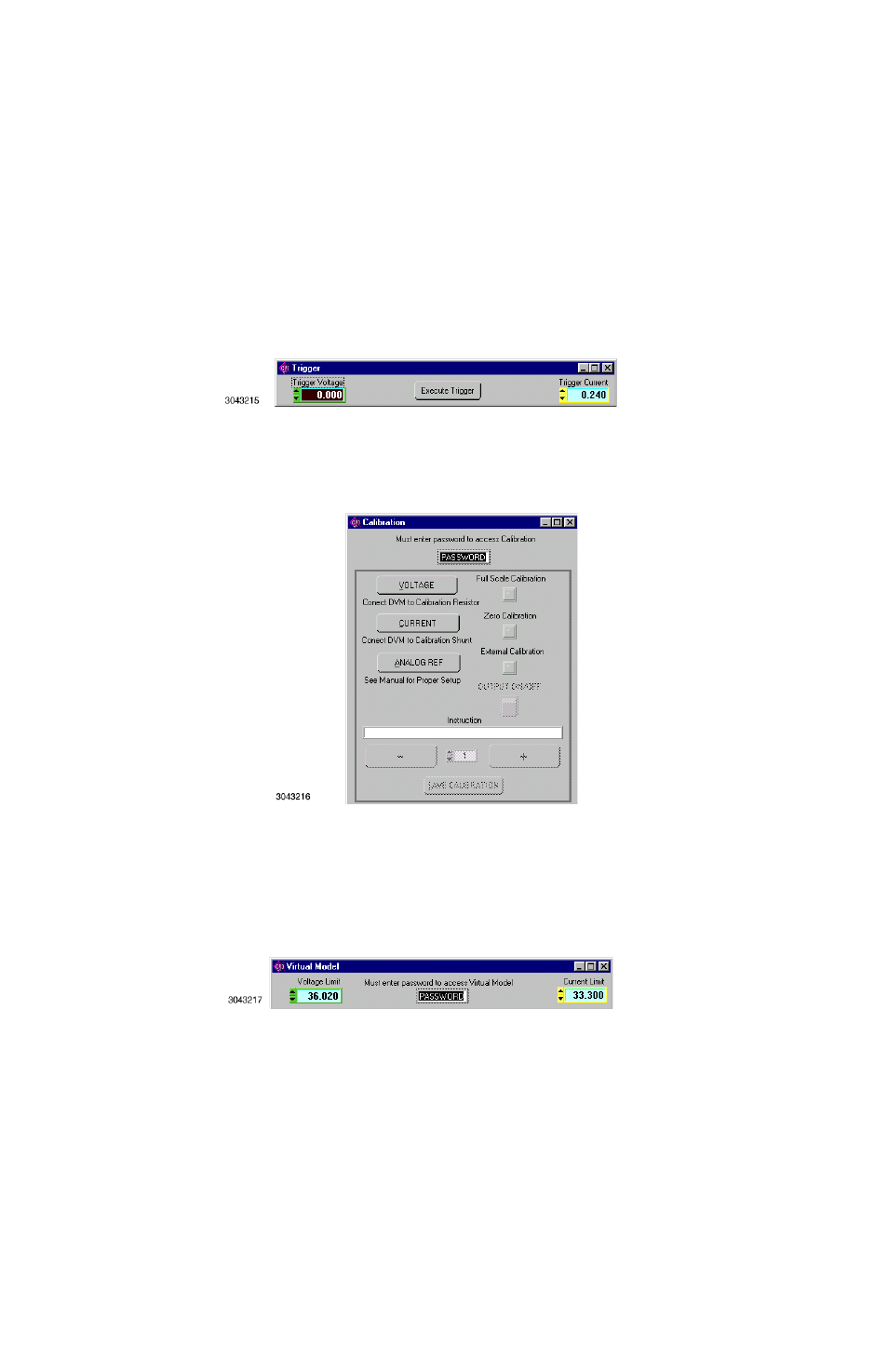

FIGURE 5-8. TRIGGER WINDOW

The Calibrate button opens the Calibration Window (Figure 5-9), and is used to recalibrate the
unit (see Section 4 of the KLP User Manual).

FIGURE 5-9. CALIBRATION WINDOW

The ABOUT button displays the model, serial number, firmware version number and driver ver-
sion number. Click OK to close the window

The Virtual Model button opens the Virtual Model window (Figure 5-10). The Unit Password
must be entered, then the voltage and current limits for a virtual model can be set.

FIGURE 5-10. VIRTUAL MODEL WINDOW
