Update the FC Firmware 3-7
Ver. 2.0 Copyright © 2005-2006 by LSI Logic Corporation. All rights reserved.
3.3.3 Command Line Update Tool for DOS
Using a DOS bootable floppy, users can use a FC Flash Utility called
MPTUtil to update LSI Logic adapters with new firmware ( Section 3.2,
“Download New FC Firmware,” on page 3-3 ). This section provides the
procedure for operating this program.
Note: The MPTUtil program will not operate properly from a
windows command window. It must be run from a DOS
floppy.
Running the MPTUtil Program – Use the MPTUtil program to update
the LSI Logic FC firmware on any 4 Gbit/s host adapter. Locate the
MPTUtil.exe program and FC949X.ROM code on your distribution media,
as well as the DOS4GW.exe file. Copy these files to a blank, formatted
diskette. Label it “FC Firmware diskette.”
To update the firmware, complete the following steps:
Step 1. Ensure that the host adapter is properly installed in the system
PCI slot.
Step 2. Insert the LSI Logic FC firmware diskette into drive A:.
Step 3. Boot the system to the DOS prompt A:\>.
Step 4. Execute the MPTUtil program directly from the DOS command
line by typing at the prompt:
A:\ MPTutil
The MPTUtil program identifies all LSI Logic host adapters in the
system, and allows you to select which adapter to update (
Figure 3.4 ).

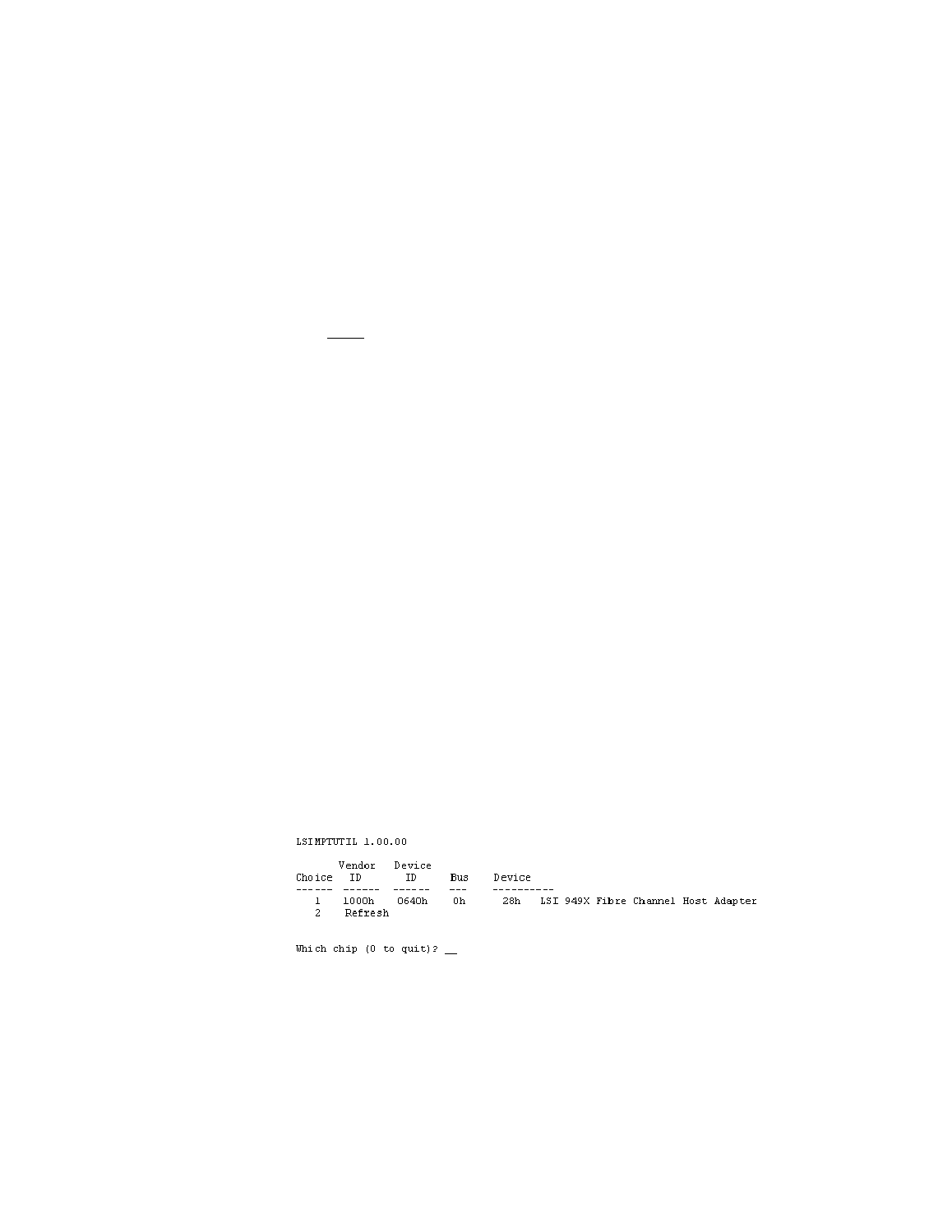

Figure 3.4 MPTUtil Device Selection
Step 5. The MPTUtil program displays a menu of options ( Figure 3.5 ).
