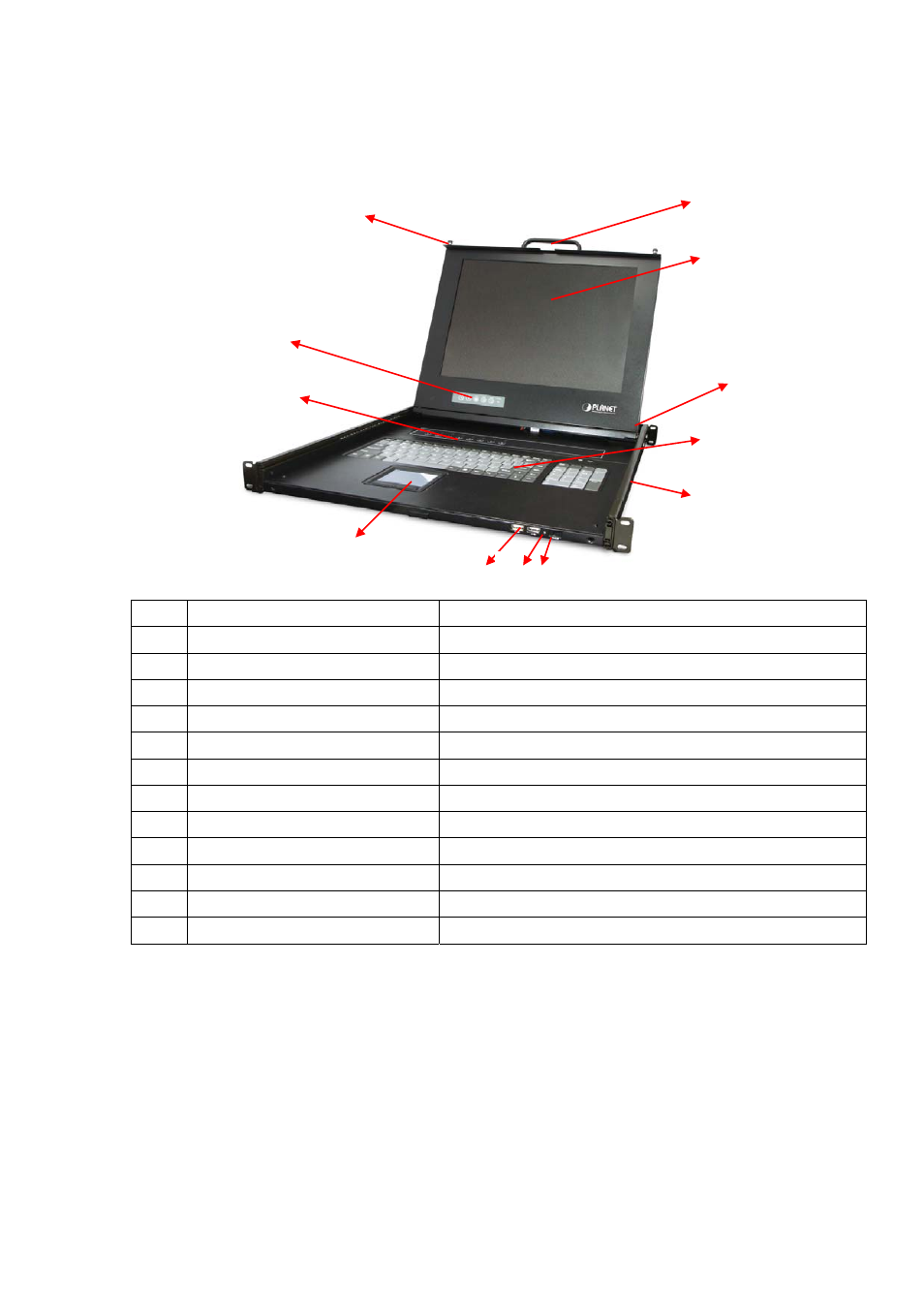

2.3 LCD Components
1
2
No. Component Function Description
1 Handle Holder Pull to Slide the LCD console in or out
2 LCD Display Panel Display
3 LCD Panel OSD Buttons Controls Display Required Quality
4 LED Indicators Switching Operation for KVM Module ( Optional )
5 Slide Rail Single Slide Rail
6 USB Ports x 2 (K/B, Mouse) Plug-in external K/B and Mouse.
7 Power LED Indicates Power Status
8 Power Switch Turn on / Turn off
9 Touch Pad Mouse Operation
10 Keyboard Module Keyboard Operation
11 LCD Lock Screws Fix or Release LCD panel
12 8/ 16 ports KVM Modular KVM for 8/ 16 ports
