1. Antennas - The antenna mountings allow
full rotation for optimum placement. In
normal operation, both antennas should
be placed in a vertical position. Both
antennas can be folded inward for
convenience when transporting the
AR299m.
2. SCAN Button - Press this button for more
than 2 seconds to enter scan mode, the
display will flash quickly. The receiver
will scan through the 100 operating
channels to find the optimal channel
for performance. Once the scan is
complete, the AR299m will enter IR Set
mode and send the selected channel to
the transmitter.
NOTE - Press and hold
the button for more than 10 seconds to
enter manual channel selection IR set
mode, the display will flash slowly. This
will send the receiver’s current selected
channel to the transmitter.
3. LED Display - The two digit, 7-segment LED display shows the receiver’s current operating
channel.
4. READY Indicator - This indicator lights green when the AR299m is receiving RF signal and
the system is ready to use.
5. IR Transmitter - During “IR SET” an infrared light is used to set the transmitter channel.
6. PEAK Indicator - This indicator lights red when the transmitted audio signal is overloaded.
7. VOLUME / Power Control - This rotary knob controls the level of the receiver output and
powers the AR299m on and off. Turn the control clockwise to turn the system on. Turn the
knob counterclockwise until it clicks to turn the system off.

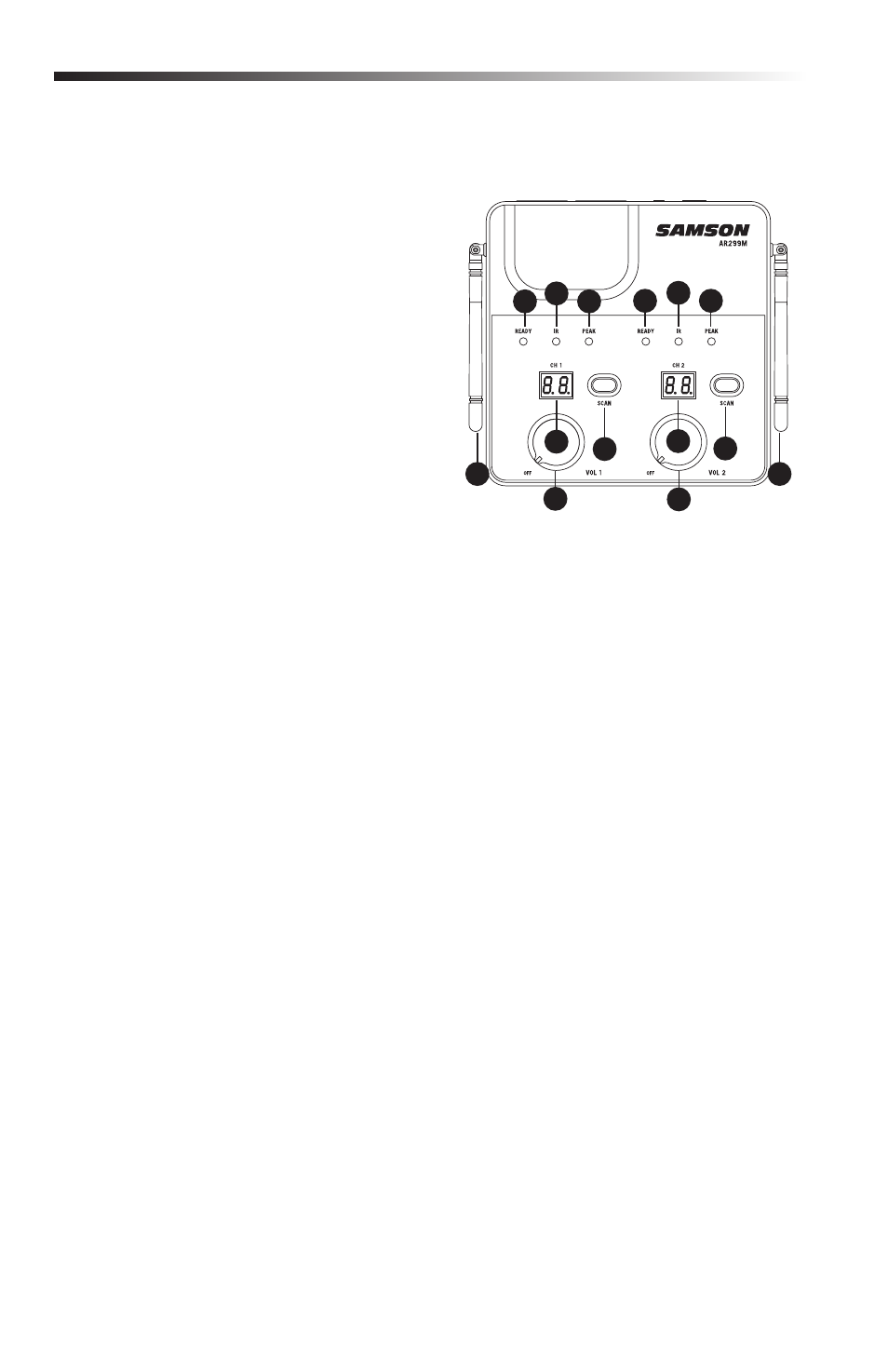

AR299m Receiver Features
1 1
2 2
4 4 5
5 6
6
7 7
3 3
