ROG MAXIMUS Z790 HERO
2-23
Chapter 2
1.

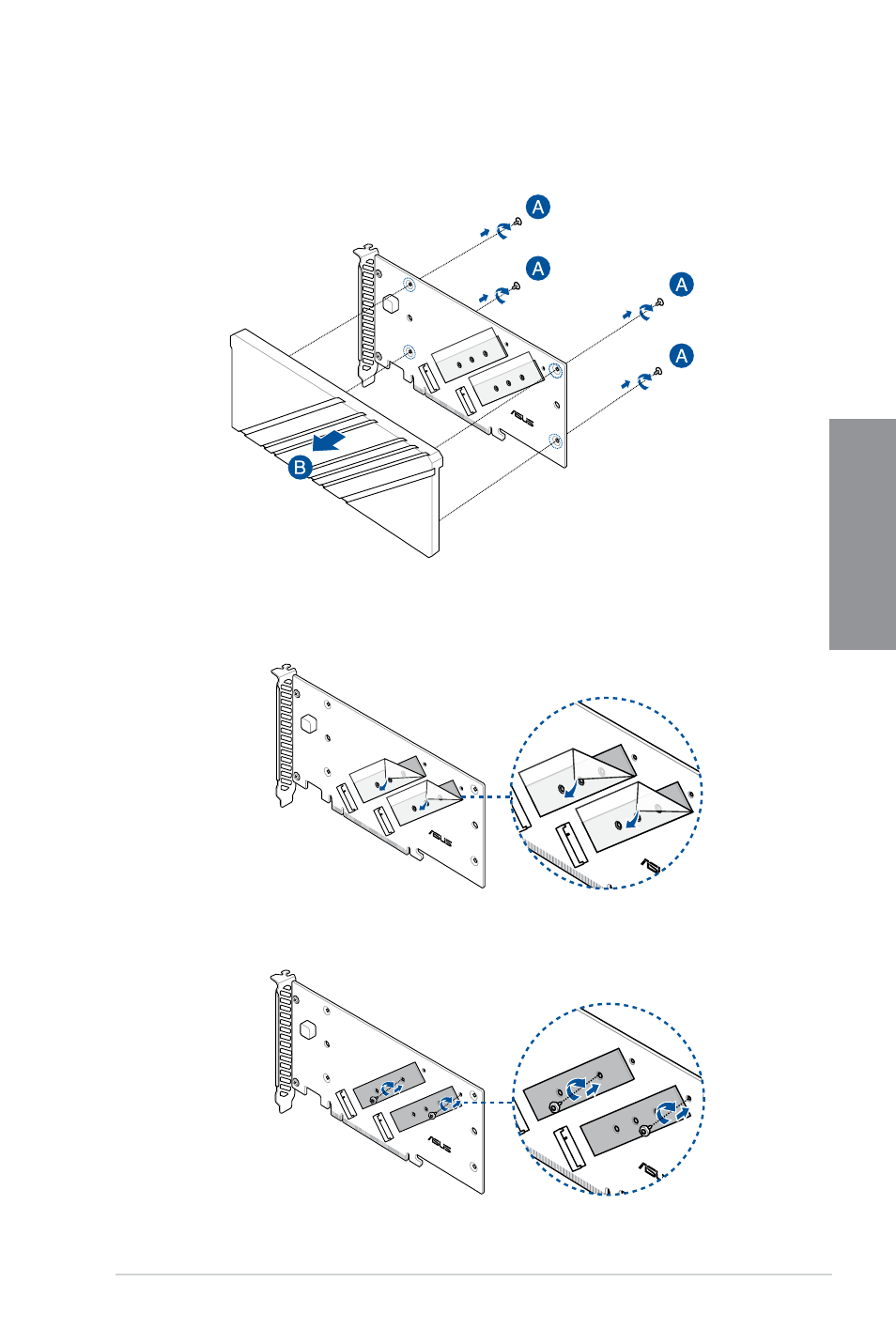

Remove the four (4) cover screws that secure the cover to the ROG HYPER M.2 card,
then remove the cover and set it aside.
To install ROG HYPER M.2 Card
3.
Secure the stand screws onto the ROG HYPER M.2 card.
2.
Peel the plastic films off the thermal pads by the M.2 slots.
