Motherboard rear and audio connections
2.3.1
Rear I/O connection

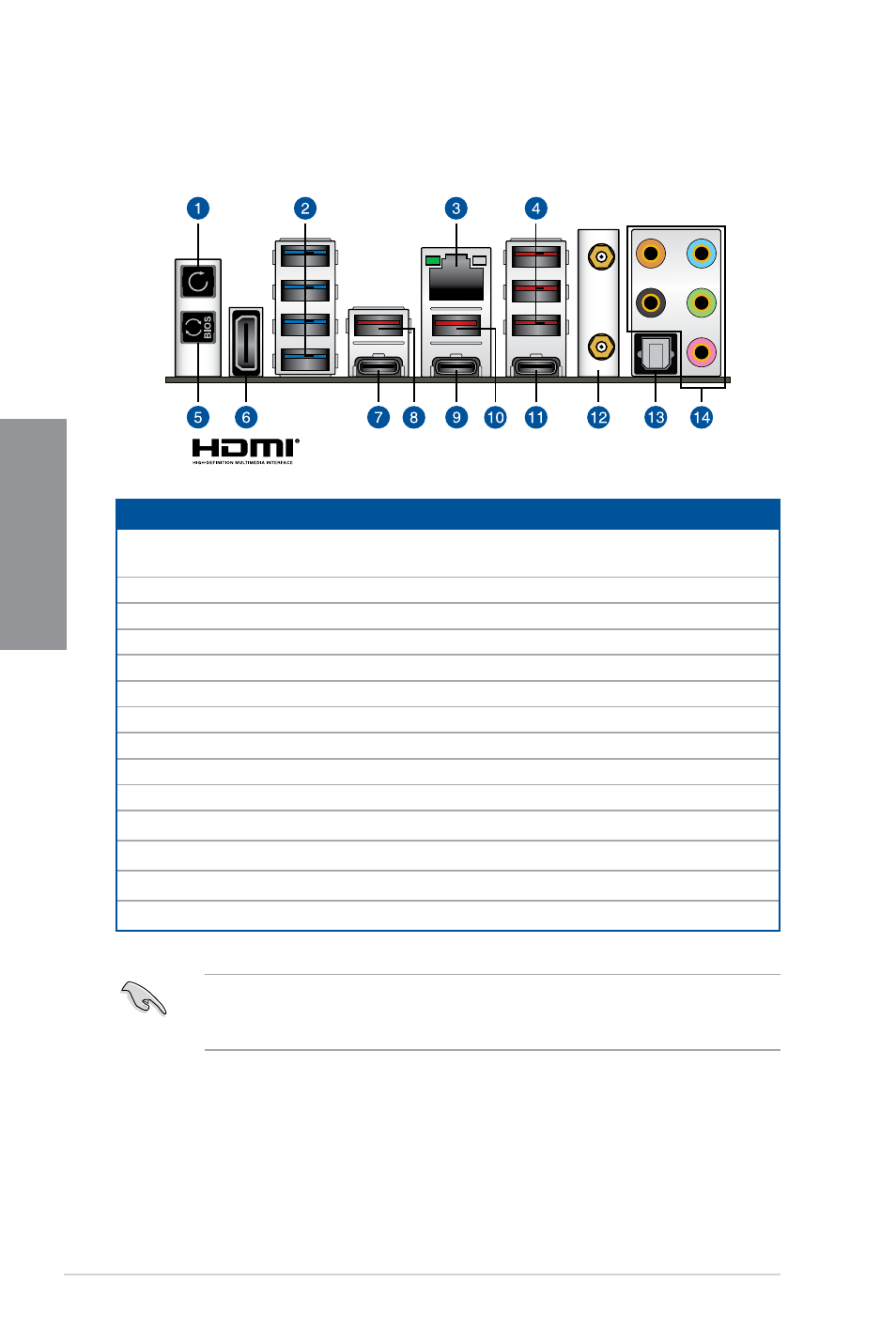

Rear panel connectors
1.
Clear CMOS button (CLR_CMOS). Press this button to clear the BIOS setup
information only when the systems hangs due to overclocking.
2.
USB 3.2 Gen 1 Type-A ports E5, E6, E7, and E8
3.
Intel
®
2.5Gb Ethernet port*
4.
USB 3.2 Gen 2 Type-A ports 1, 2, and 3
5.
BIOS FlashBack™ button
6.
HDMI
®
port
7.
Thunderbolt™ 4 USB Type-C
®
port EC1
8.
USB 3.2 Gen 2 Type-A port 5
9.
Thunderbolt™ 4 USB Type-C
®
port EC2
10.
USB 3.2 Gen 2 Type-A port 6
11.
USB 3.2 Gen 2 Type-C
®
port C4
12.
Wi-Fi module
13.
Optical S/PDIF OUT port
14.
Gold-plated audio jacks**
* and ** : Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
We strongly recommend that you connect your devices to ports with matching data
transfer rate. For example connecting your USB 3.2 Gen 1 devices to USB 3.2 Gen 1
ports for faster and better performance for your devices.
