MACKIE 802VLZ4 8-Channel Ultra-Compact Mixer - Manual (Page 8)

802VLZ4
8
802VLZ4
Keyboard Submixer
Headphones
Keyboard submix to
front-of-house
mixer
Mono synth 1
Stage monitor mix from FOH mixer
Main mix to FOH mixer
Mono synth 2
Synth 4
Synth 3
Stage Snake
SRM150 powered
personal monitor

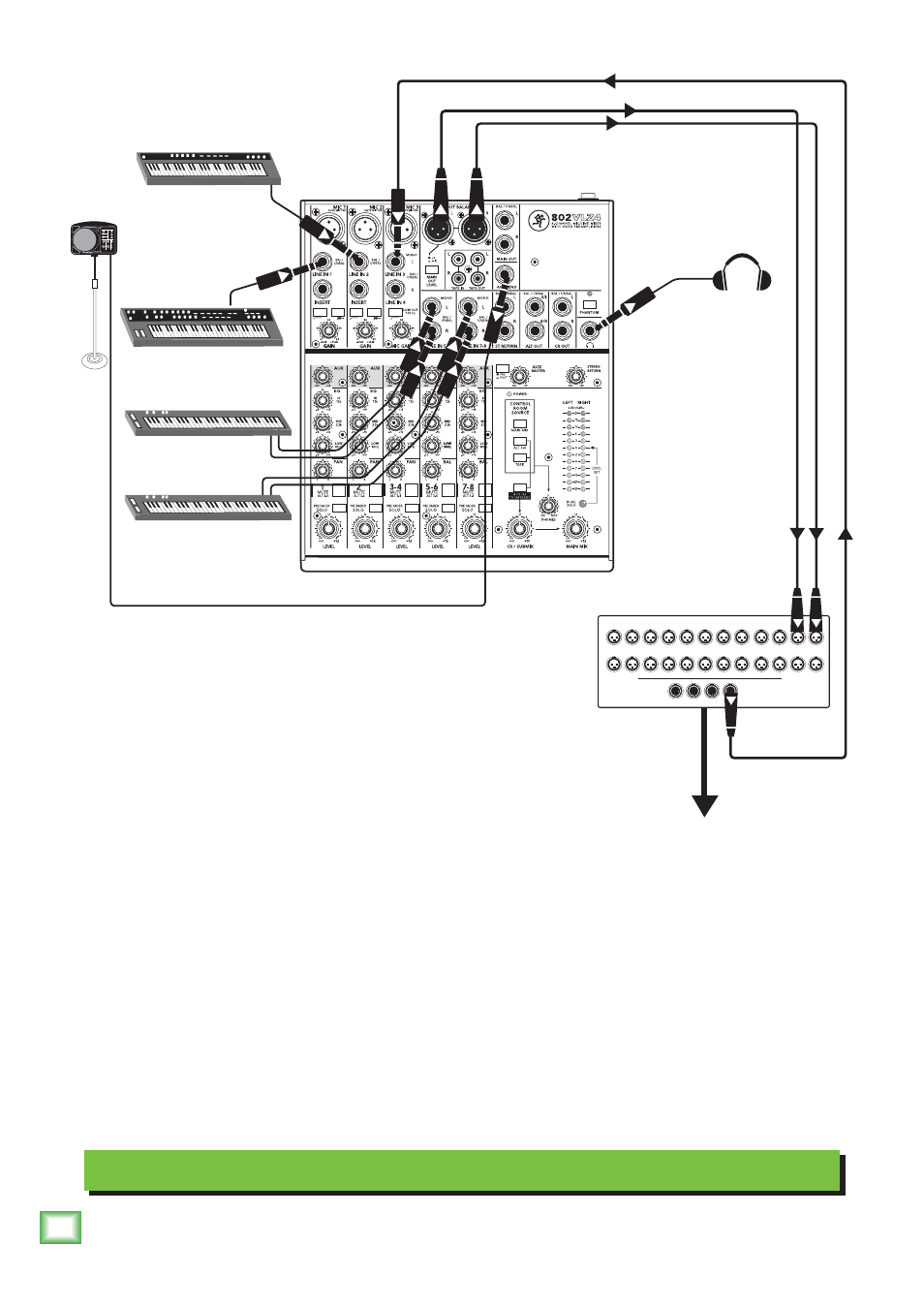

This diagram shows mono synths connected to the mono line inputs of channel 1 and 2, and stereo
synths connected to the stereo line inputs of channels 5/6, and 7/8.
The XLR main mix outputs are connected to two channels of a stage snake. The main output level switch
next to the main outputs is set to mic, and these balanced outputs are then suitable for sending over long
cable runs from the snake to the front of house mixer. Here, the keyboard submix is added to main mix
with the other instruments and vocals of your legendary all-star band.
The snake returns a stage monitor feed from the FOH mixer into channel 3's line input. Leave the
channel 3 level down, so this feed is not sent to the main mix of the 802VLZ4. Adjust the channel 3
aux control to add the stage monitor mix from the front of house mixer. Adjust the other channel's aux
controls until you are happy with the overall monitor mix of your keyboards and the band's guitars/
drums/vocals etc. Set the aux post/pre switch to pre-level to run the SRM150 as a powered stage
monitor. With this arrangement, you have more control over what you hear in the monitor. You can
add "more me" and "less them," and generally adjust the monitor mix to your liking.
A pair of headphone is connected to the headphones output.
