Video Editing/Production Bay
Desktop computer
Video out
Video Monitor
DVD Player 1 DVD Player 2
Stereo sound effects
hard disk player
MR8mk3
Studio Monitors
Broadcast
Microphones

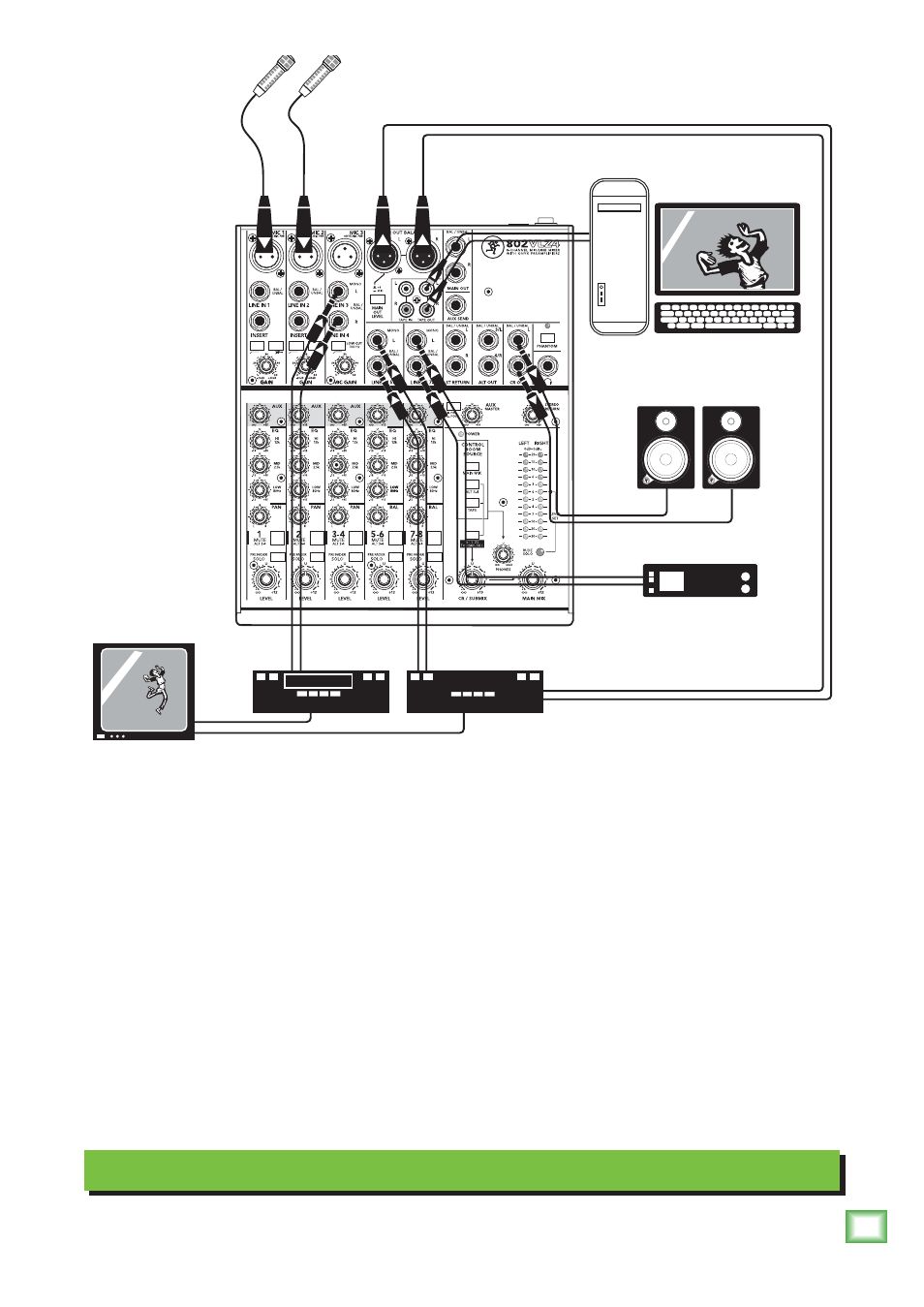

This diagram shows two voice-over microphones connected to the mic inputs of channels 1 and 2.
The stereo line-level outputs from two digital video players connect to the line inputs of channels 3/4,
and 5/6.
A stereo sound effects hard disk player is connected to the line inputs of channels 7 and 8.
The tape outputs connect to the line-level audio inputs of a desktop computer running your favorite
DAW. You will probably need a dual RCA to 1/8" adapter, or cable to connect to your computer's audio
input.
The control room outputs feed a pair of MR8mk3 powered studio monitors. The main mix outputs are
feeding the balanced audio inputs of a video recorder.
