FRONT PANEL
All inverters described in this manual have an ON/OFF rocker switch, two LED
indicators, and multiple AC outlets. Actual locations of these components vary by
model. Multiple AC outlets enable multiple appliances to be operated at one time.
ON/OFF Switch – Controls operation of the inverter. The below indicators operate
when the switch is ON.
Green LED – When lit, indicates the inverter is on and operating normally. AC is
present at the outlets.
Red LED – When lit, indicates the inverter has shut down for any of the following
reasons:
1. Low DC battery voltage – less than the following voltage:
# 3724 — 9.5V
# 3724-4 — 20V
#3724-8 — 40V
Preceded by an audible alarm. Charge the battery as soon as possible.
2. High battery voltage – greater than the following voltage:
# 3724 — 15V
# 3724-4 — 30V
#3724-8 — 60V
3. Over temperature − Shut off the inverter and let it cool before restarting.
4. Overload – reduce the AC appliance load.
Fault Indicator (red)
Power On Indicator (green)

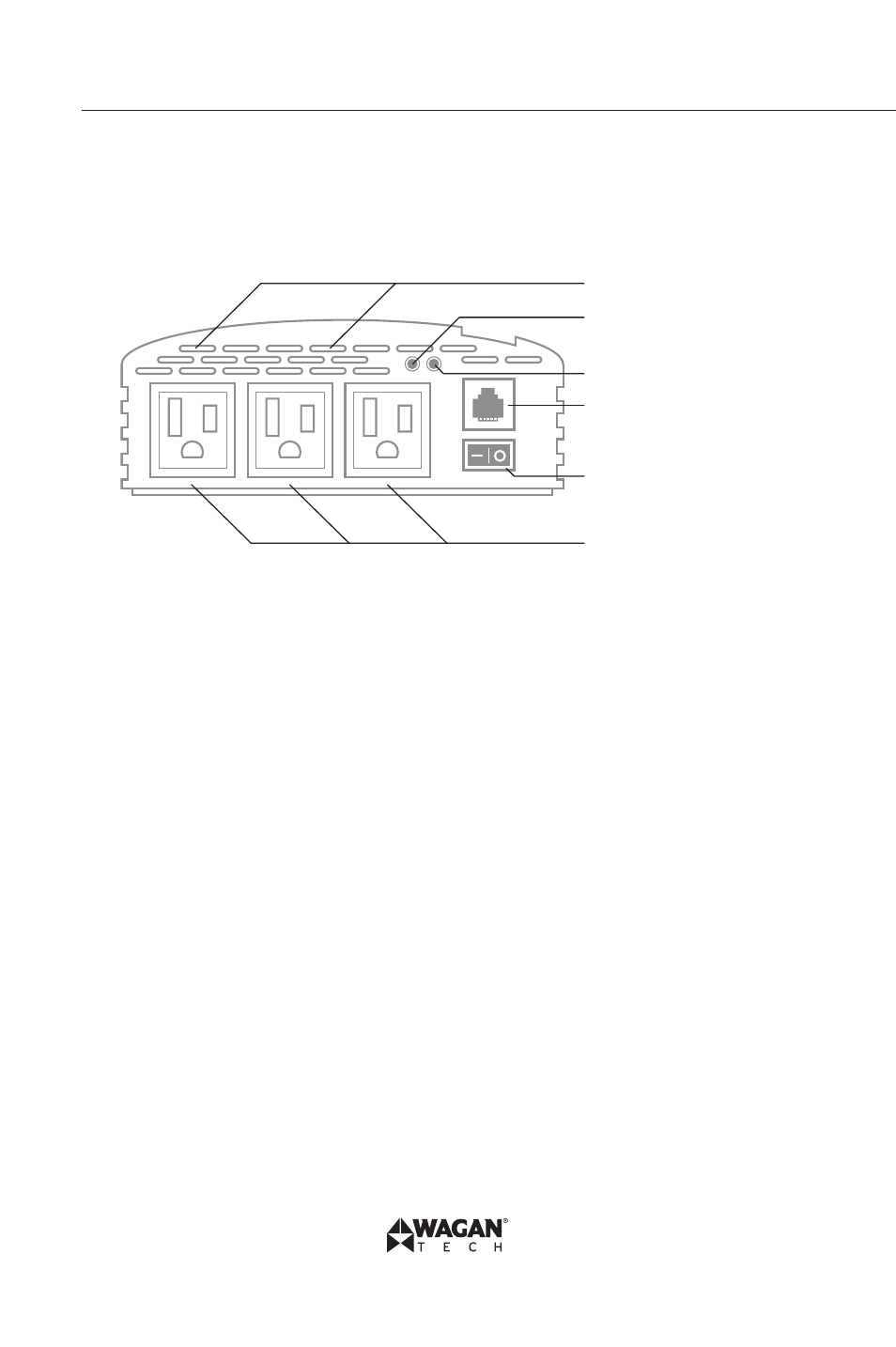

3x AC Outlets
Vents
Port for Optional
Wired Remote
(not included)
ON/OFF Switch
