16 en | Controls, indicators, and connections
IPX Series DSP Multichannel Networking Power
Amplifier
2018.04 | 01 | F.01U.330.705 Installation manual Bosch Security Systems, Inc.

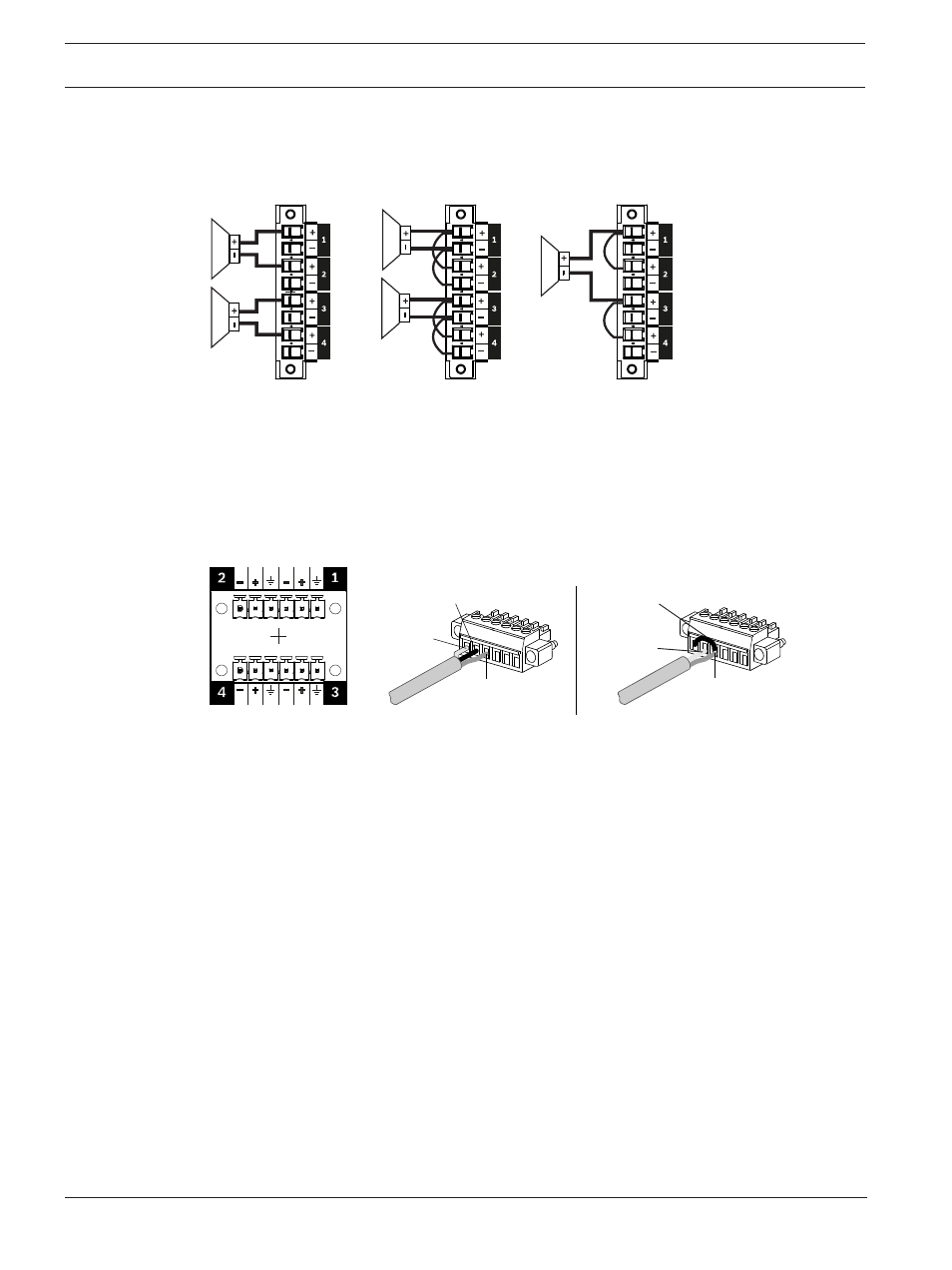

Parallel-bridge mode cabling
This mode combines four amplifier channels into one drive channel. Speaker gets connected
to 1+ and 3+ (resp. 5+ and 7+) with a connection between 1+ and 2+, as well 3+ and 4+ (5+
and 6+, 7+ and 8+), see illustration.
Bridge mode Parallel mode Parallel-bridge mode
Figure 6.5: Output wiring for different operation modes on IPX amplifiers combining 2 or 4 channels.
6.5 Audio inputs
Audio input connectors on IPX series are Euroblock type for 4 channels (IPX5:4, IPX10:4,
IPX20:4) respectively 8 channels (IPX10:8). This allows an easy pre-wiring of the cables
outside the rack and a fast single connector for connecting multiple channels at once, without
the danger of wiring errors.
HOT +
COLD -
JUMPER FROM COLD
TO SHIELD
SHIELD SHIELD
HOT +
Figure 6.6: Input connectors, wiring for balanced operation, wiring for unbalanced operation
The pin out is labeled on the rear of the amplifier. It is highly recommended to use a balanced
input cabling whenever possible.
In addition to the analogue inputs IPX amplifiers can also receive their input signals from an
OMNEO or a Dante network. Input source can be changed via the front panel or using remote
control software.
6.6 Fan cooling
The power amplifier has four fans. The fans are fully controlled and supervised by the
amplifiers management system and adjust their speed depending on the temperature. The
temperatures of the power amplifier’s channels are registered and monitored individually.
