7
Power amplifier menu navigation
7.1
Display and control menu
The IPX series uses an OLED display to show information such as VU metering or amplifier
state, temperatures, voltages, IP address, and other useful information as well as limited
access to basic parameters for editing, if not locked by software. The navigation is provided by
three buttons:
up/left,
down/right, and
for enter. The IPX control menu has
three screens: home screen, channel menu, and device menu.

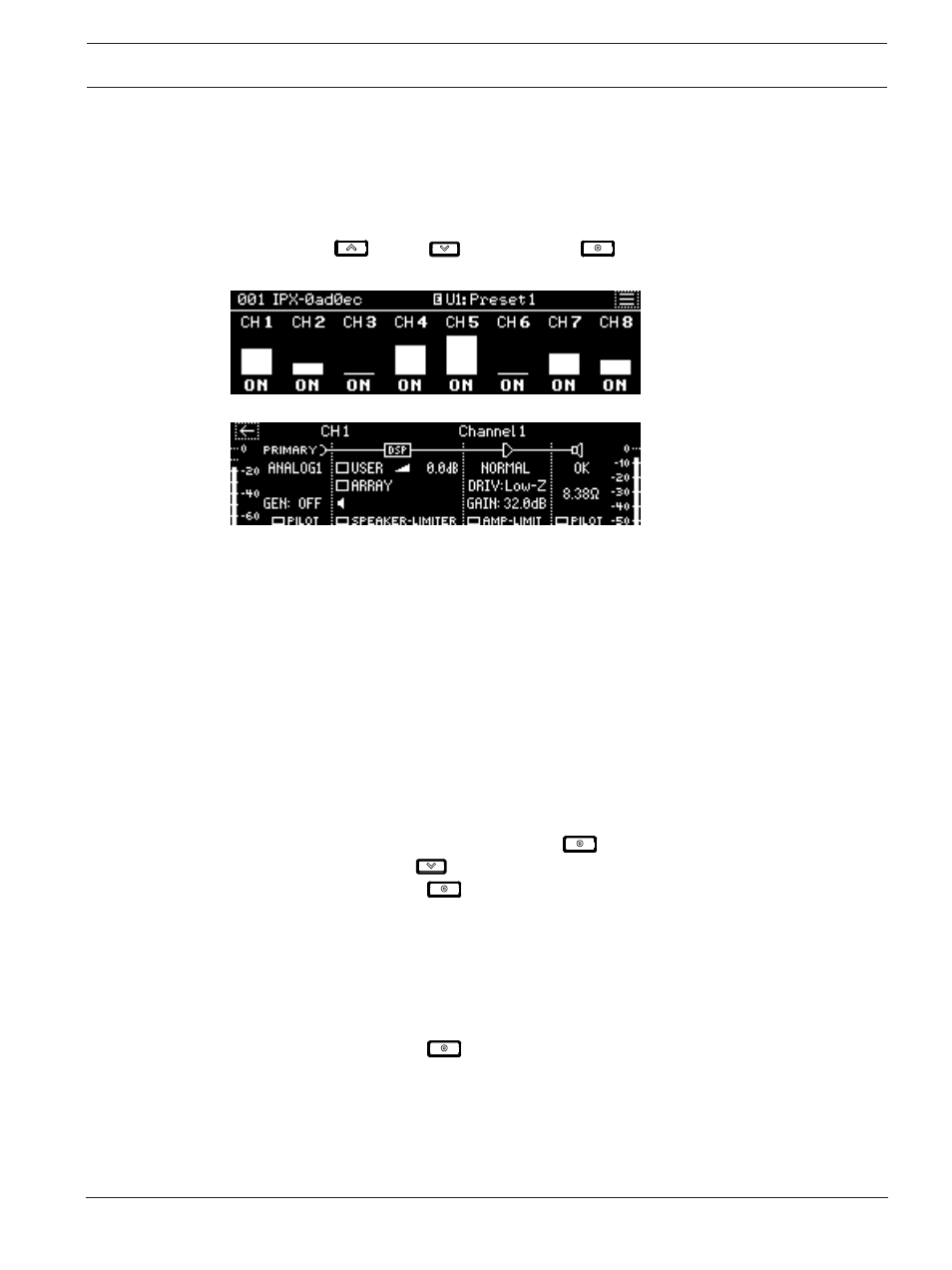

Figure
7.1: Home screen
Figure
7.2: Channel menu
The actual menu content is subject to change with firmware updates. For more information,
see the product's support section on our website: www.dynacord.com.
7.2
Standby and Eco Rail mode
IPX amplifiers will automatically operate in Eco Rail mode when no or small audio signal (e.g.
pilot tones or background music), which results in a significantly reduced power consumption
compared to other amplifiers (see specifications for power consumption). The amplifier is
ready for operation, when the Power ON switch on the rear panel is in position
ON
and the
green POWER LED on the front panel is steady.
Turning on Standby mode
If no audio signal at all is required the IPX amplifiers can be switched to STANDBY mode.
To
switch to
Standby mode
, do the following:
1.
On the front panel, press the
enter button
to access the device menu.
2.
Use the
down button
to scroll to POWER OFF.
3.
Press the
enter button
to select POWER OFF.
The amplifier is now in STANDBY mode indicated by the yellow LED on the front panel.
Returning to Eco Rail mode
To
return the amplifier back to Eco Rail mode
, do the following:
1.
On the front panel, press any
button
.
"Press the middle key to switch on power"
message appears.
2.
Press the
enter button
.
The amplifier returns to Eco Rail mode (normal operation) indicated by the green LED on the
front panel.
