Connecting a transmitter for playback
When you connect wireless headphones or a wireless speaker transmitter to the ZONE B LINE OUT terminal of this unit, you can play back the same source through
the wireless headphones or wireless speakers as in the main room.
Connections

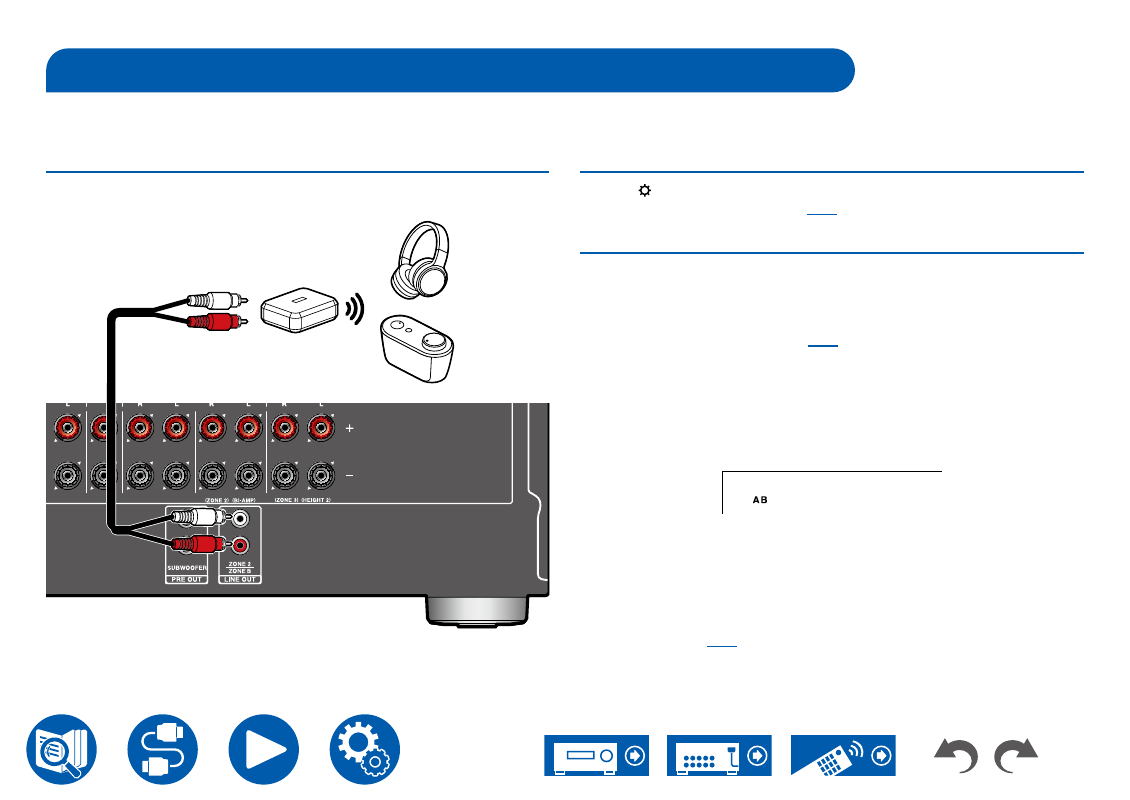

1. Use an analog audio cable to connect the ZONE B LINE OUT terminal on this
unit to the input terminal on the transmitter.
a
Transmitter
Setting Up
1. Press
on the remote controller, and set "2. Speaker" - "Configuration" -
"Zone 2 Lineout" to "Zone B". (
Playing Back
1. Press the Q button on the remote controller and select "Audio" - "Zone B".
•
In the following cases, "Zone B" cannot be selected.
– When ZONE 2 is On
–
When "2. Speaker" - "Configuration" - "Zone 2 Lineout" on the Setup
menu is set to "Zone 2". (
2. Select the audio output destination.
Off:
Outputs audio only from ZONE A. "A" on the display of the main unit
lights up.
On (A+B):
Outputs audio from both ZONE A and ZONE B. "A" and "B" on the
display of the main unit light up.
On (B):
Outputs audio only from ZONE B. "B" on the display of the main unit
lights up.
3. Start play on the AV component.
4. Adjust the volume on the transmitter, etc., in ZONE B.
•
When "Zone 2 Lineout" is set to "Zone B", and "Audio" - "Zone B" on the
Quick Menu is set to "On (A+B)", the ZONE A output is set as below.
– Sound quality cannot be adjusted.
– There will be no effect for the surround back speakers from "2.Speaker" -
"Distance" (
) in the Setup menu.
a
Analog audio cable
