A-61563/PartNo. 7J3981 October 2010 1
Using the Kodak A3/A4 Flatbed Accessory
The Kodak A3 Flatbed Accessory and Kodak A4 Flatbed Accessory
give you the ability to scan exception documents with your Kodak
Scanners that are designed to use the flatbed. The cable included with
the A3/A4 Flatbed Accessory easily connects your flatbed to the
scanner.
NOTE: These instructions apply to all scanner models, unless
otherwise noted. The photos in this publication may vary slightly
depending on your scanner model.
Specifications

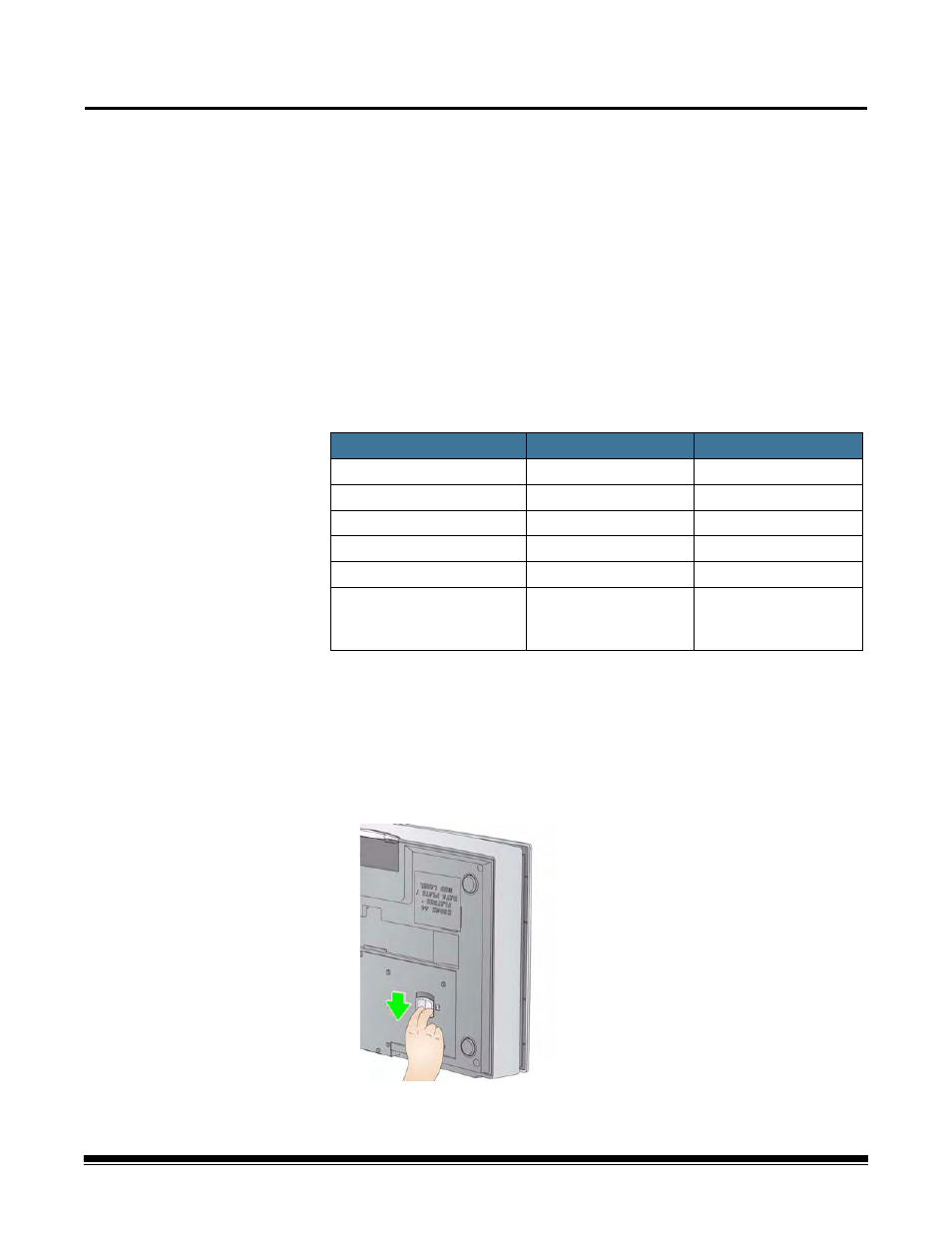

Unlocking the flatbed
When the Kodak A3 or A4 Flatbed Accessory is shipped, the flatbed is
placed in a Locked position. Unlock the flatbed before you install it. The
Lock/Unlock lever is on the bottom of the scanner.
1. Turn the scanner over to locate the Lock/Unlock lever.
2. Move the lever into the Unlocked position.
NOTE: It is not necessary to lock the flatbed accessory unless you
need to ship it to another location.
Features A3 Flatbed A4 Flatbed
Height 15.9 cm (6.26 in.) 8.7 cm (3.38 in.)
Width 43.8 cm (17.24 in.) 28.6 cm (11.25 in.)
Length 71.1 cm (28 in.) 47.6 cm (18.75 in.)
Weight 10.8 kg (24 lb.) 3.7 kg (8.05 lb.)
Optical Resolution 600 dpi 1200 dpi
Accommodates
document sizes up to A3 / 297 x 420 mm
(11.69 x 16.54 in.) or
tabloid size (11 x 17 in.) A4 / 210 x 297 mm
(8.27 x 11.69 in.) or
letter size (8.5 x 11 in.)
