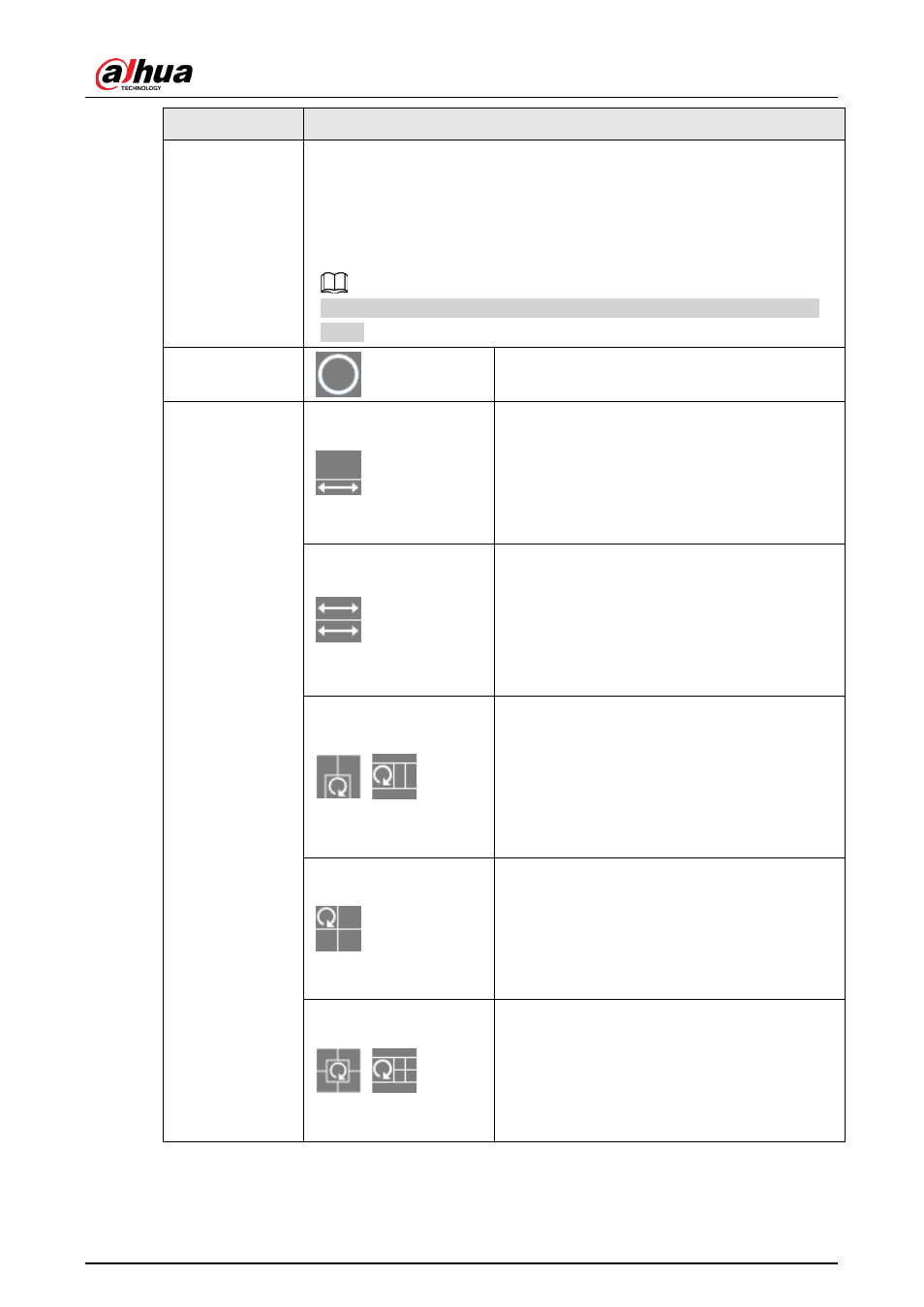

Parameter Description
Display mode
The display model of the current image. There are different display modes
for each installation mode.
● Ceiling : 1P+1, 2P, 1+2, 1+3, 1+4, 1P+6, 1+8.
● Wall : 1P, 1P+3, 1P+4, 1P+8.
● Ground : 1P+1, 2P, 1+3, 1+4, 1P+6, 1+8.
The image will be the original size by default when switching installation
mode.
Ceiling/Wall/Gro
und mount
Original image The original image before correction.
Ceiling/Ground
mount
1P+1
360° rectangular panoramic image screen +
independent sub-screens.
● You can zoom or drag the image in all the
screens.
● You can move the start point (left and right)
on rectangular panoramic image screen.
2P
Two associated 180° rectangular image screens;
at any time, the two screens form a 360°
panoramic image. It is also called dual-
panoramic image.
You can move the start point (left and right) on
the two rectangular panoramic image screens,
and the two screens link each other.
, 1+2
Original image screen + two independent sub-
screens. Ground mount does not support this
display mode.
● You can zoom or drag the image in all the
screens.
● You can rotate the image on the original
image screen to change the start point.
1+3
Original image screen + three independent sub-
screens.
● You can zoom or drag the image in all the
screens.
● You can rotate the image on the original
image screen to change the start point.
, 1+4
Original image screen + four independent sub-
screens.
● You can zoom or drag the image in all the
screens.
● You can rotate the image on the original
image screen to change the start point.
