– 29 –
TO WORK
+
POWER SOURCE INVERTEC DC TIG STARTER
-
WARNING
ELECTRIC
SHOCK
CAN KILL
Only qualified persons should install, use or service this machine. Turn off input power to the Welding Power Source using the disconnect switch at the fuse box before connecting the DC Tig
IN
OUT
K900-1
TO TIG TORCH
K963 HAND AMPTROL K870 FOOT AMPTROL
OR
K814
OR
ARC START SWITCH
N.A. WELDING CABLE MUST BE SIZED FOR CURRENT AND DUTY CYCLE OF APPLICATION.
AUXILIARY POWER WITH 5.5 AMP 42 VOLT
Starter to the power source, or the Amptrol or Wire Feeder to the DC Tig Starter.
TOP 14 PIN AMPHENOL
WIRE FEEDER
N.B. A WIRE FEEDER CAN BE PLUGGED INTO THE DC TIG STARTER TO REDUCE PROCESS CONVERSION TIME.
N.C.
N.B. BOTTOM 14 PIN AMPHENOL
CONSULT INVERTEC INSTRUCTION MANUAL FOR APPROPRIATE WIRE FEEDERS AMD CONNECTORS.
N.C. SET UP SHOWN IS FOR DC NEGATIVE TIG WELDING. DC POSITIVE WELDING IS OBTAINED BY REVERSING THE OUTPUT CONNECTIONS ON THE INVERTEC AND SETTING THE INVERTEC’S ELECTRODE POLARITY SWITCH TO POSITIVE.
4-19-96D S20405

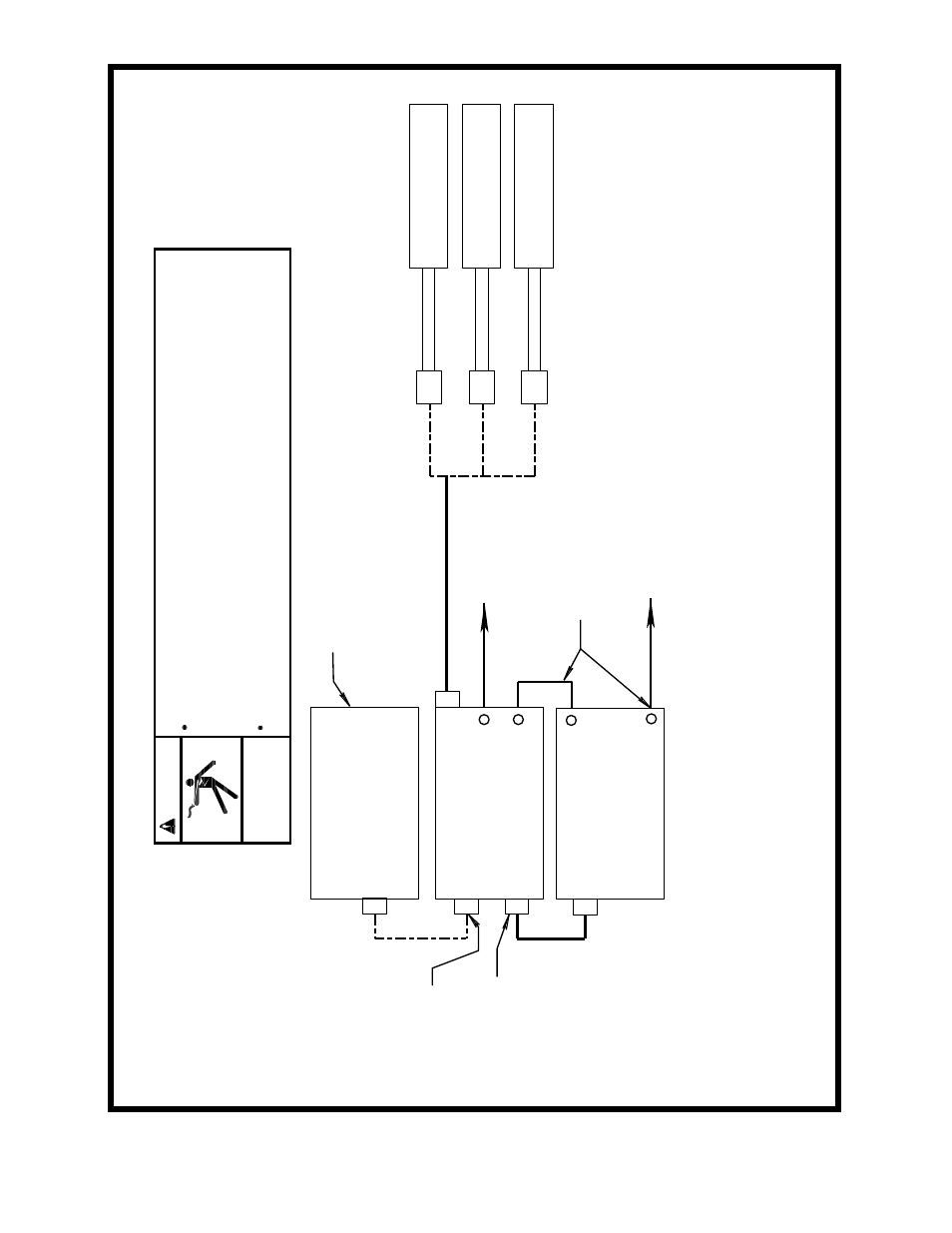

K900-1 DC TIG STARTER - CONNECTION DIAGRAM
