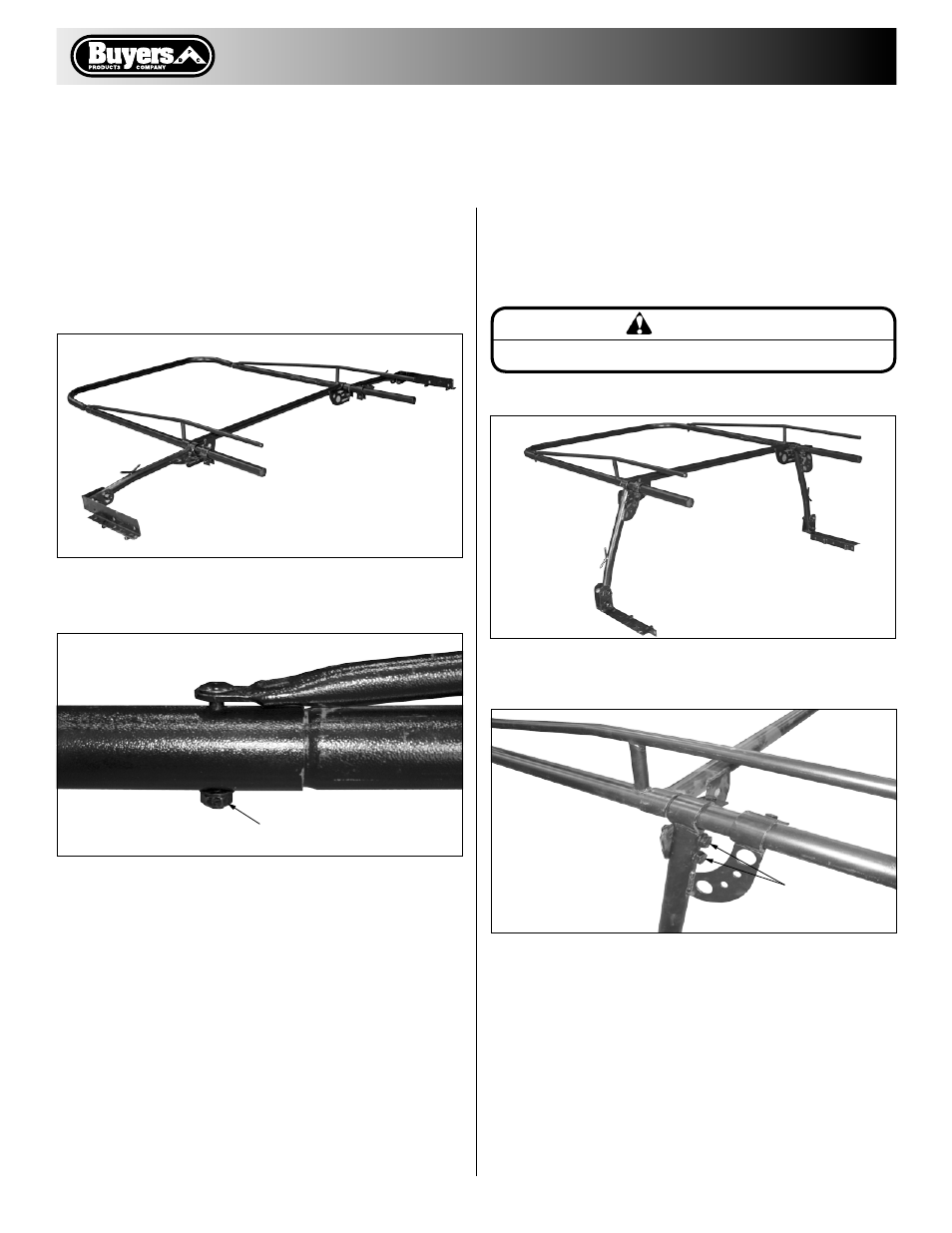

Assembling Front Half of Rack (Short Bed)
4. Attach the cab hoop to the front siderails as
shown. Make sure that the drain hole, in the
center of the cab hoop, is facing down. Tighten
cab hoop hardware completely.
5. With someone’s assistance, carefully lift the front
half of the rack and attach each leg to the gussets
on the front crossbar as shown. Hand tighten
hardware.
The front half of the ladder rack is now
assembled (Short Bed)
A
I
Fig. 7
Fig. 8
Fig. 9
Fig. 10
CAUTION
the front half of the ladder rack will not stand by itself.
