Quality since 1946
6

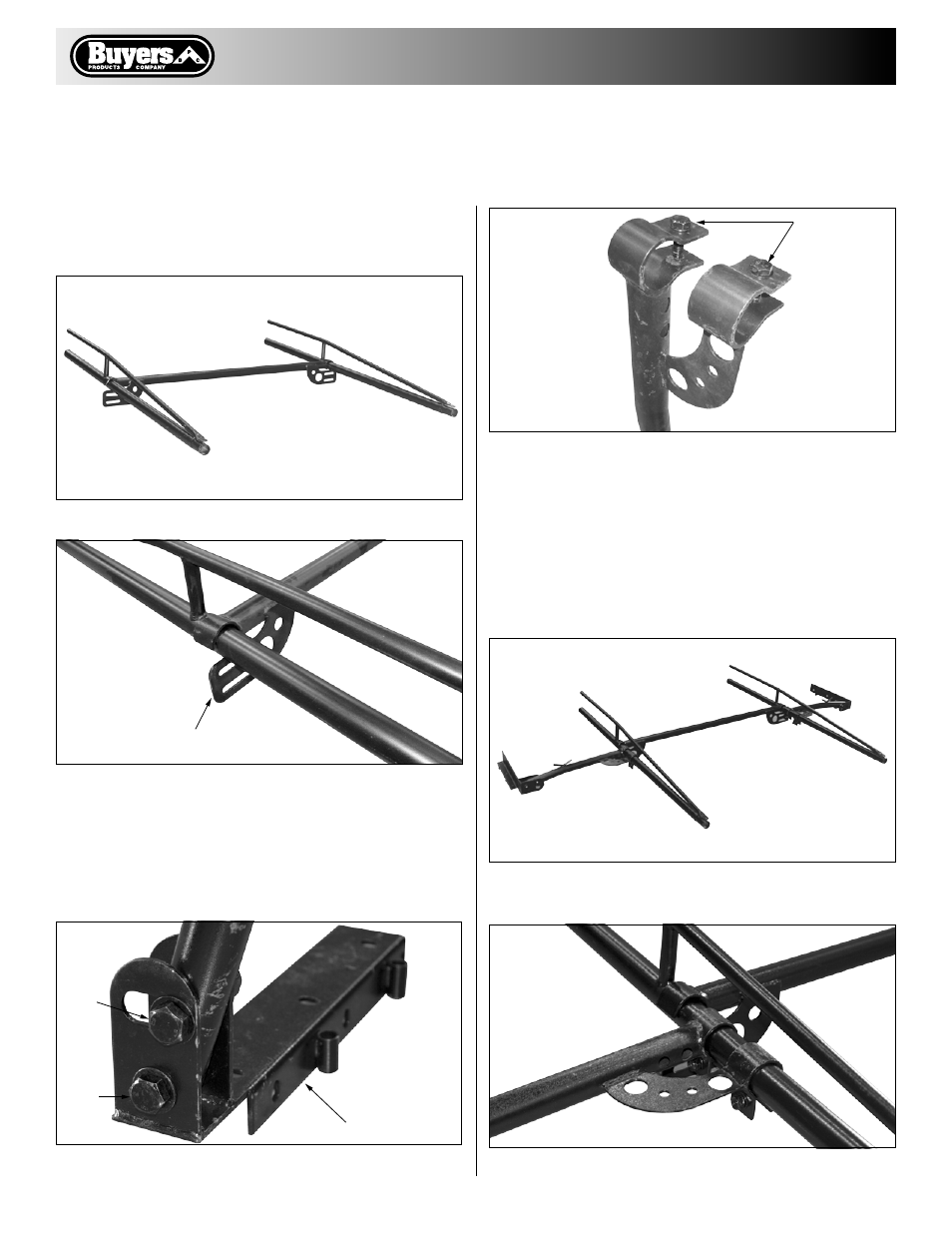

Assembling Front Half of Rack (Long Bed)
2. Assemble the front legs and feet as shown.
Legs and feet are directional. Make sure that leg
gussets are facing toward the front of the rack.
Foot mounting tabs should face the inside of the
bed on each side. Hand tighten hardware.
1. Slide the front crossbar onto the bottom tubes
of the front siderails as shown.
Note: Crossbar
gussets should be facing toward front of the rack.
Rear
Front
Front Cross Bar Gusset
3. Slide the assembled legs and feet onto the front
siderails as shown. Leg gussets should be facing
toward the front of the rack.
G
H
Foot Mounting Tabs
C
Rear
Front
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
