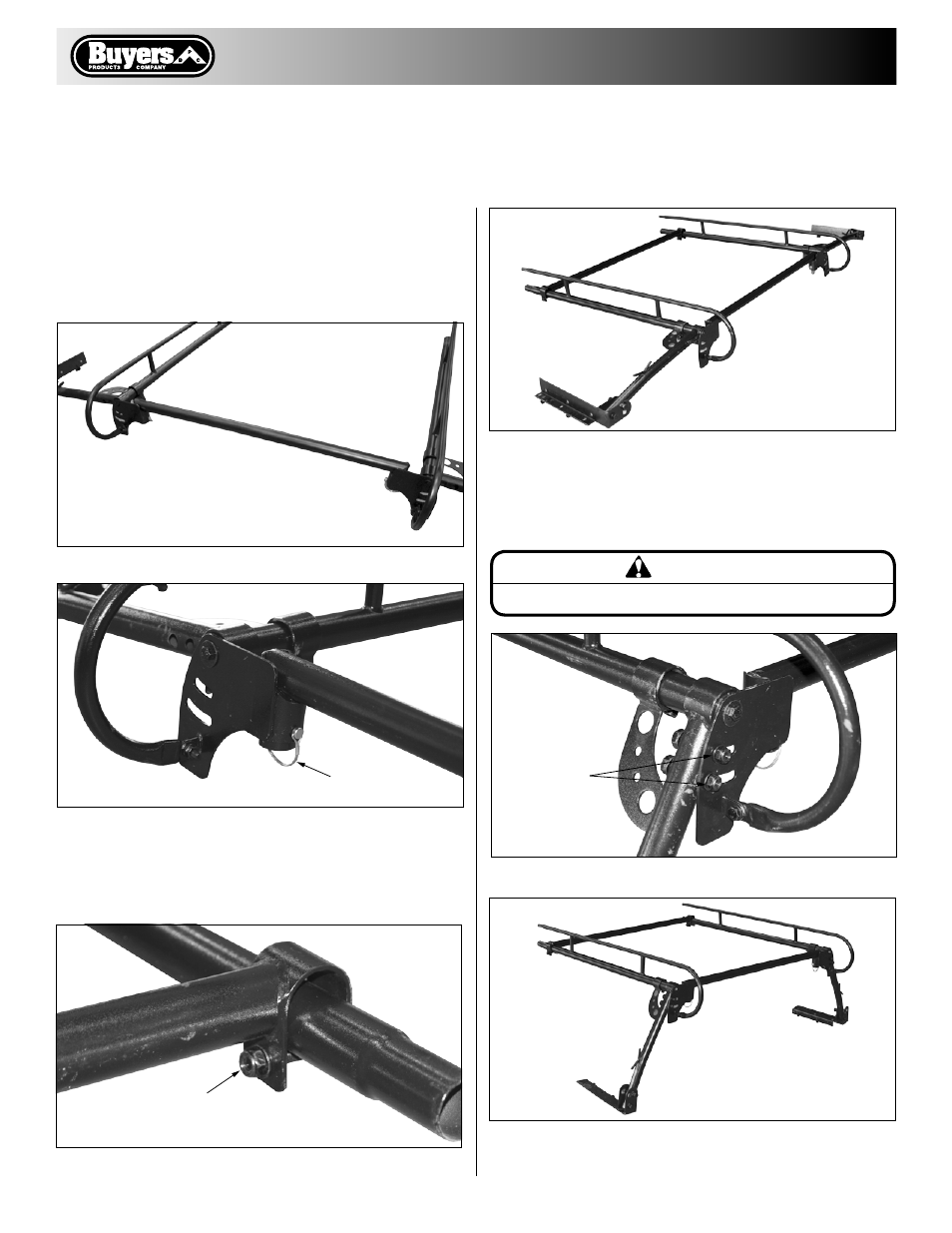

4. Attach the rear crossbar by inserting it into the rear
crossbar mounting brackets as shown. Insert snap
hooks thru small holes on the side of each crossbar
mounting bracket. This will hold the rear cross bar in
place.
Assembling Rear Half of Rack (Short or Long Bed)
5. Attach the center crossbar by sliding it onto the
rear siderails as shown. Tighten hardware just
enough so that the center crossbar doesn’t move.
L
D
6. With someone’s assistance, carefully lift the rear
half of the rack and attach each leg, to the gussets
in the rear crossbar mounting brackets as shown.
Hand tighten hardware.
The rear half of the ladder rack is now assembled.
I
CAUTION
the rear half of the ladder rack will not stand by itself.
Fig. 26
Fig. 27
Fig. 28
Fig. 29
Fig. 30
Fig. 31
