Champion Manufacturing DH2000 - Manual (Page 43)

35

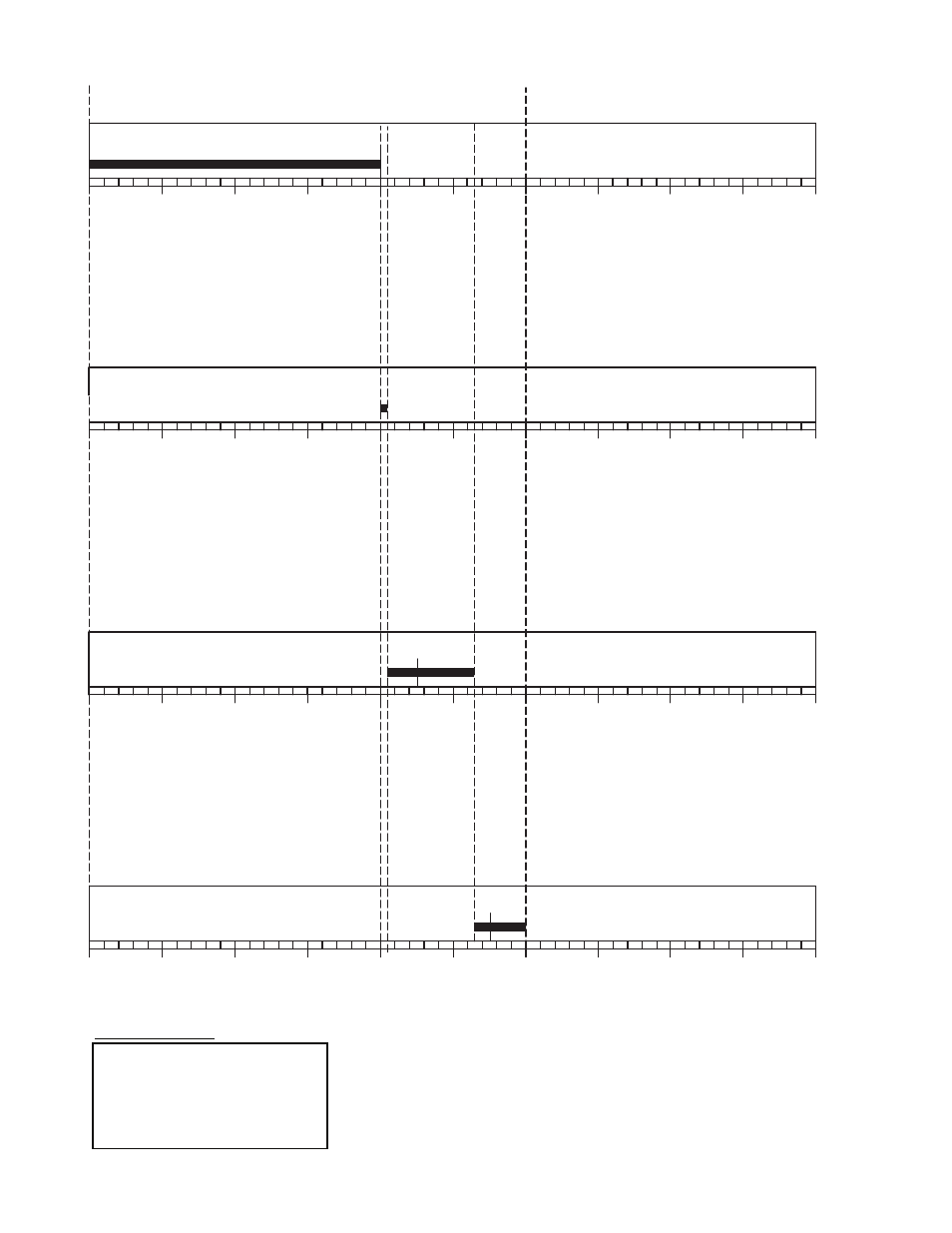

Timer Chart
TIME CYCLE - DH/MD2000
DWG. 114470-0/B
3/10/09 L.B.
60 10 0 20 40 30 50 70 90 80 100
100 80 90 70 50 30 40 20 0 10 60
60 10 0 20 40 30 50 70 90 80 100
100 80 90 70 50 30 40 20 0 10 60
7 SECONDS
12 SECONDS
1 SECOND
40 SECONDS
WASH 0 40
60 SECONDS TOTAL CYCLE
DWELL
RINSE
41 53
53 60
SANITARY DWELL
40 41
60 seconds cycle consisting of:
40 seconds Wash
1 second Dwell
12 seconds Rinse
7 seconds Sanitary Dwell
CYCLE STRUCTURE
