1
NOTE:
The installation of your dishwasher must be performed by qualified service personnel.
Problems due to improper installation are not covered by the Warranty.
1. Inspect the outside of the dishwasher carton for signs of damage.
2. Remove the carton and inspect the dishwasher for damage.
3. Check for any accessories that may have shipped with your dishwasher.
4. Turn to the front of this manual and complete the warranty card.
Immediately mail the warranty card to validate your warranty.
5. Move the dishwasher near its permanent location.
CAUTION:
Be careful when lifting and moving the dishwasher to prevent damage to the machine.
NOTE:
The installation of the dishwasher must comply with local health codes.
6. Compare the installation site utility connections with the dishwasher utility connections and
make sure that they are the same.
7. Place the dishwasher in its permanent location.
8. The dishwasher has 4 adjustable feet for leveling.
9. Level the dishwasher front-to-back and
side-to-side.
10. The dishwasher can be installed in a
straight-through or a corner configuration.
11. The typical dishwasher load height is 33¾" [86cm].
12. The machine height is 65¼" [166cm].
13. The dishwasher doors require an
open height of 76¾" [195cm] and
86" [218cm] for door removal.
Installation
Receiving
17¼"
[44cm]
33¾"
[86cm]
76¾"
[195cm]
65¼"
[166cm]
26⅛"
[66cm]
Load
Ht.
Machine
Ht.
Door Up
Ht.
86"
[218cm]
Door
Removal
Ht.
Inside
Clearance

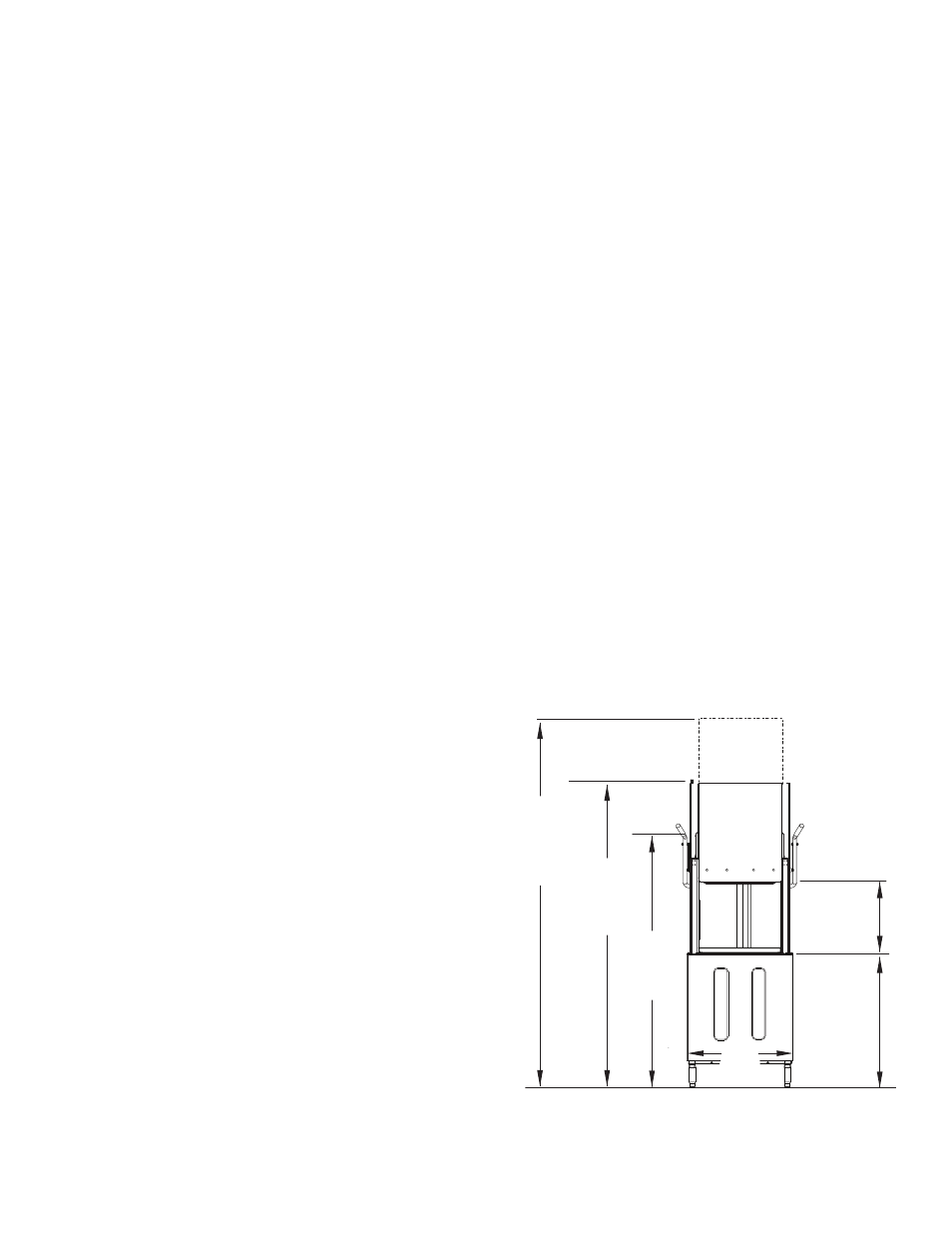

Dishwasher Dimensions in inches and Centimeters
