Three-phase network measuring with a 4-wire connection.

Three-phase network measuring with a 3-wire connection.

Three-phase network measuring with a 3-wire connection and transformers in an

ARON connection

.

Two-phase network measuring with a 3-wire connection.

Phase-to-phase single-phase network measuring with a 2-wire connection.

Phase-to-neutral single-phase network measuring with a 2-wire connection.

To validate the information and go to the next programming step, press

.

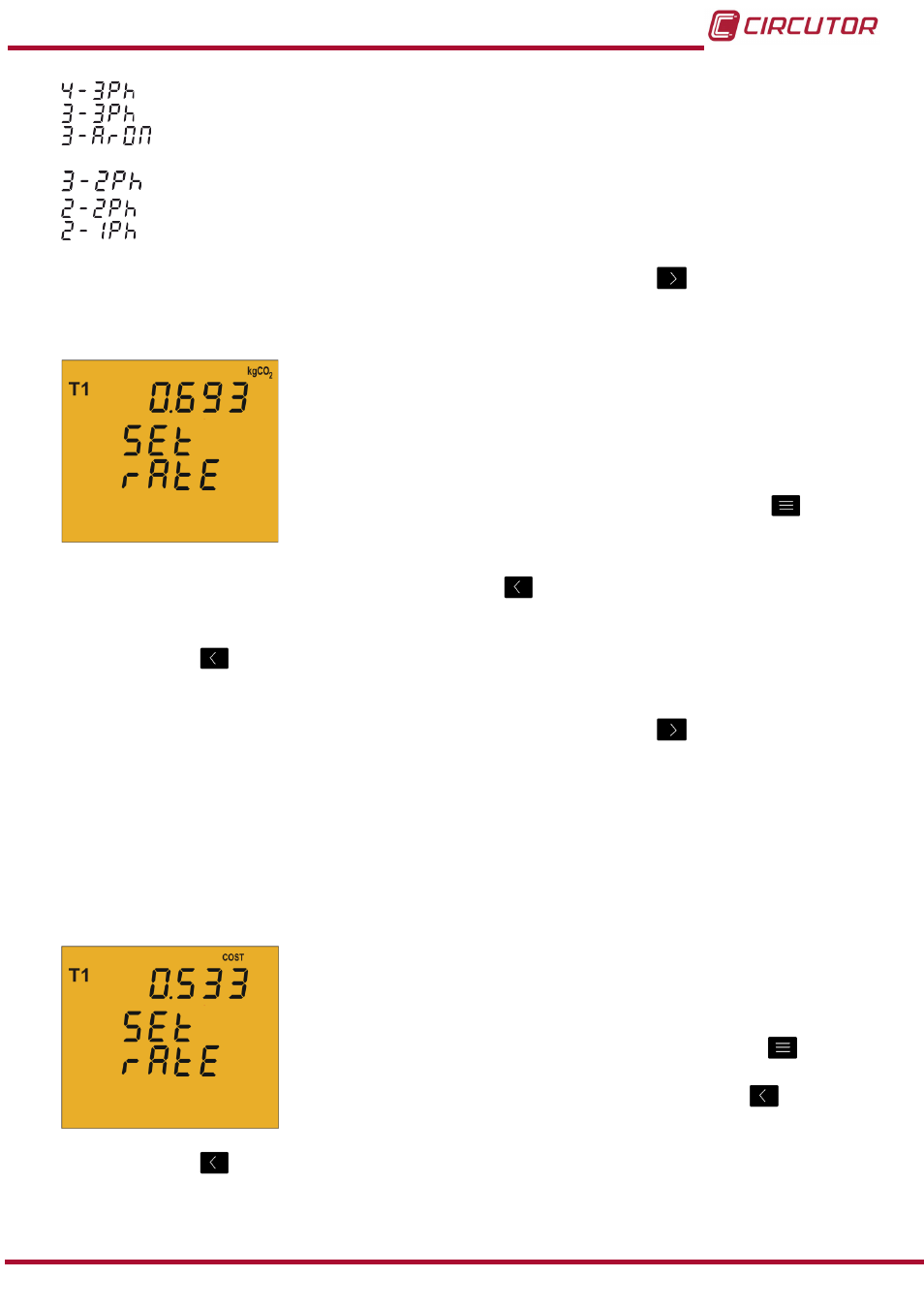

4�6�6� Ratio of kgC0

2

carbon emissions for Tariff 1

The carbon emissions ratio is the amount of emissions released

into the atmosphere to produce a unit of electricity (1 kWh).

The ratio for the European mix is approximately 0.65 kgCO

2

per

kWh.

To enter or modify the emissions ratio value, press the

key

repeatedly, increasing the value of the flashing digit.

When the on-screen value is that desired, press the

key to go to the next digit to modify

the other values.

If you press the

key after changing the last digit, it will jump back to the first digit so you

can modify the previously programmed values again.

To validate the information and go to the next programming step, press

.

If the value entered is greater than the maximum programming value, the digits flash for 2

seconds and the programmed value is deleted.

Maximum programming value: 9.999.

Minimum programming value: 0.

4�6�7� Cost Ratio for Tariff 1

On this screen the cost per kWh of electricity of Tariff 1 is

programmed.

To enter or modify the cost ratio value, press the

key

repeatedly, increasing the value of the flashing digit.
When the on-screen value is that desired, press the

key to

go to the next digit to modify the other values.

If you press the

key after changing the last digit, it will jump back to the first digit so you

can modify the previously programmed values again.

27

Instruction Manual

CVM-C5
