4�6�15� Programming the digital output
The CVM-C5 digital output may be programmed as:
 Pulse by n kWh or kvarh (Energy): the value corresponding to the energy consumed
or generated may be programmed, to generate a pulse.
 Alarm condition: a magnitude may be associated with the digital output, setting a
maximum, minimum and delay value for the trip condition.
If you do not wish to program a variable, put 00 and validate with the key.
 Pulse programming by n kWh or kvarh

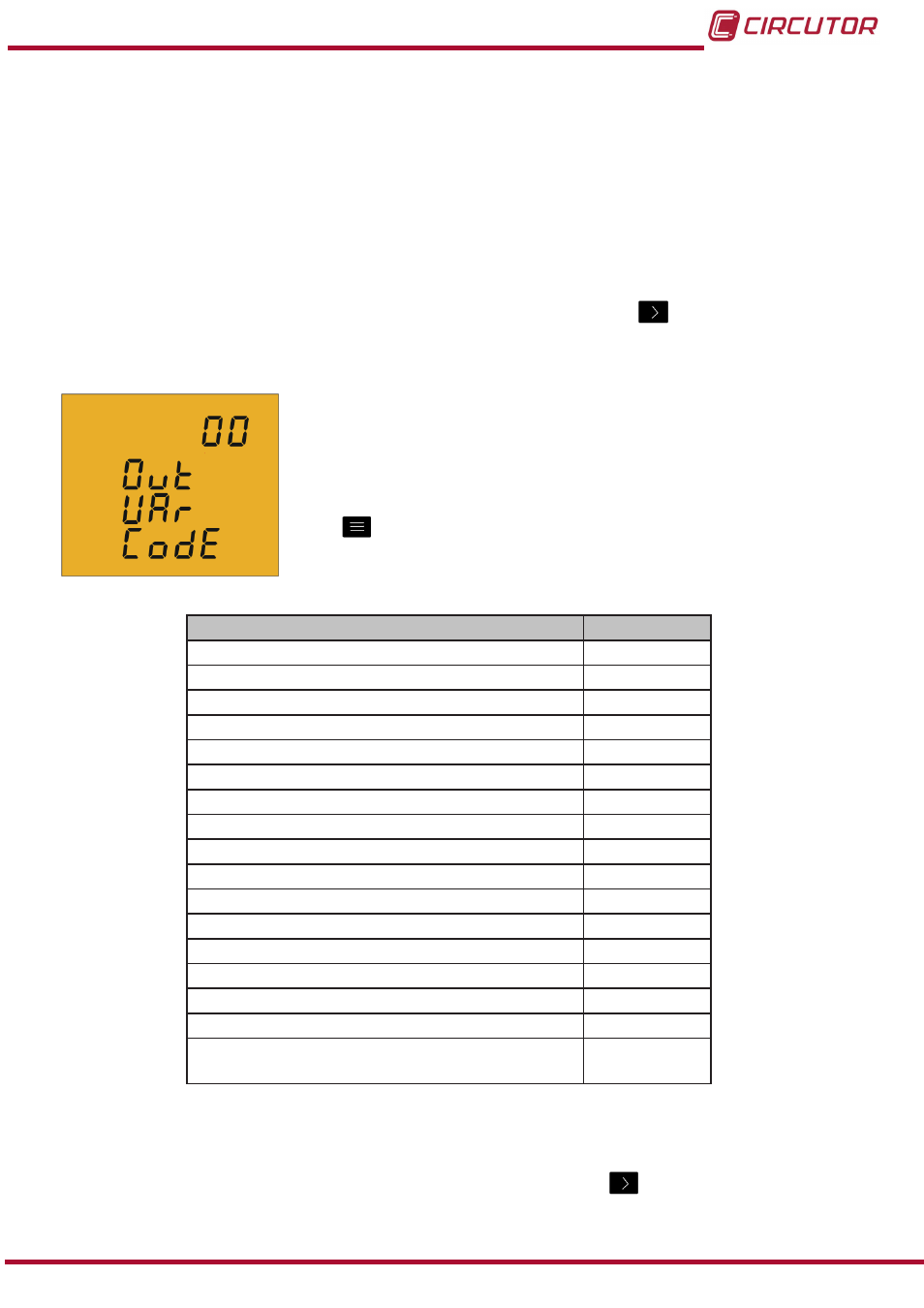

On this screen the energy code is selected based on Table 11 for
the energy you want the pulse output to generate.
The key jumps between the different options.
Table 11: Codes for the different energy types�
Parameter Code
Active Energy III Tariff 1 31
Inductive Reactive Energy III Tariff 1 32
Capacitive Reactive Energy III Tariff 1 33
Apparent Energy III Tariff 1 48
Active Energy III Generated Tariff 1 49
Inductive Reactive Energy III Generated Tariff 1 50
Capacitive Reactive Energy III Generated Tariff 1 51
Apparent Energy III Generated Tariff 1 52
Active Energy III Tariff 2 55
Inductive Reactive Energy III Tariff 2 56
Capacitive Reactive Energy III Tariff 2 57
Apparent Energy III Tariff 2 58
Active Energy III Generated Tariff 2 59
Inductive Reactive Energy III Generated Tariff 2 60
Capacitive Reactive Energy III Generated Tariff 2 61
Apparent Energy III Generated Tariff 2 62
Active Energy Consumed
(Regardless of the tariff selected)
99
When an energy variable is programmed for the pulse output, the unit will initially give the
pulses corresponding to the energy accumulated so far.
Once an Energy code has been selected and validated using the key you must enter the
kilowatts per pulse.
