5

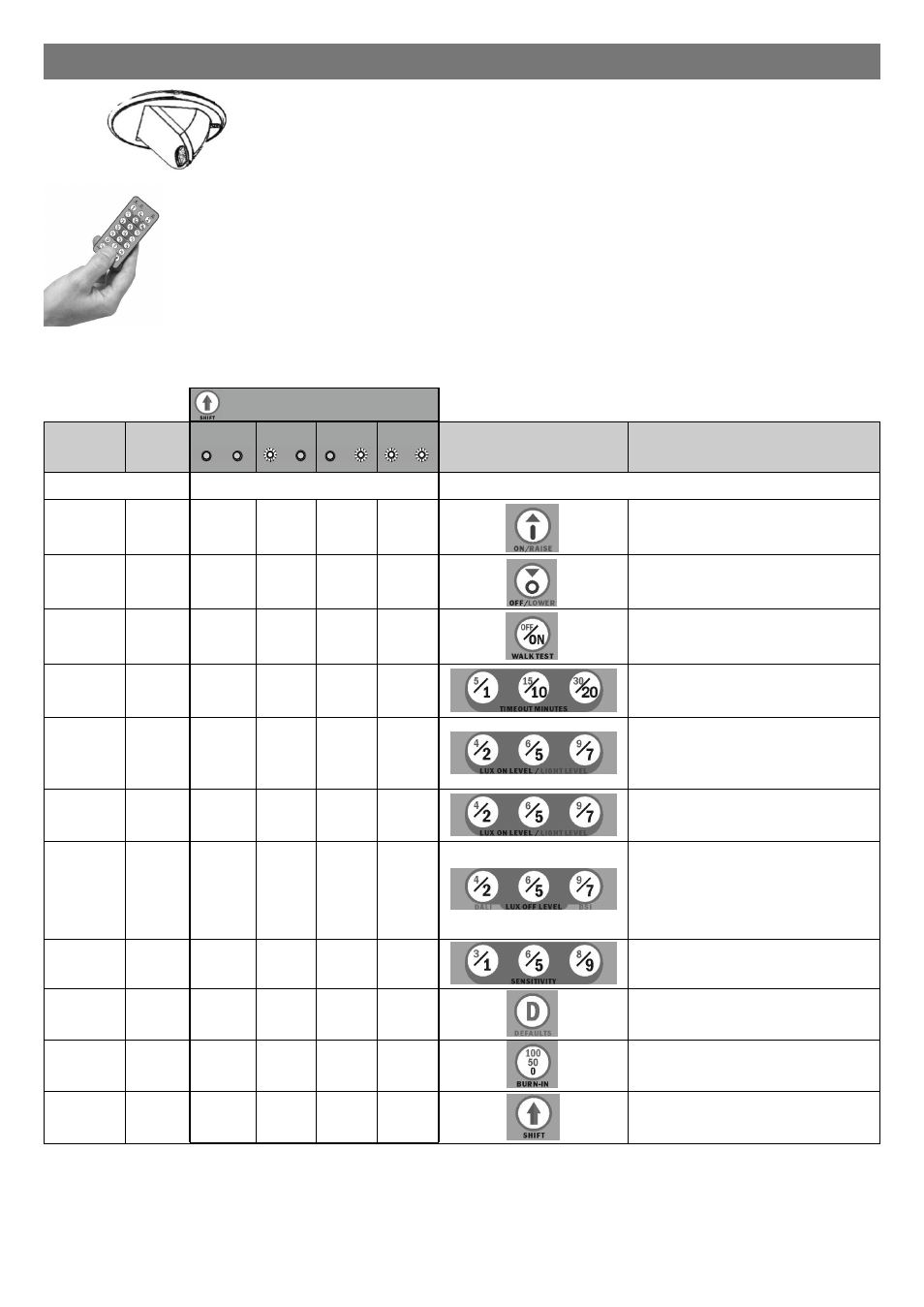

Basic programming - UHS5
Parameter
Name Default
Value 0 1 2 3 UHS5 Handset Graphics Description
Button Activation
On / Raise On Raise Cancel
override
on Turn lights on or to raise lights.
Off / Lower Off Lower Cancel
override
off Turn lights off or to lower lights.
Walk test Off On Off When set to On this causes a red LED to flash on
the sensor when it detects movement. Use this
feature to check for adequate sensitivity levels.
Time Out
(Time
adjustment) 20 mins 1, 10 &
20
minutes 5, 15 &
30
minutes 10
seconds Once the detector is turned on, this value sets
how long the lights will stay on once movement
has ceased.
Lux on
level
(Switch
level on) 9 2, 5 & 7 4, 6 & 9 Lux level setting to prevent the luminaires being
switched on if the ambient light level is sufficient
(adjustable between 1
and 9). The luminaires will always be switched on
at level 9.
Light Level 6 (600) 2 (200)
5 (500)
7 (700) 4 (400)
6 (600)
9 (900) Sets a target light level to be maintained by the
lighting system.
Lux off
level
(Switch
level off) 9 2, 5 & 7 4, 6 & 9 Lux level setting to switch the luminaires off during
occupancy if the ambient light level goes above
the setting (adjustable between 1 and 9). Level 9
will always keep the lights on. This setting can be
used for “window row switching”.
Note: the Lux Off Level value must always be
greater than the Lux On Level value.
Sensitivity 9 1, 5 & 9 3, 6 & 8 Sensitivity level for detecting movement.
1 = low sensitivity
9 = high sensitivity
Defaults D Returns the unit to the default settings.
Burn-in 0 0 50 100 Determines how long the output will be at 100%
so that lamps ‘burn-in’. The ’burn-in’ time is not
affected by power supply interruptions.
Shift Use this button to select the settings in red and
blue signified by the ‘Shift 1’ and ‘Shift 2’ LEDs
Number of Shift key presses
The functionality of the VITP-MW3A is controlled by a number of parameters which can be
changed or programmed by any of the following devices:
 UHS5 Infrared Handset. See below for programmable functions.
 UNLCDHS Infrared Handset (with LCD). See user guide for full programming details.
For most basic programming operations the UHS5 handset can be used and the following procedures
are based on using this device.
Point the handset at the Sensor and send the required programming commands to the unit as shown
below.
Valid commands will be indicated by a red LED flash. See page 1 for details of other LED responses.
Note: other functions on the UHS5 which are not shown below are not applicable to this product.
SHIFT 1 SHIFT 2 SHIFT 1 SHIFT 2 SHIFT 1 SHIFT 2 SHIFT 1 SHIFT 2
