TRANS-SCALER XT™ Chapter 3 : TECHNICAL DESCRIPTION
PAGE 7

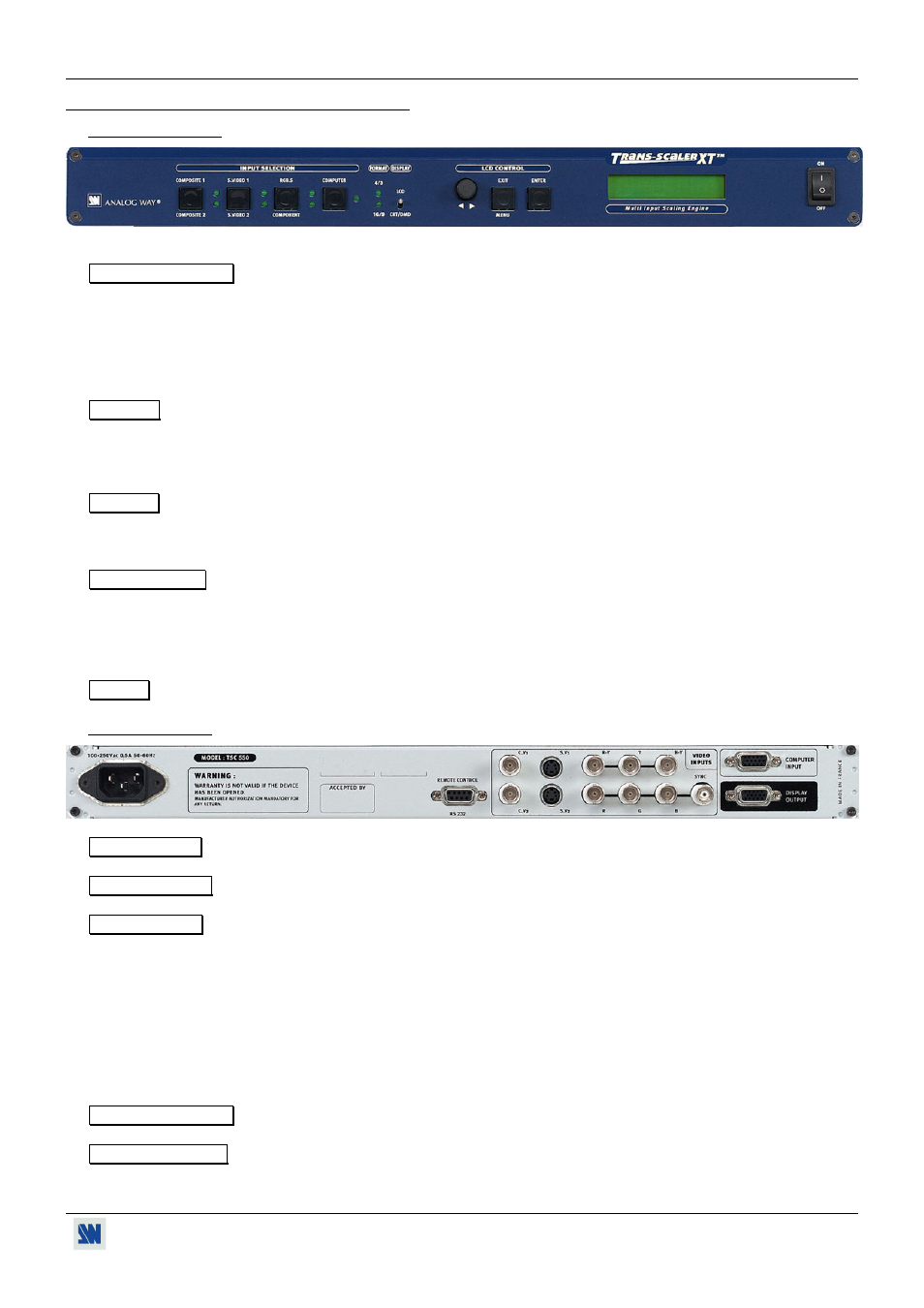

Chapter 3 : TECHNICAL DESCRIPTION
3-1. FRONT PANEL
INPUT SELECTION
COMPOSITE 1 & 2: Composite Video input selection.
S.VIDEO 1 & 2: S.VIDEO input selection.
RGB/S & COMPONENT: RGB/S and COMPONENT (R-Y, Y, B-Y) input selection.
COMPUTER: Computer input selection.
FORMAT 2 LED’s indicating the selected input aspect ratio.
4/3 : 4/3 format.
16/9 : Letterbox format.
4/3 + 16/9 : Widescreen Anamorphic format.
DISPLAY Selection of the display device type.
• LCD:
Liquid Crystal Display device.
• CRT/DMD:Display device using CRT or DMD (DLP) technologies.
LCD CONTROL
 Allows to select items in LCD menu.
EXIT MENU: Allows to exit from an LCD menu.
ENTER: Allows to validate a selected item.
ON/OFF AC power switch (O = OFF, I = ON)
3-2. REAR PANEL
POWER INPUT Standard IEC connector (100-250 VAC, 0.5 A, 50-60Hz).
REMOTE RS-232 Standard Remote Control on DB9 Female connector.
VIDEO INPUTS
C.V1: COMPOSITE VIDEO 1 Input (on BNC connector).
C.V2: COMPOSITE VIDEO 2 Input (on BNC connector).
S.V1: S.VIDEO 1 (Y/C) input (on 4-pin mini DIN connector).
S.V2: S.VIDEO 2 (Y/C) input (on 4-pin mini DIN connector).
R-Y, Y, B-Y: COMPONENT (YUV) video Inputs (on 3 BNC connectors).
R, G, B, SYNC: RGB/S video input (on 4 BNC connectors).
COMPUTER INPUT Computer (PC, MAC, WORKSTATION) input on HD15 female connector.
DISPLAY OUTPUT DATA output (RGB HV or RGB/S) on HD15 female connector.
