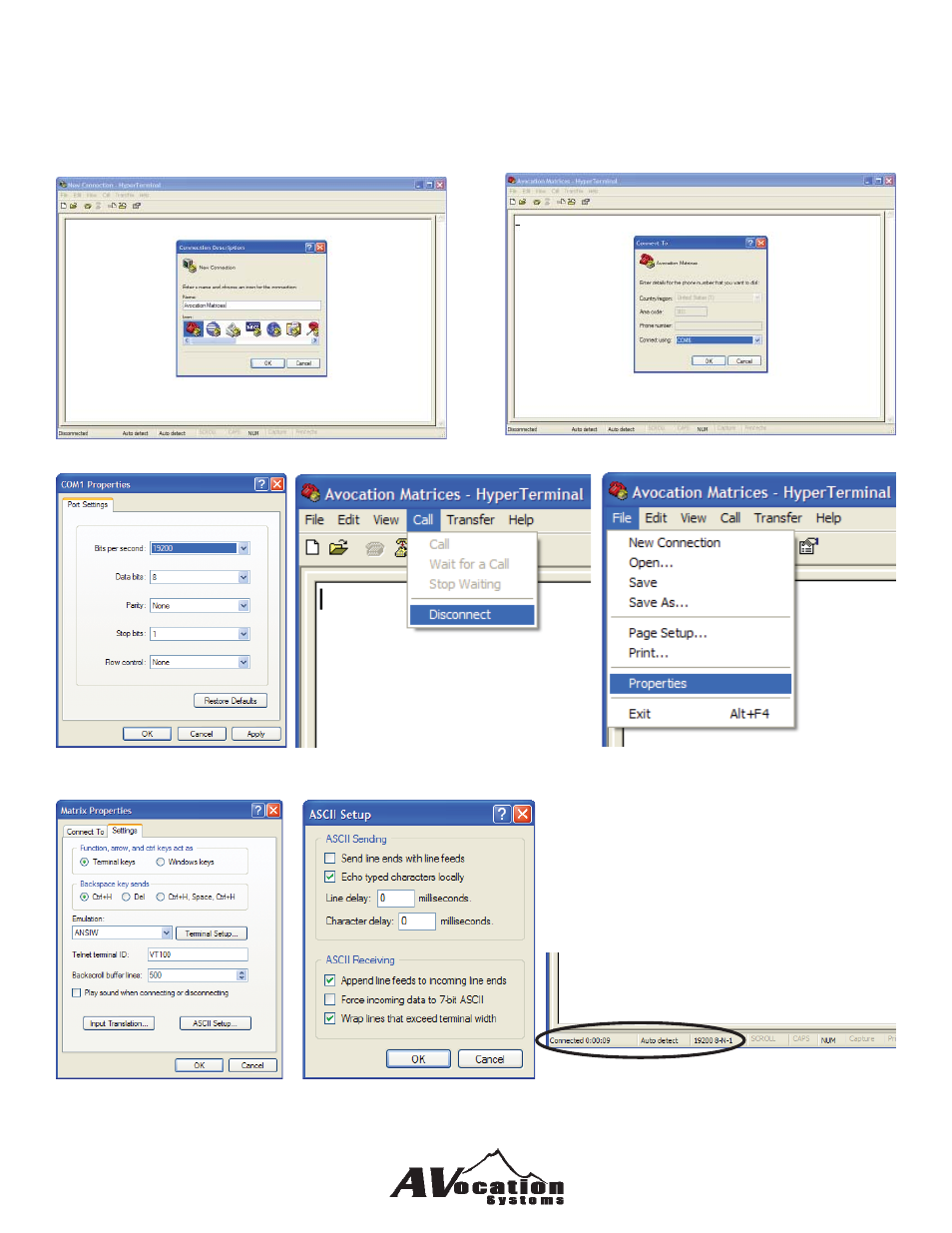

Using Windows Hyperterminal with Serial Connection
The HX Series is controllable through any terminal software such as Hyperterminal. The following setup can be used to
allow communications to the HX unit.
1) Open Hyperterminal under Accessories => Communications => Hyperterminal
Provide a name for the connection and click OK. Select the COM port to use
Select the COM properties Disconnect Select File => Properties
Select the Settings Tab
Select ASCII Setup
Check “Echo typed characters locally” and
“Append line feeds to incoming line ends”
Select OK untill all the setup windows are
closed.
Hit “Enter” to make the connection.
