APPENDIX A
 TIME CHARACTERISTIC CURVES
TIME CHARACTERISTIC CURVES
Figures A-1 through A-14 illustrate the time characteristic curves that are programmed into the nonvolatile
memory of this relay.

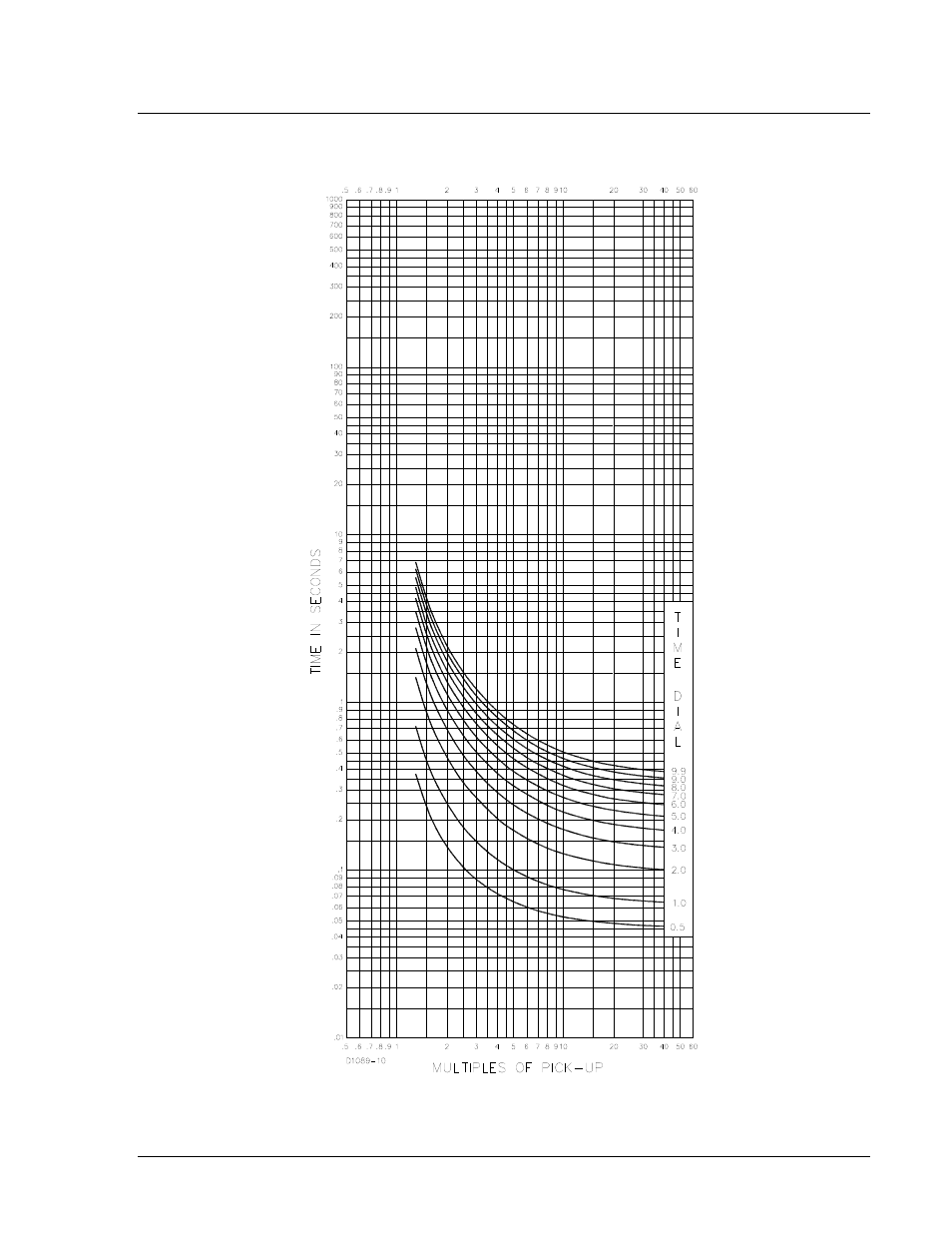

Figure A-1. Time Characteristic Curve, S-Short Inverse
(SW3-3 OFF, Similar to ABB CO-2)
9252000995 Rev H BE1-50/51B-218/-228 Time Characteristic Curves A-1
