Unpacking
Take the printer out of its box and verify that the following items are included:
• Printer
• User´s Manual
Keep the box and packing materials for future use if necessary.
Paper roll is not included – the appropriate thermal paper should be used. Refer to the Technical
Specifications section in this manual for paper details.
Powering
Make sure that the printer is turned off.

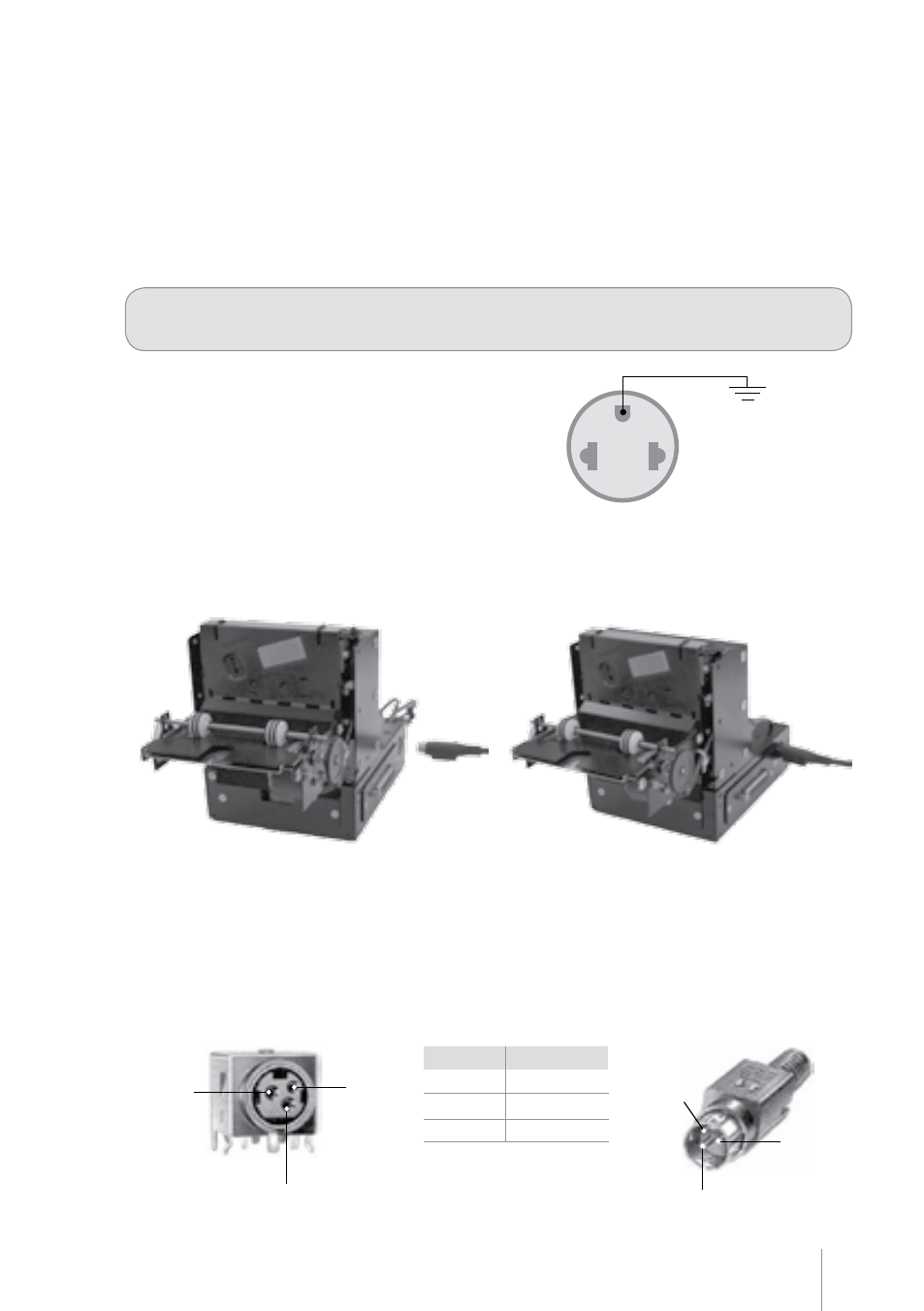

Connect the power cord to the power supply‘s
AC connector and to an electrical outlet. This
outlet must have its ground pin connected as
shown on the right:
Connect the DC cable of the power supply in the printer as shown below – note that the arrow in the connector must
be facing down:
Turn on the printer using the on / off switch located on the printer. Check, also in the panel, if the Power leD is lit.
If no paper is present, the Paper leD will also be lit.
DC Cable Specification
