Care Fitness 50733 User Manual
Page 10

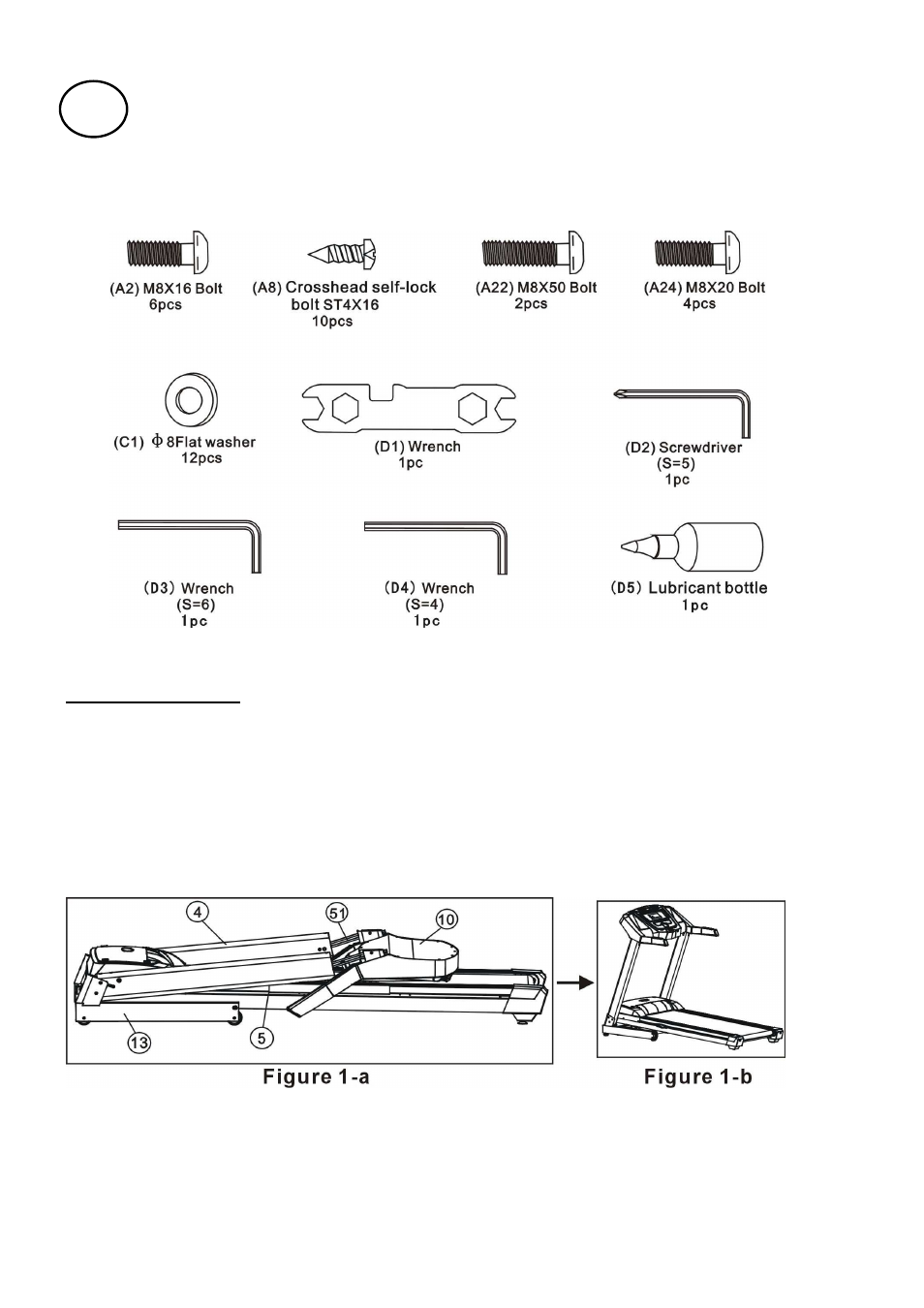

Hardware and tool
Assembly Instruction
Please make sure there’s enough space to install the treadmill and recommend 2 persons to install
it.
WARNING: Don't insert the power plug until the treadmill was fully assembled.
1.
Take out the machine from the box; put it on the ground;
Hold up the computer (10) and the Left & right support tube (4,5) along with the Computer connecting plate (51), insert
the Computer connecting plate (51) and the tube of computer(10) to the Left & right support tube (4,5). (NOTE: To
avoid damaging the wires, please don’t press against the wires.) (See figure 1-a-b)
2. Tighten the Half round bolt M10*50 (A22) and Flat washer
Ф
8 (C1) which already connect the Left & right support
tube (4,5) with Support frame (13); secure them with two Half round bolts M8*20 (A24), two Flat washers
Ф
8 (C1)
in front and one Half round bolt M8*50 (A22), Flat washer
Ф
8 (C1) on the sides. (See figure 2-B)
3.
Tighten the computer (10) with the Left & right support tube (3, 4) with six sets of two Half round bolts M8*16 (A2),
Flat washers
Ф
8 (C1). (See figure 2-B).
GB
