Hardware Installation

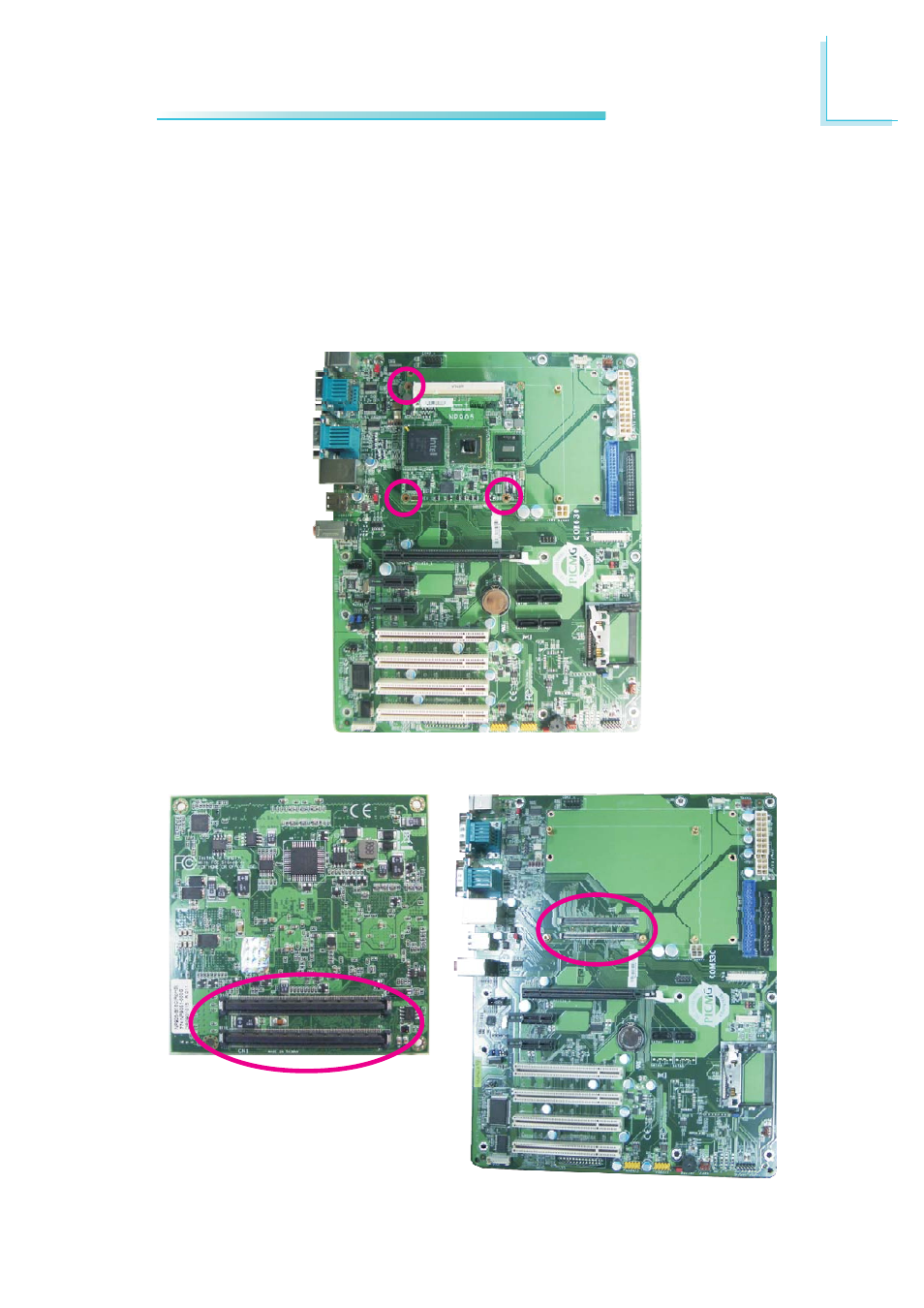

6. Grasping NP905-B16C by its edges, position it on top of the carrier
board with its mounting holes aligned with the bolts on the carrier
board. This will also align the COM Express connectors of the two
boards to each other.
Press NP905-B16C down firmly until it is completely seated on the
COM Express connectors of the carrier board.
COM Express Connectors on
the Solder Side of the
NP905-B16C Board
COM Express Connectors on
the Carrier Board
NP905-B16C Installed
on the Carrier Board
