ICP 300 IN-CAB PRINTER
11

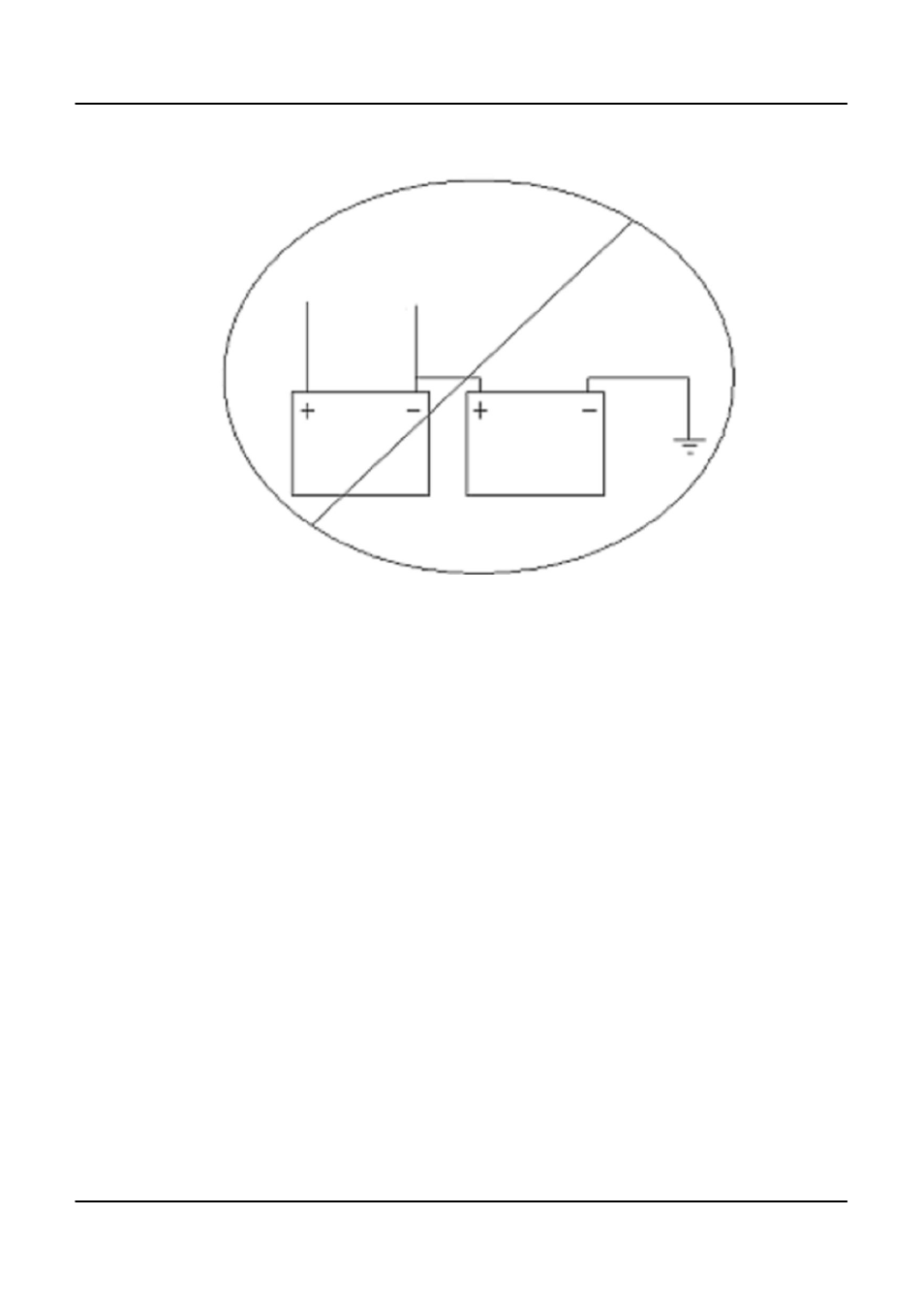

24V System - Incorrect Wiring
1. Install paper into printer.
2. Connect power cable; Brown wire to +10 to +35V, Blue wire to – / Frame
Ground.
3. Connect black AMP connector to the serial port of scale indicator
(“Serial”, “J904”, or “J905”).
4. Connect phone style connector to base of printer.
5. Press “PRINT” key on scale indicator several times to verify correct print out.
Refer to Scale Indicator Operation Manual, D3739 rev D Technical Manual, or
D3648 Serial Commands Manual to set and select different print formats as
needed.
Battery
Battery
Frame
Ground
Blue
Brown
Wires to Indicator
