Installation
SW300 User’s Manual D3734-US REV E
INSTALLATION

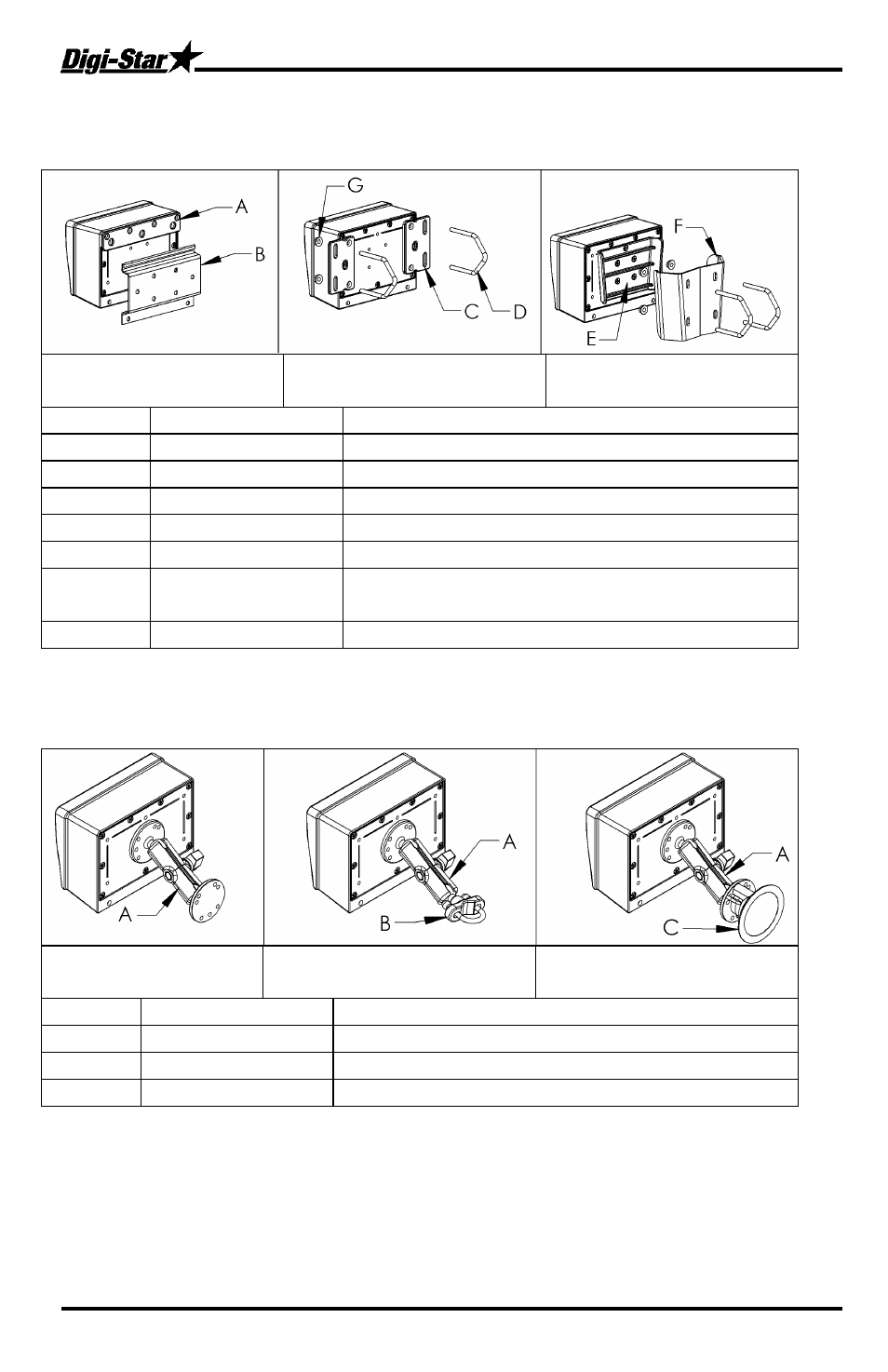

Indicator Mounting
RAIL MOUNT WING MOUNT WEDGE MOUNT
STANDARD
KEY PART NUMBER DESCRIPTION
A 403769 BRACKET
– STR TOP MOUNT
B 403980 BRACKET
– ROBO MOUNTING
C 403770 BRACKET
– WING MOUNT
D 405069 U-BOLT, 1/4-20 X 3.25 ZP
E 403771 MODIFIED PLASTIC WEDGE MOUNT
F 405124 WEDGE MOUNT BRACKET, INCLUDES U-
BOLTS & NUTS
G 405084 NUT, 1/4-20 TOP LOCKING FLANGE
Optional Ram Mounting
RAM MOUNT
STANDARD
U-BOLT BASE TWIST LOCK
SUCTION CUP
KEY PART NUMBER DESCRIPTION
A 403180 RAM MOUNT
B 403179 MOUNT BASE-1" BALL U-BOLT
C 404230 RAM SUCTION CUP W/TWIST LOCK
