24 SMARC Evaluation Kit

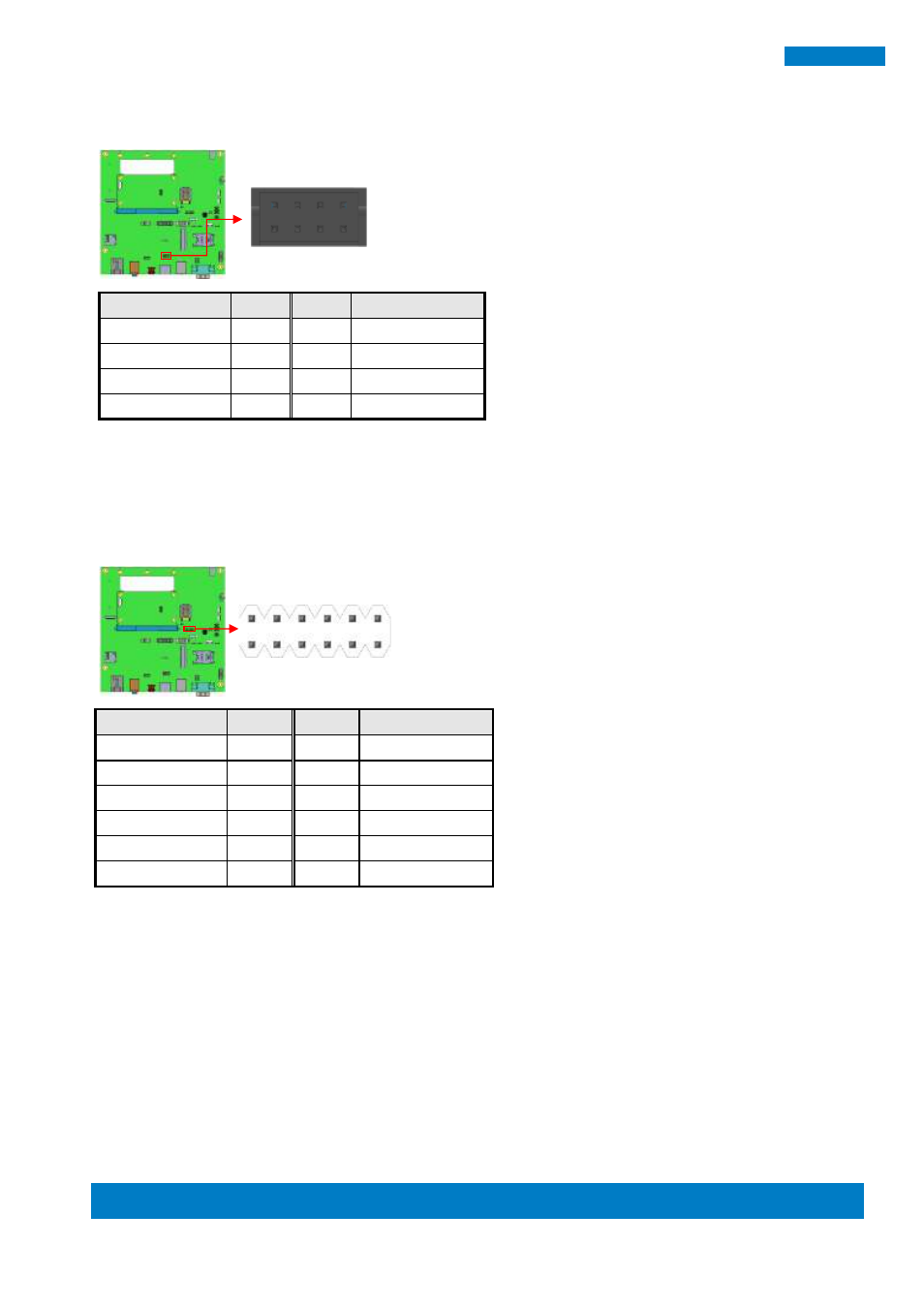

USB1: USB x 2 (DF11-8DP-2DSA)
Signal Name Pin # Pin # Signal Name
+5V 1 2 GND
USB1_D- 3 4 USB2_D+
USB1_D+ 5 6 USB2_D-
GND 7 8 +5V
Mating Cable: USB-29, (C501USB2908303000P)
CN5: GPIO (E-CALL 0196-01-200-120)
Signal Name Pin # Pin # Signal Name
+3.3V 1 2 GPIO3
GPIO1 3 4 GPIO7
GPIO5 5 6 GPIO9
GPIO8 7 8 RESET#
GPIO10 9 10 WDOG#
GPIO11 11 12 GND
8
2
7
1
2
12
1
11
