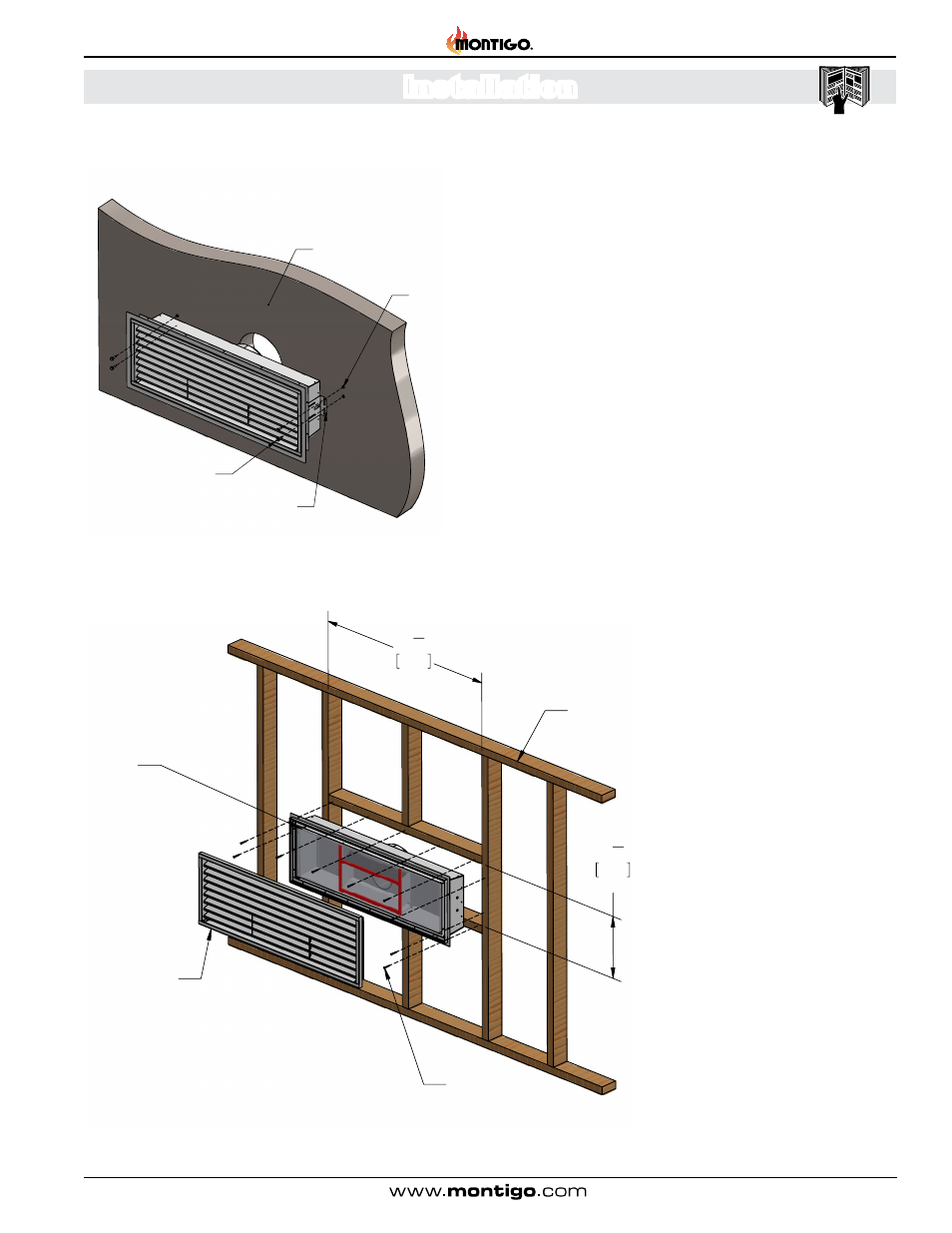

Step 2. If doing a concrete install, the termination has two adjustable mount-
ing feet on the sides of the termination.
Step 3. If doing a combustible frame install, remove the concrete mounting feet and install as shown in Figure 5 Section 5.
Figure 4 Section 5.
Concrete Wall
Concrete Anchors
Mounting Feet
Fasteners
Figure 5 Section 5.
12 14 "
310
Min
37 34 "
960
Min
Wood Screws (14x)
Wood Frame
Louver Pack
Termination
Body
Installation
