INTRODUCTION
PRODUCT DESCRIPTION
This CCTV System Control Keyboard can be integrated with a full range of CCTV products easily, such as Digital Video Recorders
(DVR), cameras and other CCTV devices with RS-485 interface for remote control and system configuration. Back lit LCD display and
3-axis joystick control provide user- friendly operations. Built-in firmware upgrade circuits allow users to upgrade firmware through the
RS-232 port.

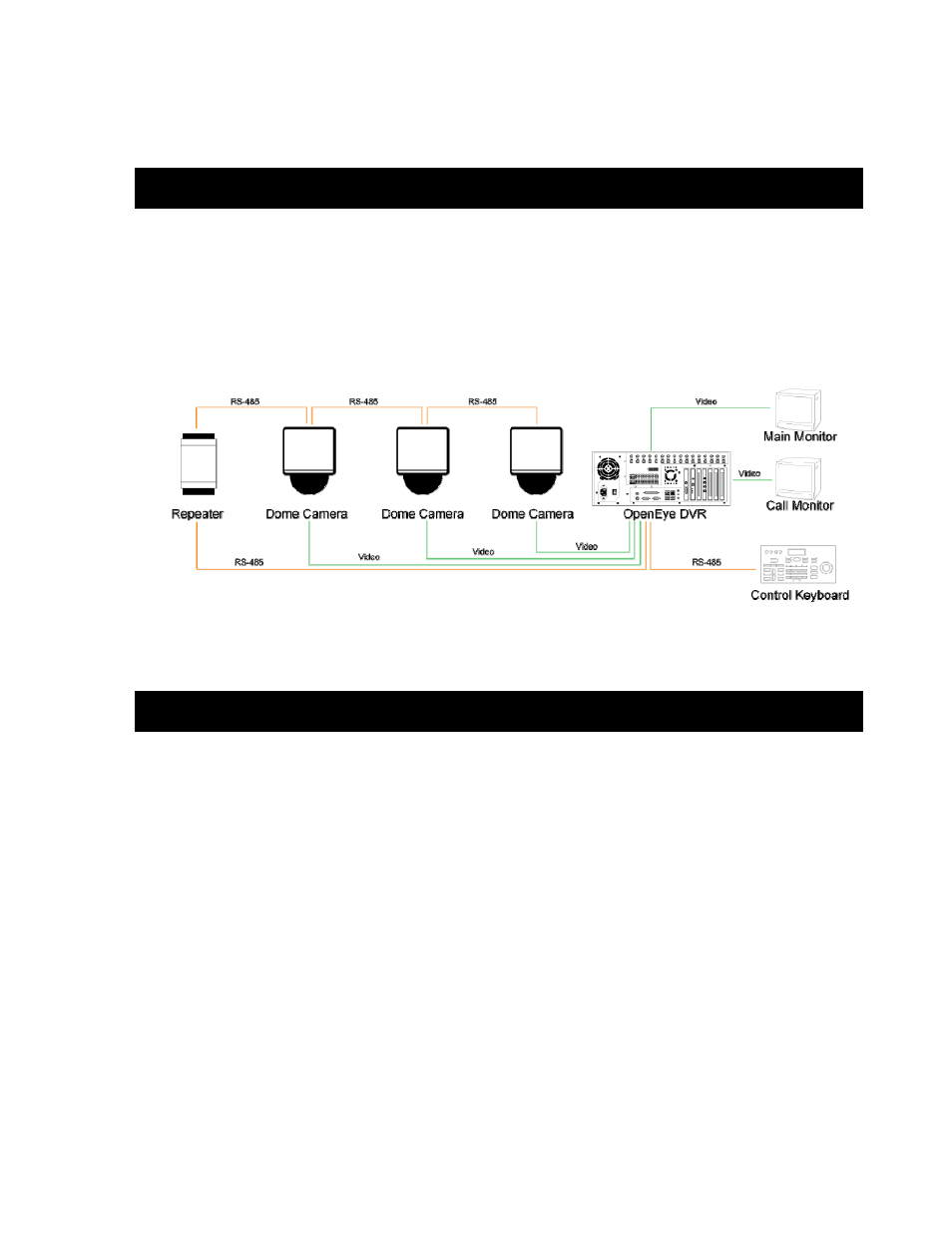

The system configuration diagram below shows the application of the control keyboard in a comprehensive surveillance system.
System Configuration
NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, Openeye highly recommends
placing a repeater at the mid-point. However, a repeater may be needed in the network distance less than 1.2 km if the used cables
are not the CAT 5, 24-gauge cables.
FEATURES
The Openeye PTZ Controller includes the following features:
•
CCTV devices control
•
3-axis Joystick control of PTZ functions
•
Preset, tour, pattern and other automatic control modes
•
User-friendly interface through LCD display
•
Rubber keypad makes input easy
•
Remote control via RS-485 interface.
•
Control of dome cameras, DVRs, and P/T/Z receivers
•
Maximum 255 devices can be connected. (223 Cameras or Receivers, 16 Control Keyboards and 17 DVRs/Multiplexers)
•
Built-in protocols: OPTIX 1, OPTIX 3, Pelco D and Pelco P
