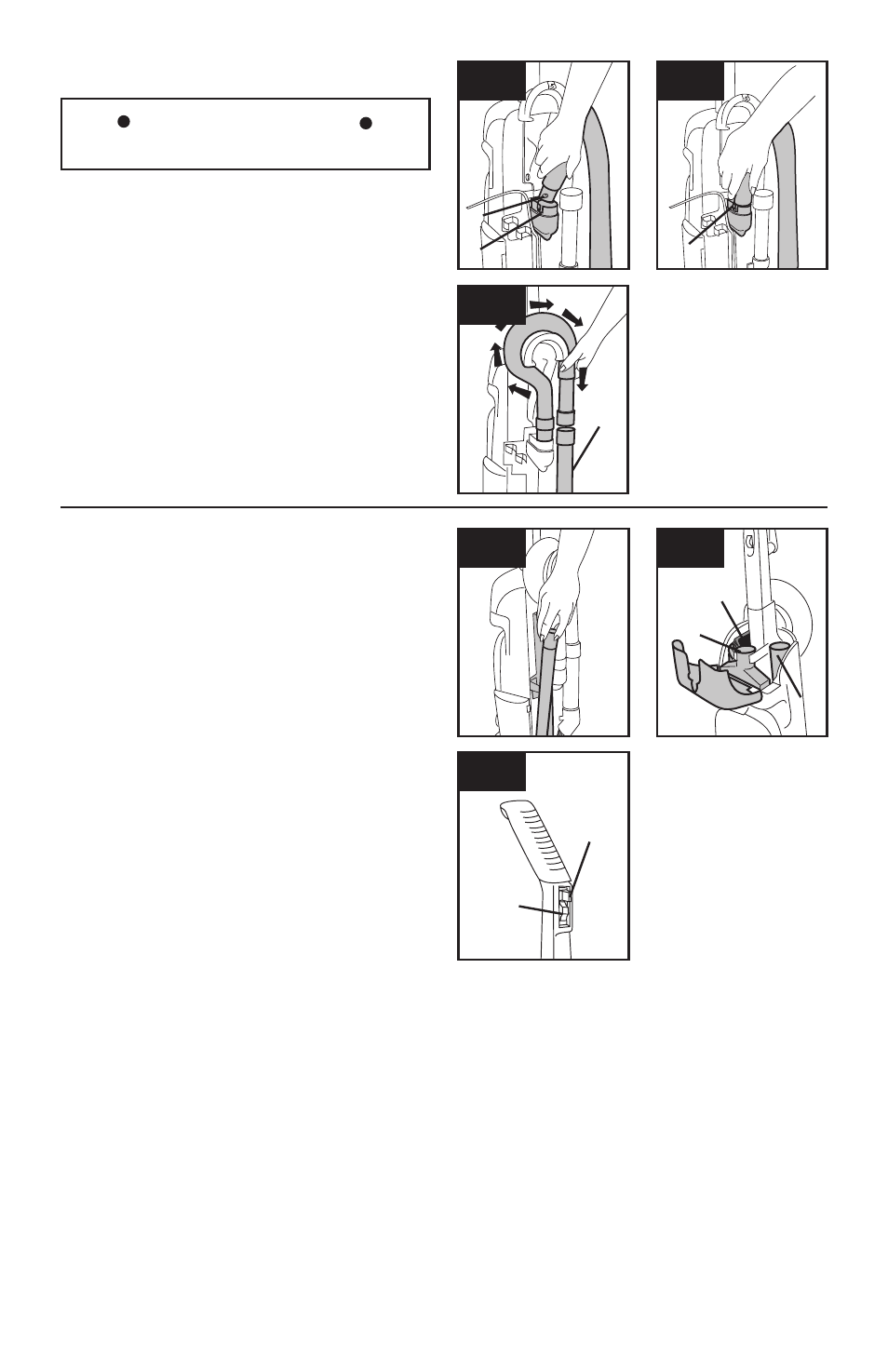

1.11 Align end of hose with projections (A) over slots (B)
in dirt duct.
1.12 Slide hose into (B) and twist hose to lock it into
place.
1.13 Position hose over rack and into hose tube (D).
1.12 1.11
attaCh hose
IMPORTANT
Hose must be connected as shown for all operations.
B
A
B
1.13
D
position tools
1.14 Place smaller unridged end of wand into bottom of
rack. Snap wand into clip. Repeat with other wand.
Open tool cover.
1.15 Insert ends of dusting brush (A), crevice tool (B) into
storage areas. Secure furniture nozzle (C) in clip.
Close tool cover.
1.16 Remove white switch lock before operating.
1.15 1.14
A
C
B
1.16
White
Switch
Lock
ON/OFF
Button
