8. Open a web browser and navigate to the IP address
that is indicated. You will be prompted to enter a
username and password.
9. The default login (case sensitive) is as follows:
User ID: Admin
Password: Pass

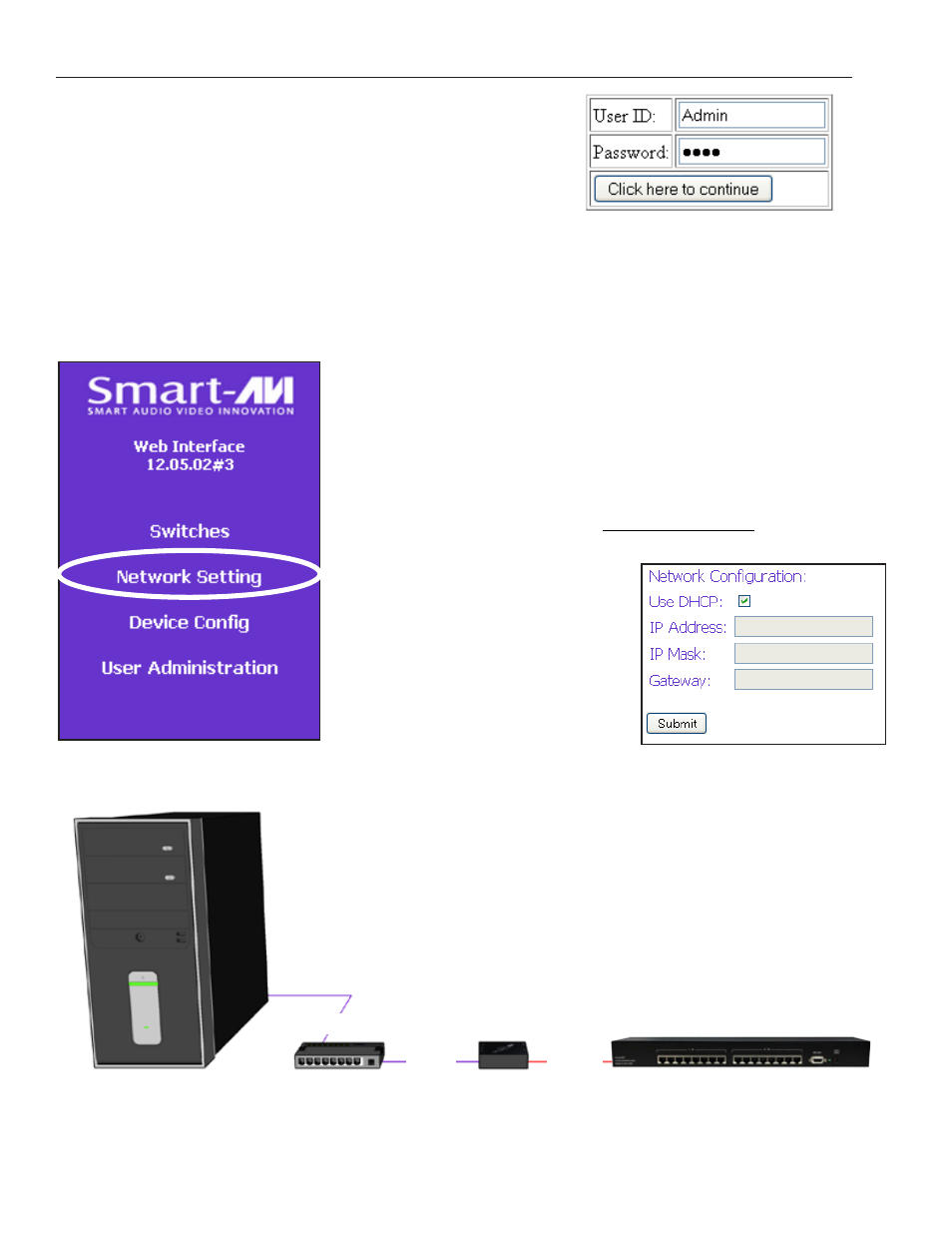

10. Once connected to the SMTCP-R, you will see the following menu of options:
11. Once you have manually assigned an IP address to the
SMTCP-R, you may disconnect the Straight-Through RS-232
(Serial) cable from the computer
12. Connect the SMTCP-R to the SM-RS232 with a Cross RS-
232 (Serial) cable.
For the initial setup, click the Network Setting button and
manually assign an IP address to the SMTCP-R. This will assure
that the SMTCP-R will always
have the same IP address. Be
sure to choose an address that
will not conflict with any other
devices on the network, and
that the address is not in the
range of the DHCP server.
1. Switches
2. Network Setting
3. Device Config
COMPUTER IP ROUTER SMTCP-R
RS-232
SERIAL
CAT5
CAT5
SM-RS232
Controlling the SM-RS232 with the SMTCP-R module (continued)
