6

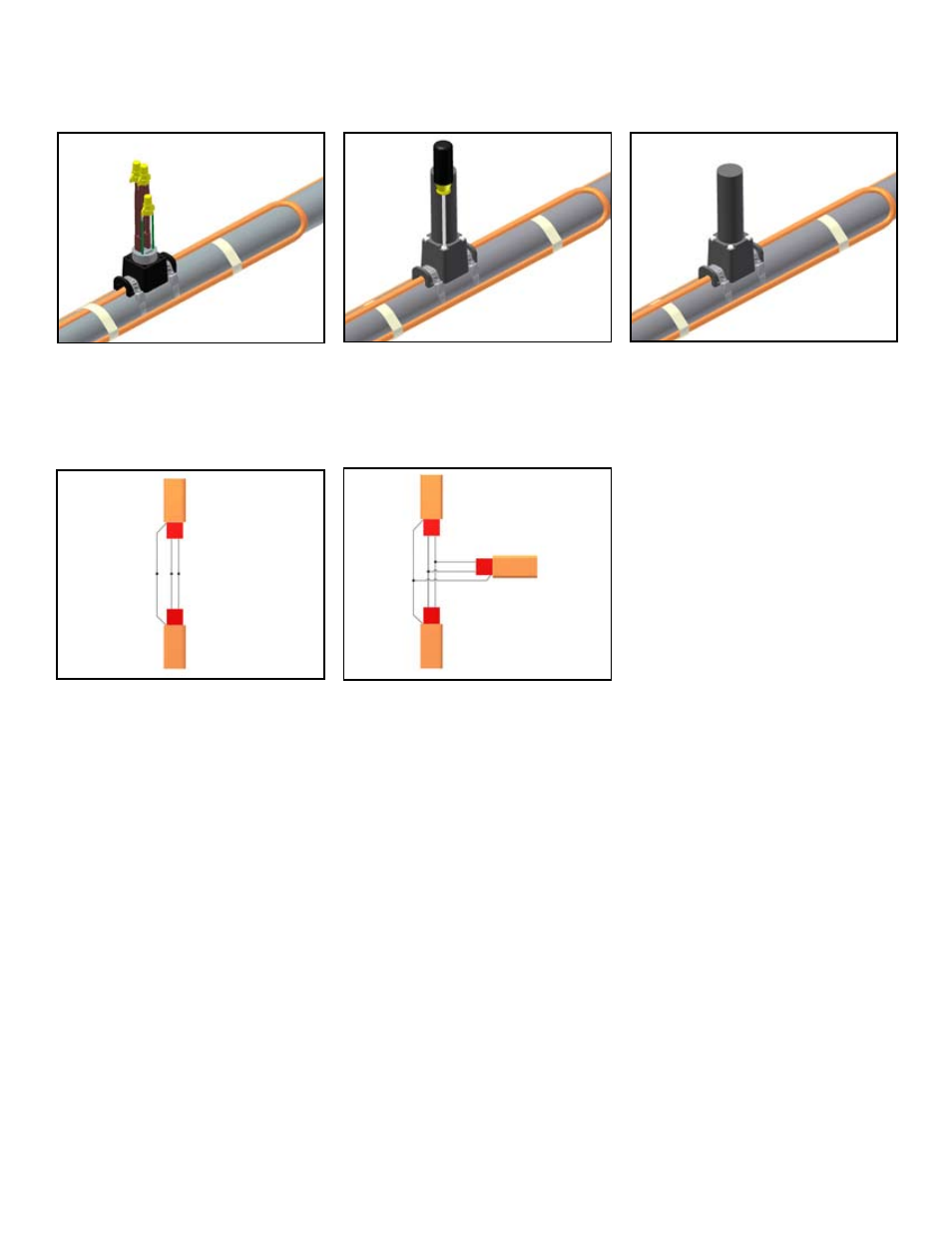

5.
Complete system wiring. Connect bus wires using
wire nuts. Connect braid wires using wire nut. See
wiring details for splice connections.
6.
Install splice cap using 4 captive screws.
7.
Installation Complete
In-Line Splice
Typical Wiring Details
T-Splice
PCS-COM In-line and T-Splice Kit
