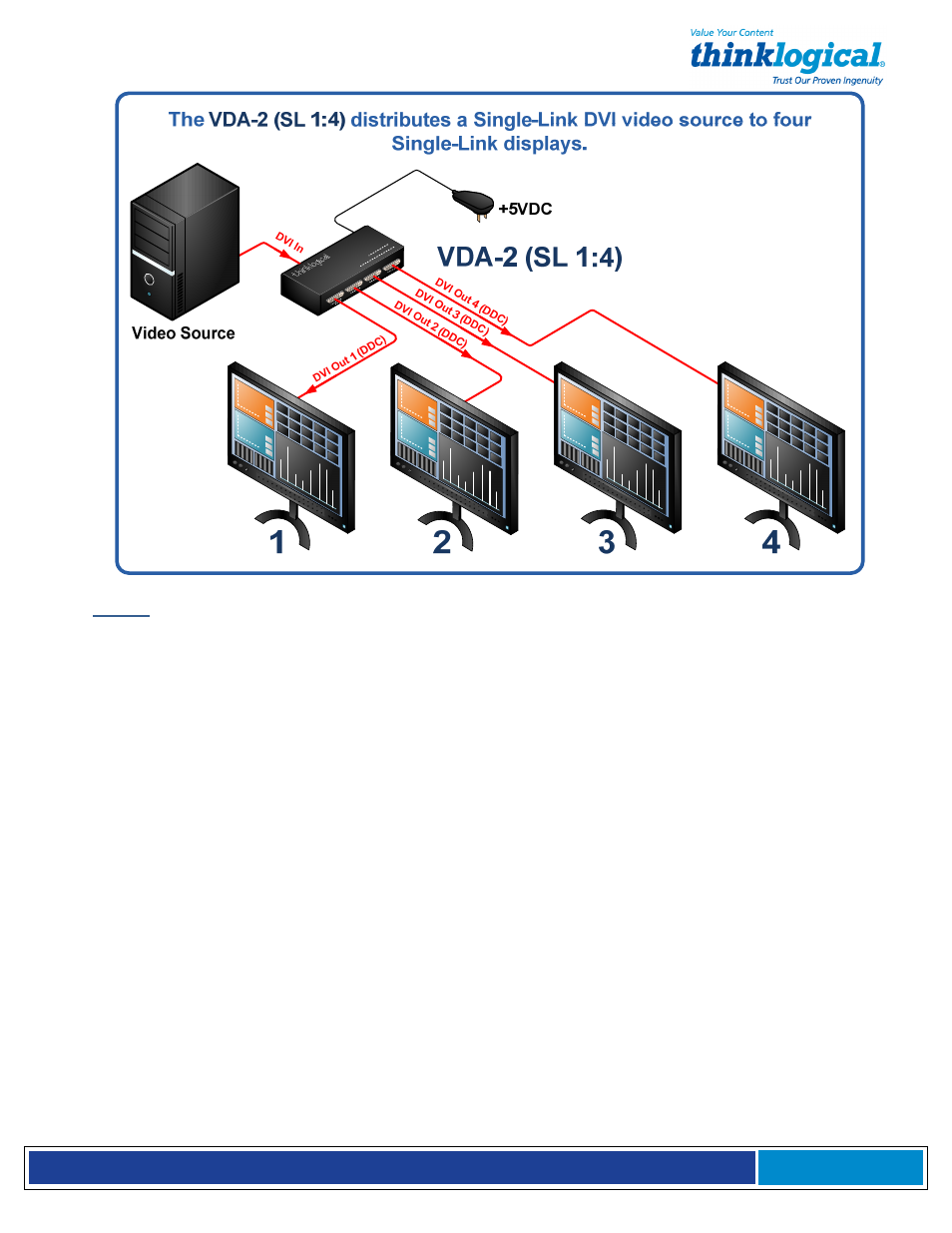

VDA-2:
1.
Connect a Single-Link DVI-D male to male cable from your DVI Monitor 1 to the DVI
OUT 1 DDC connector on the VDA Splitter’s front panel. Likewise, connect a Single-
Link DVI-D male to male cable from your DVI monitors 2, 3 & 4 to the DVI OUT 2, 3 &
4 connectors. Turn the monitors on.
2.
Connect the supplied Single-Link DVI-D male to male cable to the video source (DVI-D
video card) and to the DVI IN connector on the VDA Splitter.
3.
Connect the 5VDC Power Supply (PWR-000022-R) to the INPUT POWER JACK
located on the front panel of the VDA Splitter’s chassis and plug it into a standard AC
source. (May not be required with some video cards.) Ensure all video output displays
are functioning properly.
