Sliding PFC500/E onto rails
November 17, 2000
PFC 500/E Instruction Manual
33

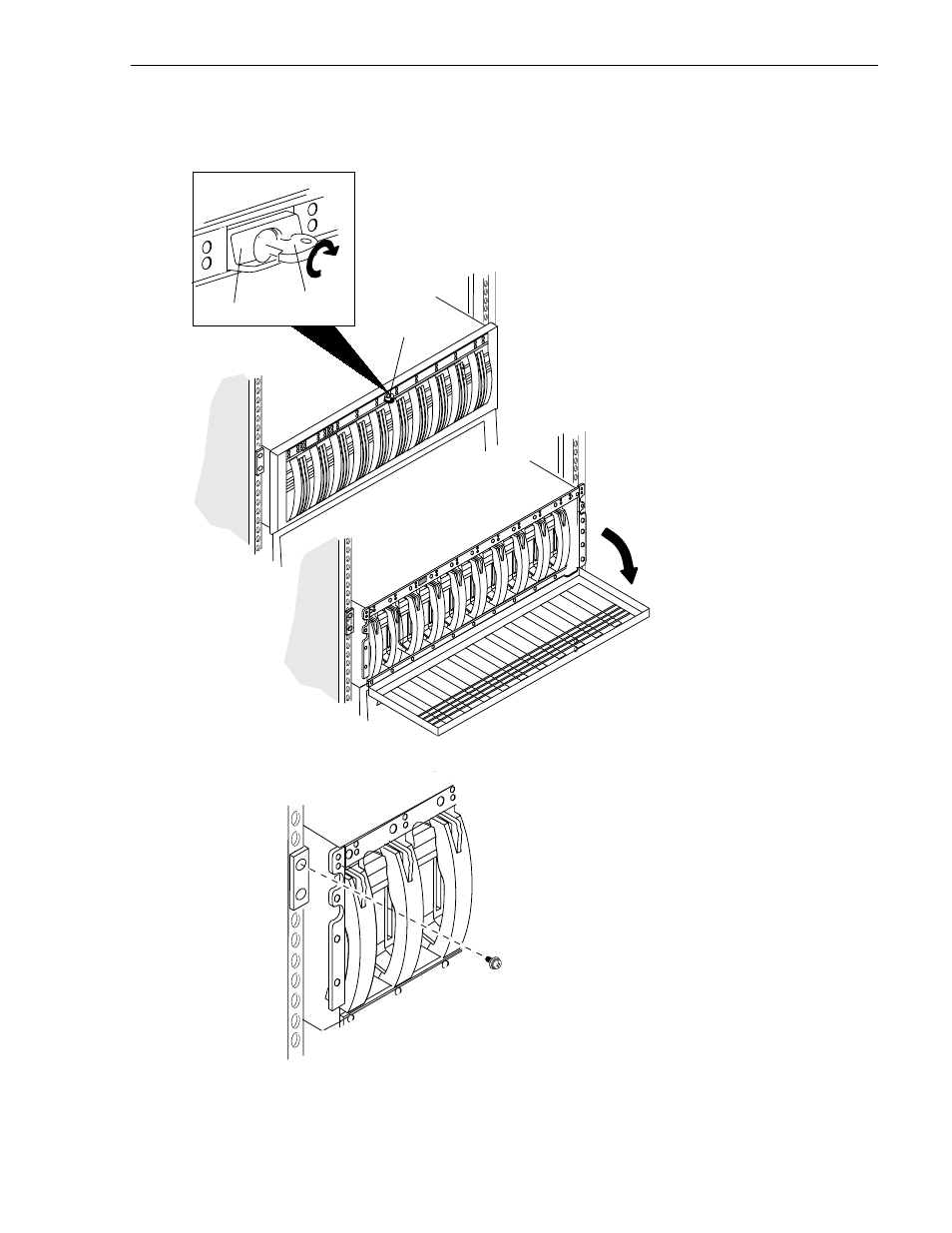

3. Open the PFC500/E front door as shown here.
4. Secure the PFC 500/E to the vertical channels of the cabinet as shown here.
Latch
Key
If the door is locked
• Insert the key in the door’s latch.
• Turn the key 180
o
clockwise.
• Remove the key, if desired. (If you
do not remove the key, it may fall
to the floor after you open the
door.)
• Press the door latch.
• Lower the door until it is perpendicular
to the font of the chassis.
CAUTION: Do not force the door open.
If the door snaps off the hinges, re-install it by positioning it at a
45
o
angle to the chassis and snapping it into the hinge openings.
Latch
NOTE: Only one hole in the chassis bracket aligns with
a mounting hole on the cabinet. The mounting hole you
use depends on where the rails are mounted in the cabinet.
Fasten the front of the enclosure to
the front mounting holes in the cabinet
using two screws (one per side)
