Replacing or adding a power supply module
November 17, 2000
PFC 500/E Instruction Manual
67
To install a power supply
1. Gently insert the new power supply into the chassis, as shown below.
IMPORTANT: The power supply in the top slot is inverted with respect to the power
supply in the bottom slot.

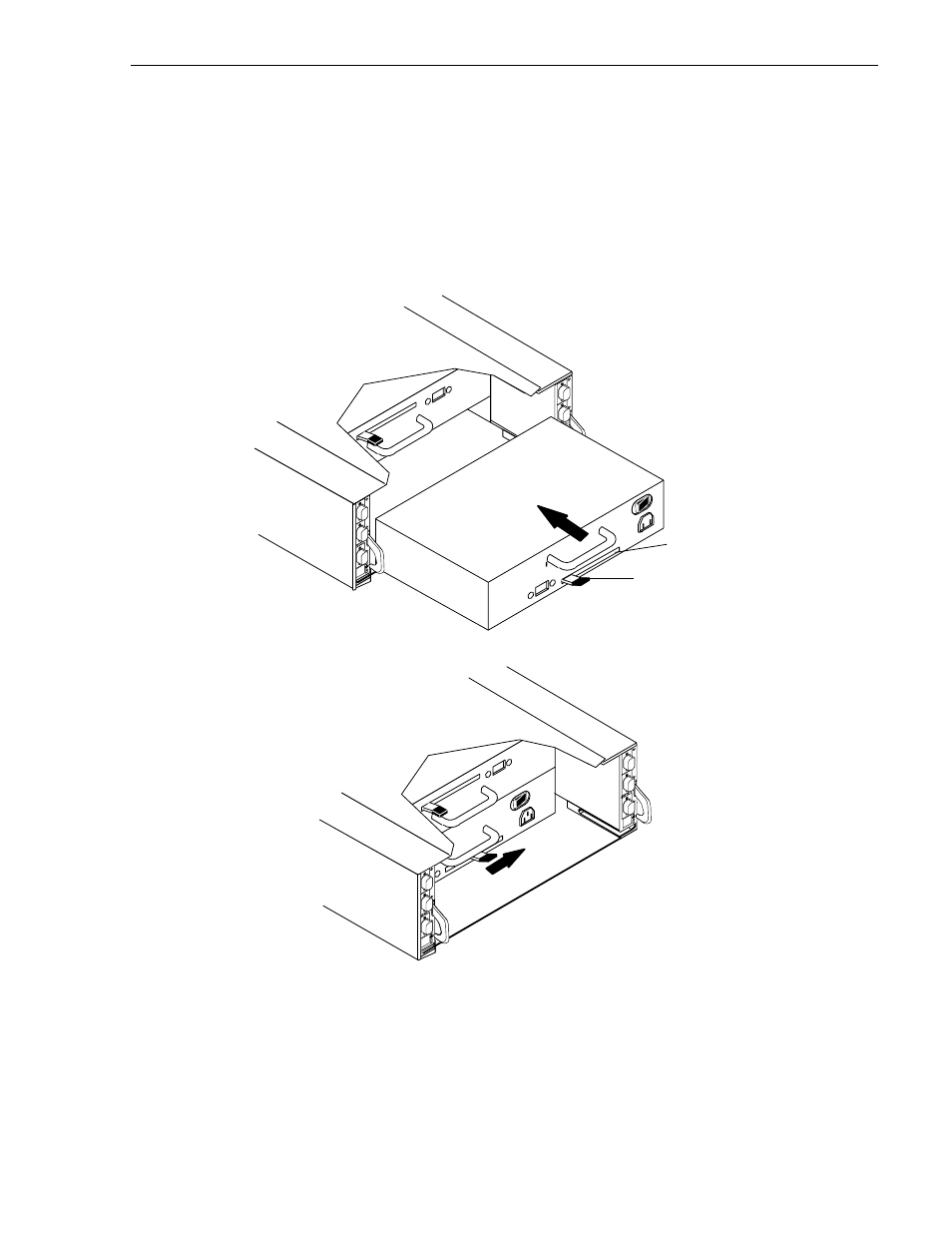

Installing the bottom power supply
A
B
E
X
P
A
B
E
X
P
A
B
E
X
P
A
B
E
X
P
Latch
Slot
A. Make sure that the supply’s latch is
as far left in the slot as possible.
B. Align the supply with the chassis slot
and gently push into the slot until the
latch moves to the middle of the slot.
C. With your thumb, push the latch right
until it snaps up.
You may need to brace your hand
against the supply’s handle.
