235
7
Reporting and
Templates

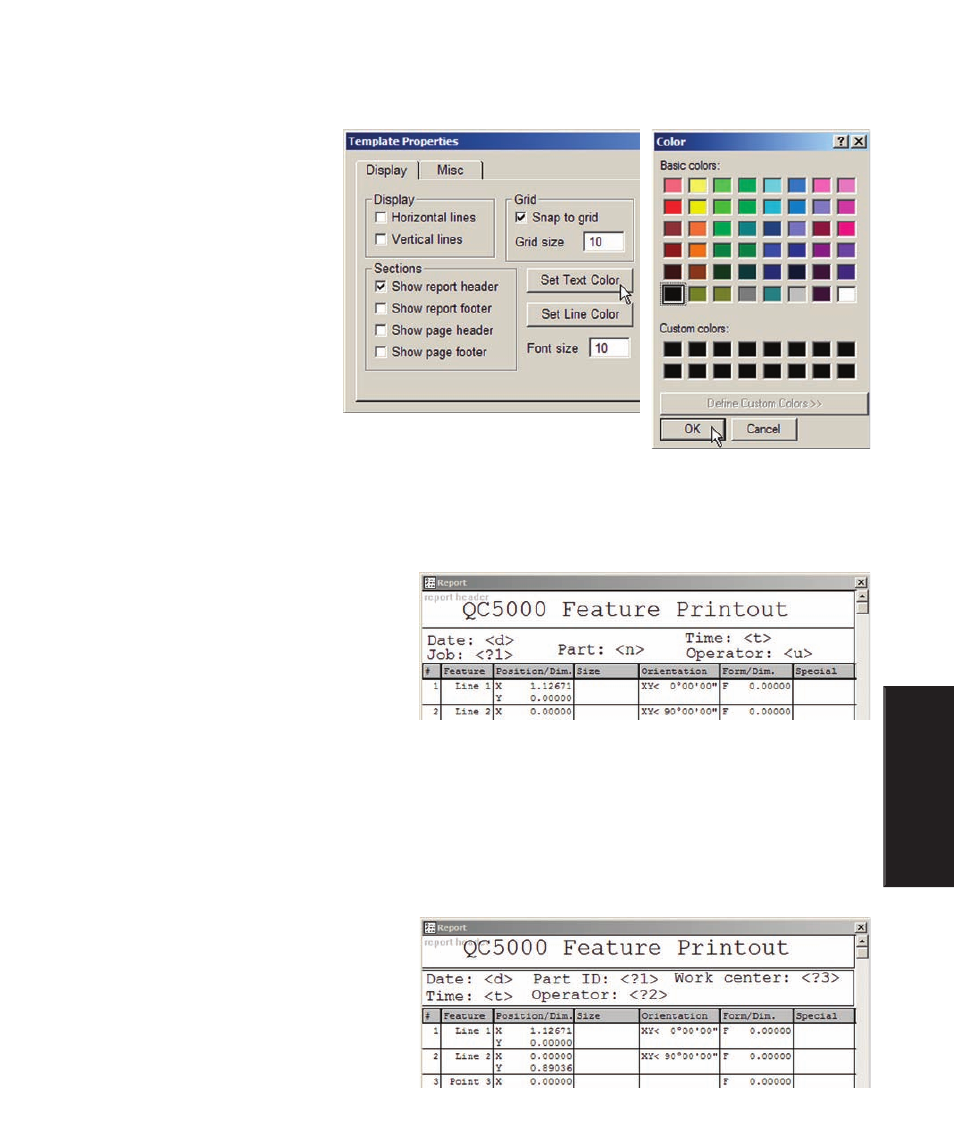

To select the color for the entire template:
1 Right-click the template
titlebar and then click Template
Properties to display the Tem-
plate Properties dialog box, then
click the Set Text Color button.
The Color pallet will be dis-
played.
2 Select the desired color and
click OK.
Including automatic text entry
The system can automatically provide text for printed fields based on information from logins, system time
and date and other sources. Information will be inserted into printed report headers where the auto-entry
codes are located. The auto-entry codes are shown below. All codes must be lower case.
Information auto-entry code
User name <u>
Part name <n>
Time <t>
Date <d>
Total number pages <x>
Current page <p>
Prompting the user for alphanumeric information
The system will prompt the user for alphanumeric information for printed reports when the prompt entry
code is encountered on a header or footer. The syntax of the prompt entry code is:
<?#>
Where # is the prompt number in a
sequence of prompts.
In this example, the system will prompt
the user for a part ID, an operator name,
and a shift work center number in a single
prompt dialog box.
Example of auto-entry code use in a report header
Headers and Footers
