7.5 Specifications and Dimensional Drawings for Peripheral Devices
7-33
7

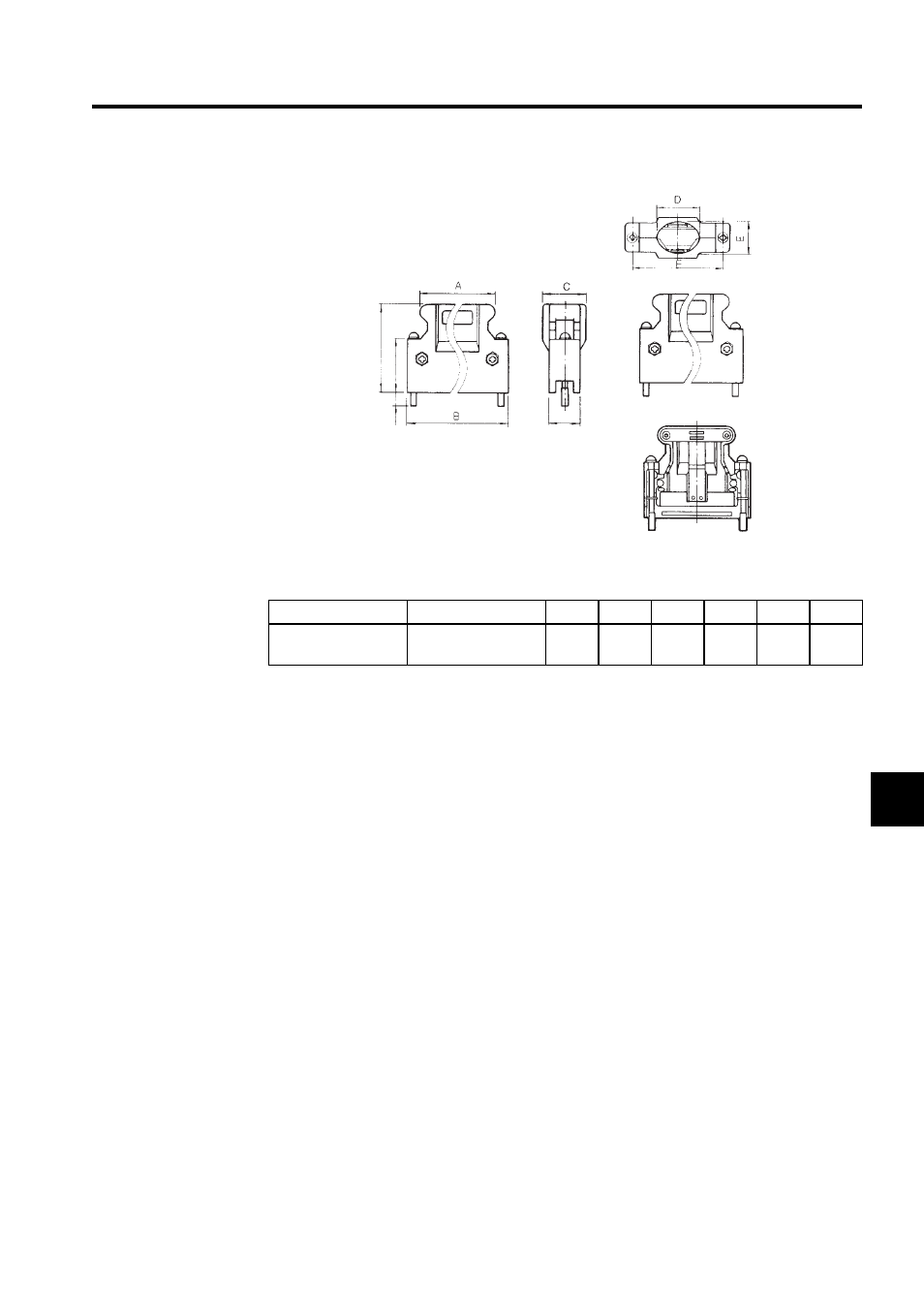

• Case
Unit: mm (in)
Manufactured by Sumitomo 3M Co.
Connector Model Case Model A B C D E F
10150-3000VE 10350-52A0-008 41.1
(1.62) 52.4
(2.06) 18.0
(0.71) 17.0
(0.67) 14.0
(0.55) 46.5
(1.83)
39.0
(1.54)
Assembly Diagram
12.7
(0.50)
5.7 (0.22)
23.8
(0.94)
