Medal Sports FH44119 - Manual (Page 12)

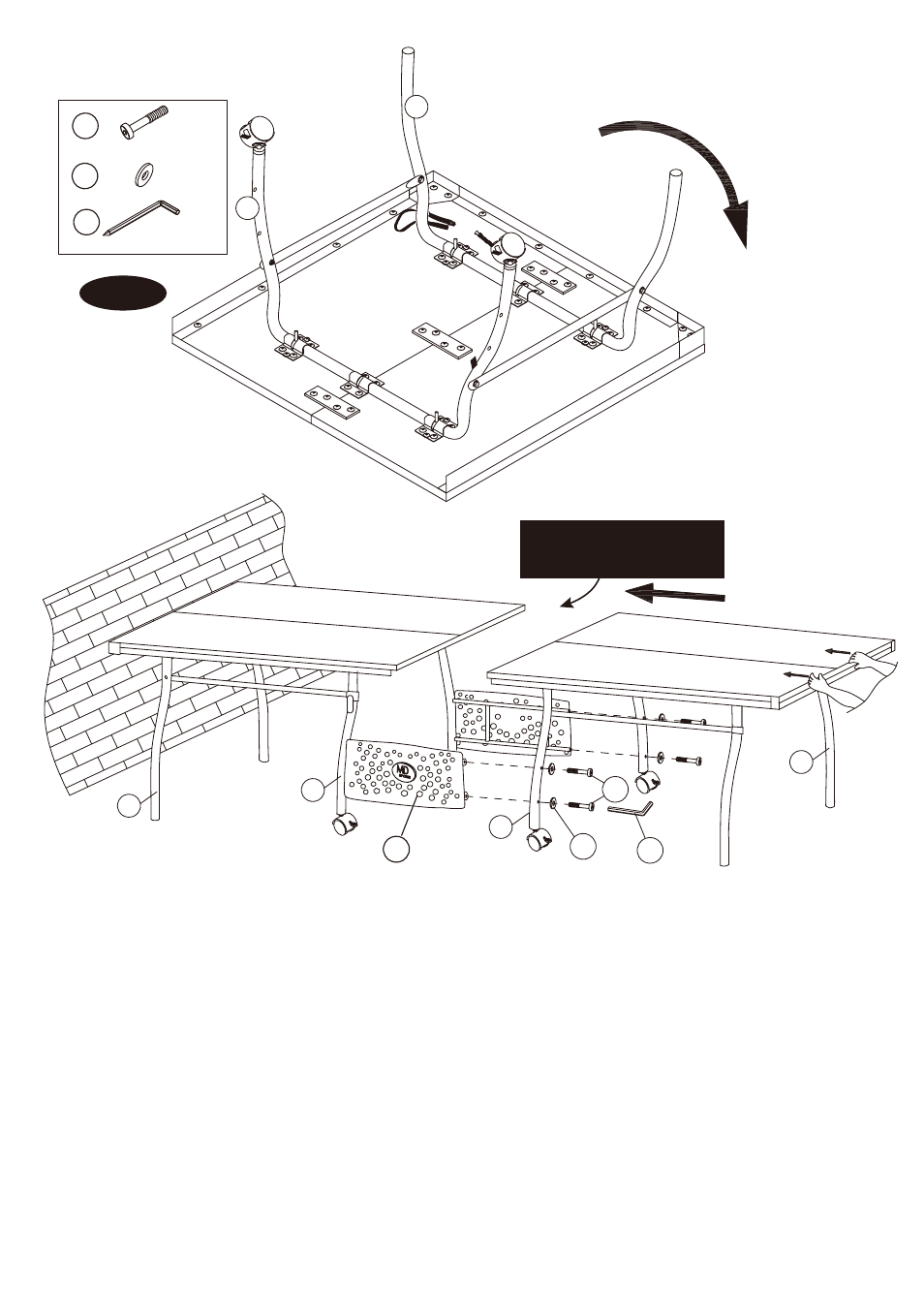

FIG.7
19. Before turning the table over, make sure the Curved Inner Leg (#6) towards the center of the table in order to fix leg
in right position.
NOTE: Two adults are required to turn this table over.
20. One person should stand at each center of the table and turn the table over completely so that it rests on its legs.
21. Standing at the sides of the table, place the two table halves so they are inches apart.
NOTE: Be careful that you do not push either half backwards as this may cause the legs to fold!
22. Attach the Plastic Panel with Frame (#21) to the opposite table half using two Bolts (#A3) and two Washers (#A4) per
frame.See FIG. 7.
Now go back and tighten all the connections.
11
X 4
X 4
X 1
A4
A3
A9 Player
Center
6
5
A4
A3
A9
FIG. 7
Note: Center gap tolerance
approximately 10~13mm.
21
5
6
6
5
