Medal Sports WM.com1444126 User Manual
Page 10
www.themdsports.com
1444126
9
(Continúe en la siguiente página.)
(Continued on the next page.)
Español
English

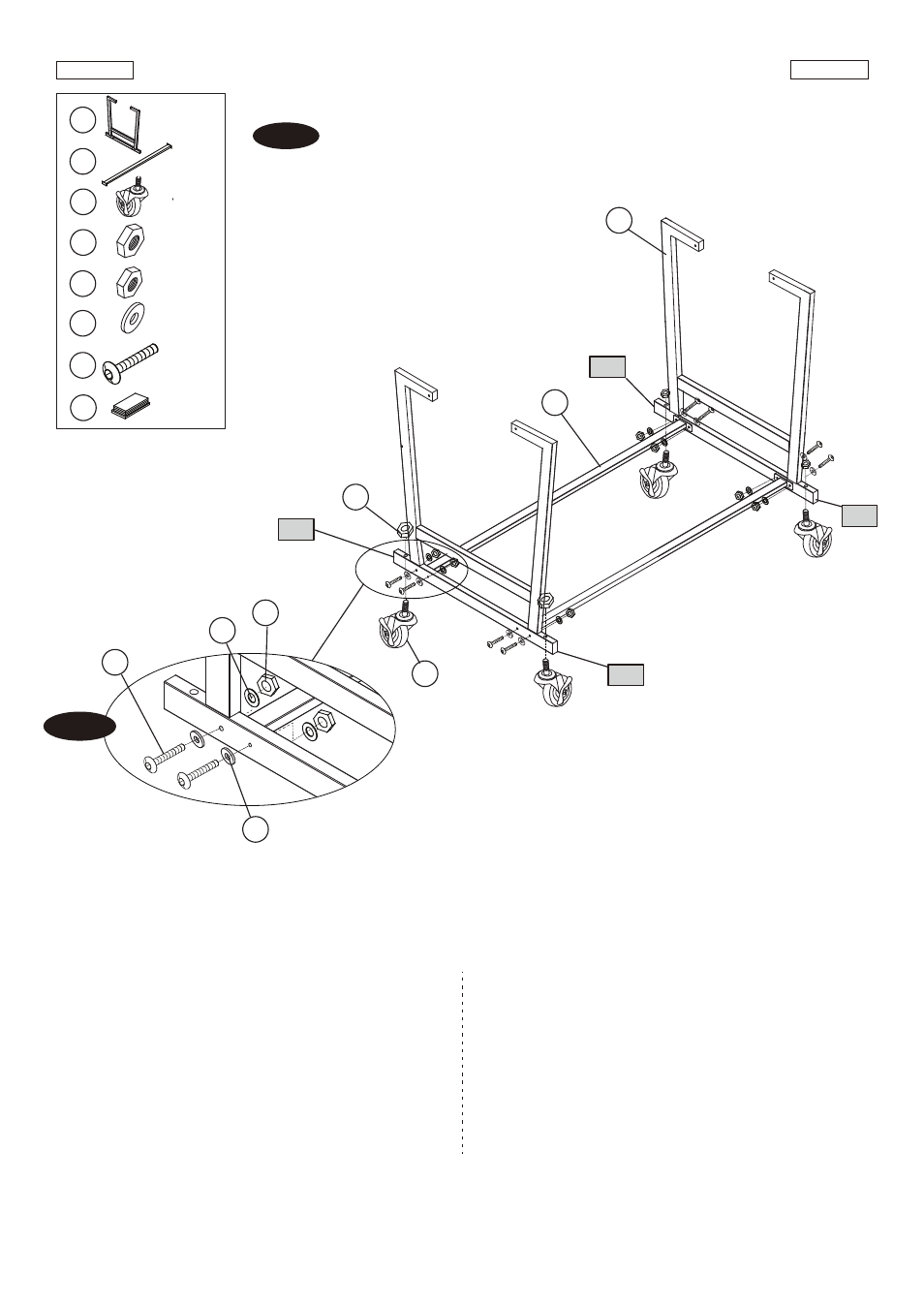

FIG.5
14. Attach a Bottom Support Tube (#6) to 2 Caster Frame
(#5) using four Bolts (#A7), eight Washers (#A4) and
four Nuts (#A3) per Bottom Support Tube
.
See FIG. 5A.
15. Attach a Caster with Lock (#15) to the Caster Frame
(#4) using one Nut (#16) per Caster with Lock.
See FIG. 5.
FIG.5
14. Adjunte el Tubo de Soporte del Fondo (#6) a los 2
Marcos de Ruedecita (#5) usando 4 Cerrojos
(#A7), 8 Arandelas (#A4) y 4 Tuercas (#A3) por
Tubo de Soporte del Fondo.
Vea la FIG. 5A.
15. Adjunte la Ruedecita con la Cerradura (#15) al
Marco de Ruedecita (#4) usando 1 Tuerca (#16)
por Ruedecita con Cerradura.
Vea la FIG. 5.
X 2
X 2
X 8
A3
A3
X 8
A7
A7
5
5
6
6
A4
X 16
A4
A4
15
16
16
15
X 4
X 4
X 4
P2
FIG. 5
FIG. 5A
P2
P2
P2
P2
