Medal Sports WM.com1444126 User Manual
Page 12
A4
A8
A3
A7
A5
X 16
X 4
X 8
X 4
X 4
X 8
A1
www.themdsports.com
1444126
11
(Continúe en la siguiente página.)
(Continued on the next page.)
Español
English

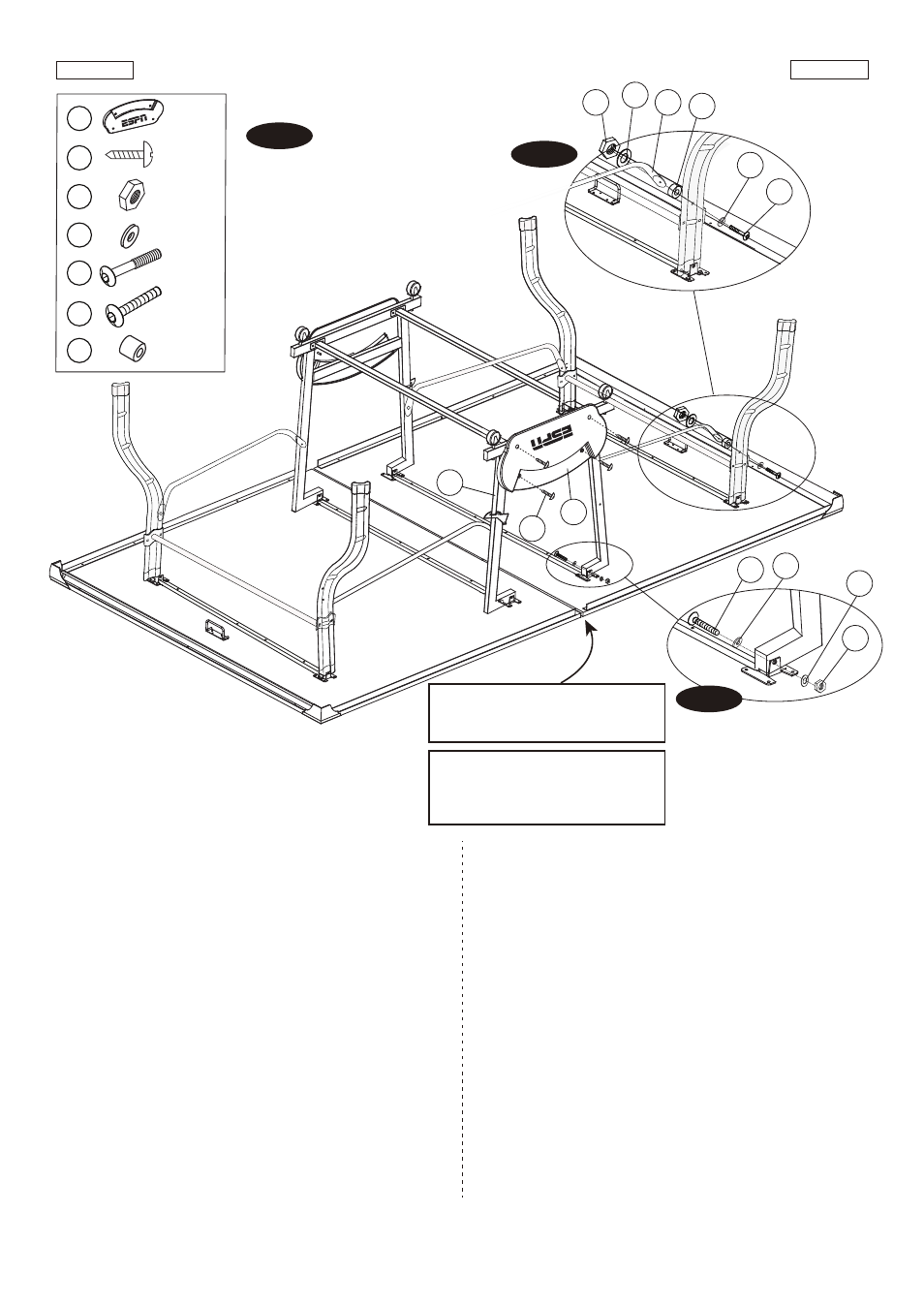

FIG.7
18. Turn over the pre-assembled Caster Frame
(see FIG. 6), then attach it to the table surface using
two Bolts (#A7), four Washers (#A4) and two Nuts
(#A3) per Table Surface.
See FIG. 7A.
Note: At least three adults are required to move
the table halves for safety.
19. Attach the Linkage Tube - A (#9) to the Legs (#3 & #4)
using one Bolt (#A5), two Washers (#A4), one Spacer
(#A8) and one Nut (#A3) per Linkage Tube - A.
See FIG. 7B.
20.
Repeat the steps for another table half.
21. Attach Plastic Panel (#21) to the Caster Frame (#5)
using four Screws (#A1) per frame.
See FIG. 7.
Now go back and tighten all connections.
Note:
Please leave approximately 10mm
distance between table centers.
Nota:
Por favor deje un espacio
aproximadamente de 10mm
entre los centros de mesa.
FIG.7
18. Coloque la superficie de mesa al Marco de Ruedecita
(pre-instalado, vea la FIG. 6). Luego adjunte la superficie
de mesa al Marco de Ruedecita usando 2 Cerrojos (#A7),
4 Arandelas (#A4) y 2 Tuercas (#A3) por Superficie de
Mesa.
Vea la FIG. 7A.
Nota: Por seguridad, se rquiere por lo menos 3
adultos para voltear la mitad de mesa.
19. Adjunte el Tubo de Conexión - A (#9) a la Piernas
(#3 & #4) usando 1 Cerrojo (#A5), 2 Arandelas (#A4), 1
Espaciador (#A8) y 1 Tuerca (#A3) por Tubo de
Conexión - A.
Vea la FIG. 7B.
20. Repita dichos pasos para la otra mitad de mesa.
21. Adjunte el Panel Plástico (#21) al Marco de Ruedecita (#5)
usando 4 Tornillos (#A1) por marco.
Vea la FIG. 7.
Ahora vuelva y aprete todas las conexiones.
X 2
21
FIG. 7
5
FIG. 7A
9
FIG. 7B
