ELX16-240 Basic Configuration
36 2003.09.06 (v 1.0) Rugged CCTV.

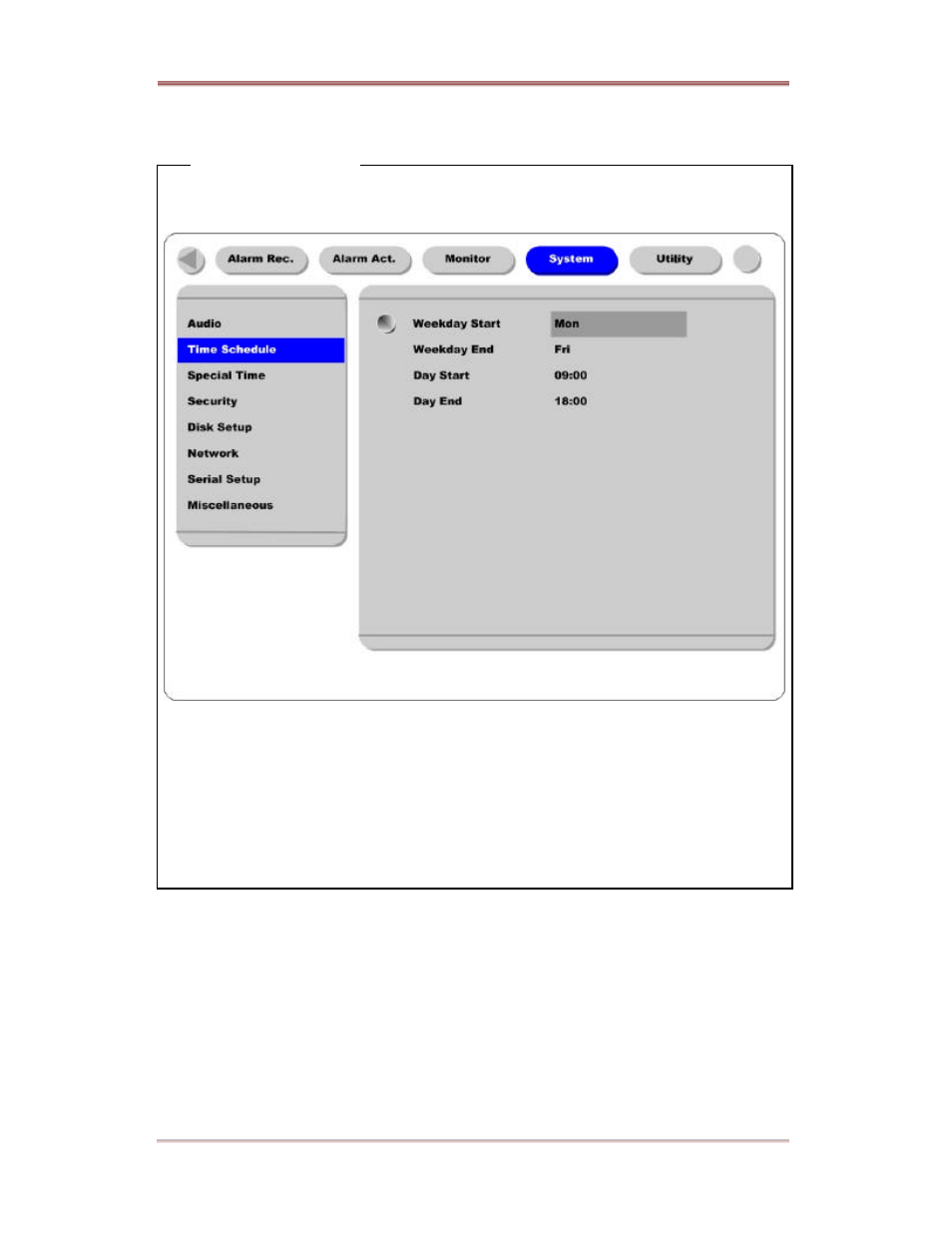

<Setting Time Schedule >
In order to set time schedule, move to “System ” menu.
Weekday Start/End
Press [ENTER] to access the Time Setting. Set the range for “Weekday ” between Monday and Sunday
using the or buttons. “Weekend” is set automatically based on “Weekday” range.
Day Start/End
Set the range for “Day” using the up/down buttons . The “Night ” range is set automatically based on
“Day” range .
Recording Speed/Quality
There are five conditions; No Rec./Low/Standard/High/Custom.
All conditions except “Custom” synchronize “Speed (ips)” and “Quality” automatically; “Low” setting is
1ips/Q5 ; “Standard” setting is 5ips/Q5; “High” setting is 15ips/Q5. When using the “Custom” setting,
Speed(ips) and Quality can be set separately.
