Use the mode switches (MODE SW) on the side panel to set the operation mode
of the VC-1-DL. By default, only switch 10 is set to [ON]. Before making any setting
changes, first set switch 10 to [OFF].

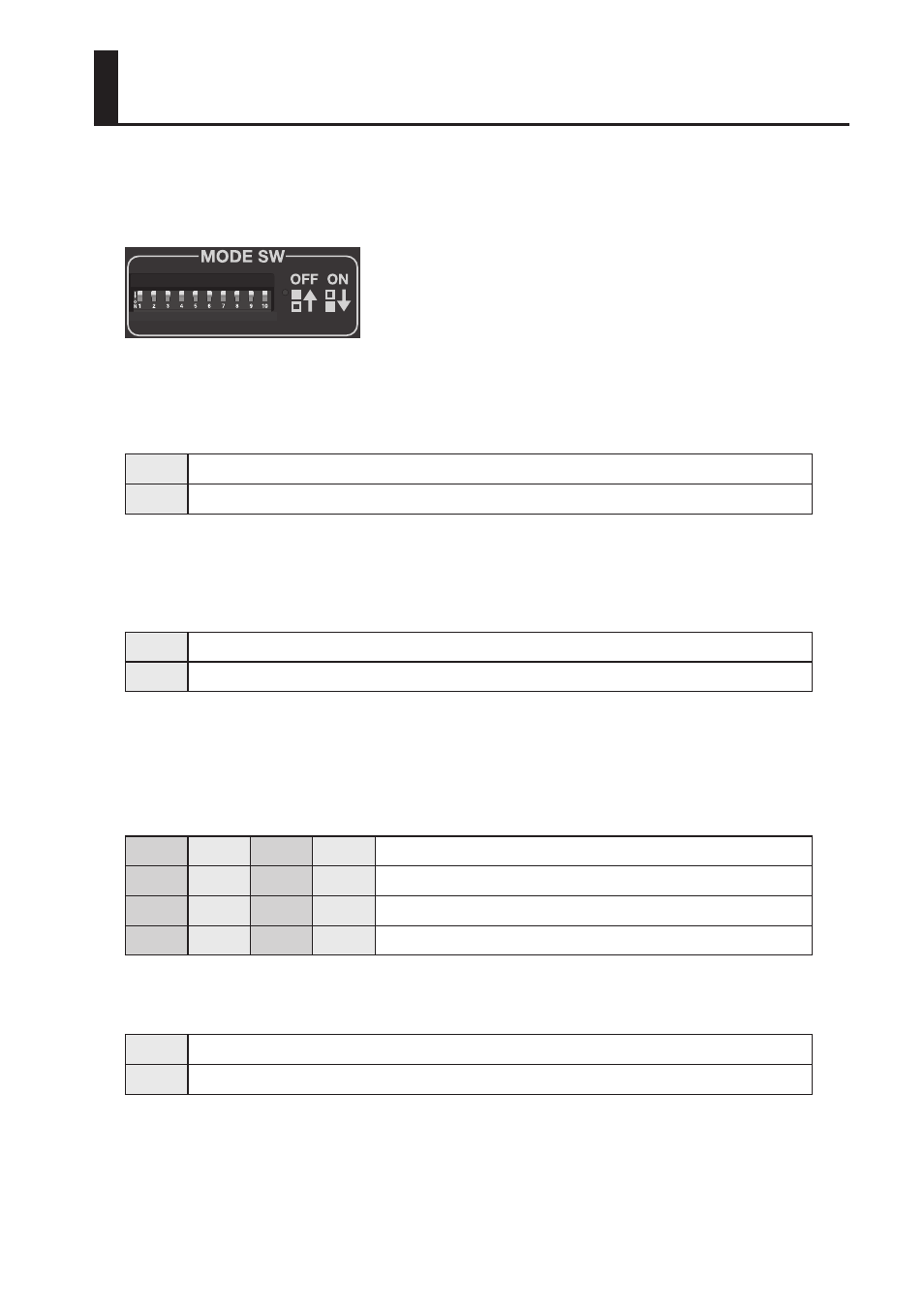

fig.MODE-SW.eps
Operating switches 1 through 10 makes the VC-1-DL operate as described below.
MODE SW 1
This specifies the type of audio input/output.
OFF
Analog audio is input/output.
ON
AES3 is input/output.
MODE SW 2
This specifies whether incoming signals from AUDIO IN are embedded in output
(SDI/HDMI).
OFF
Not embedded
ON
Embedded
MODE SW 3/4
This specifies the channels of SDI/HDMI output on which the audio inputs are
embedded. Combinations of 3 and 4 specify the channels for embedding as
described below.
3
OFF
4
OFF
Embedded on channels 1 and 2
3
ON
4
OFF
Embedded on channels 3 and 4
3
OFF
4
ON
Embedded on channels 5 and 6
3
ON
4
ON
Embedded on channels 7 and 8
MODE SW 5
This specifies the groups for embedding/de-embedding the SDI audio.
OFF
8 channels of Group 1 and Group 2
ON
8 channels of Group 3 and Group 4
Setting the Operation Mode
