27
It is not possible for the camera to focus on subjects at normal long ranges
when a close-up lens is in place-be sure to remove the close-up lens when
you again use the camera at normal ranges. Experimentation is recommended
to determine the best location of the camera for optimum results when using
the accessory close-up lenses. Set the "LED Control" parameter in the menu
to "Low" when using either close-up lens.
There are two ways to mount the NatureView HD Cam: using the provided
adjustable web belt, or the tripod socket.
1. Using the adjustable web belt: Fig. 5 illustrates using the web belt
on the NatureView HD Cam. Push one end of the belt through the two
brackets on the back of the NatureView HD Cam. Thread the end of the
strap through the buckle. Fasten the belt securely around the tree trunk by
pulling the end of the strap firmly so there is no slack left.
Note: it is not
possible to use a cable lock (in the upper part of the bracket) and the
web belt at the same time.
2. Using the tripod socket : The camera is equipped with a socket at the
bottom end to enable mounting on a tripod or other mounting accessories
with a standard1/4-20 thread.
Two optional mounting accessories, a “Bear Safe” metal camera box (Model#
119654C) and Deluxe Tree Bracket (Model# 119652C) are also available-
please see your Bushnell dealer or website for more details.
Sensing Angle and Distance Test
To test whether the NatureView HD Cam can effectively monitor the area
you choose, this test is recommended to check the sensing angle and
monitoring distance of the NatureView HD Cam. To perform the test:

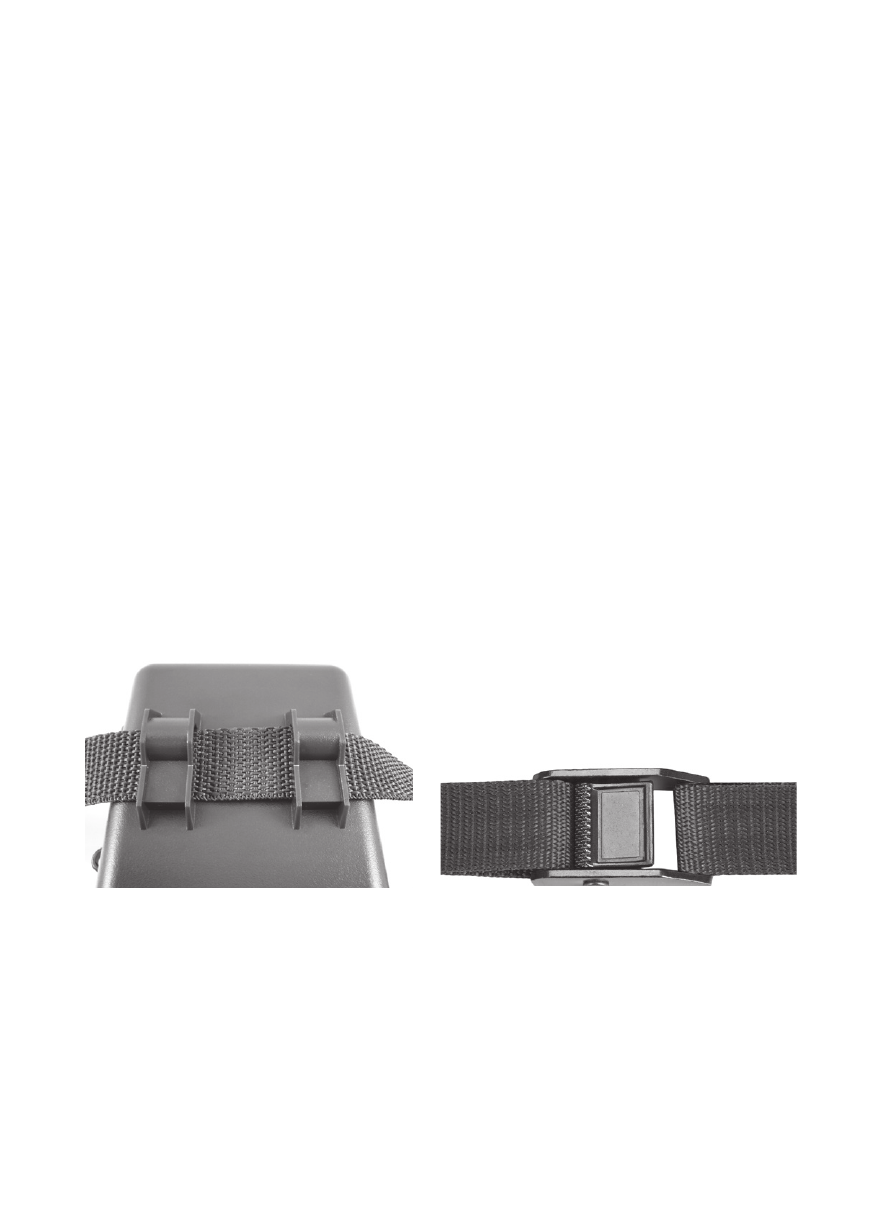

Fig. 5 : Attaching the Belt
Strap Buckle
